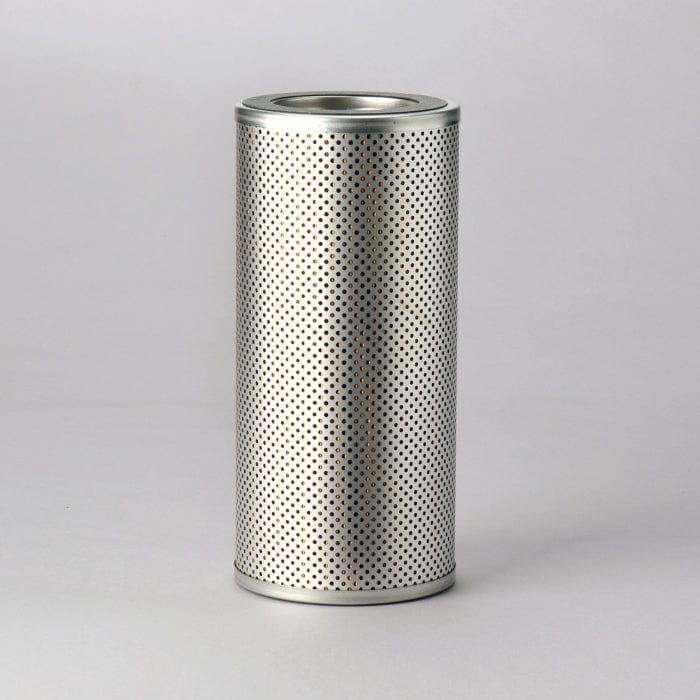

Hydraulic Filter, Cartridge - Donaldson P550575
Hydraulic Filter, Cartridge - Donaldson P550575
Regular price
Ā£34.78
Regular price
Sale price
Ā£34.78
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550575
Hydraulic Filter, Cartridge| Outer Diameter | 5.13 inch (130.3 mm) |
| Inner Diameter | 3.34 inch (84.8 mm) |
| Length | 11.06 inch (280.9 mm) |
| Efficiency Beta 2 | 12 micron |
| Style | Cartridge |
| Primary Application | CATERPILLAR 1R0774 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 130.3 mm (5.13 inch)
- Inner Diameter: 84.8 mm (3.34 inch)
- Length: 280.9 mm (11.06 inch)
- Efficiency Beta 2: 12 micron
- Style: Cartridge
- Primary Application: CATERPILLAR 1R0774
Packaged Dimensions
- Packaged Length: 0.140 m (5.60 inch)
- Packaged Width: 0.143 m (5.70 inch)
- Packaged Height: 0.313 m (12.50 inch)
- Packaged Weight: 1.022 kg (2.25 lb)
- Packaged Volume: 0.006 m3 (0.23 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421298090
- UPC Code: 742330142264
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 1R0774 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 120H | - | GRADER | 120 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 120K | - | GRADER | 120 SERIES | CATERPILLAR C7TA ACERT | - |
| CATERPILLAR 12H | - | GRADER | 12 SERIES | CATERPILLAR C6.6 | - |
| CATERPILLAR 12K | - | GRADER | 12 SERIES | CATERPILLAR C7-175 | - |
| CATERPILLAR 135H | - | GRADER | 135 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 140H | - | GRADER | 140 SERIES | CATERPILLAR C7-190 | - |
| CATERPILLAR 140K | - | GRADER | 140 SERIES | CATERPILLAR C7TA ACERT | - |
| CATERPILLAR 143H | - | GRADER | 140 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 14H | - | GRADER | 14 SERIES | CATERPILLAR 3306TA | - |
| CATERPILLAR 160H | - | GRADER | 160 SERIES | CATERPILLAR 3176TAA(C) | - |
| CATERPILLAR 160K | - | GRADER | 160 SERIES | CATERPILLAR C7 ACERT | - |
| CATERPILLAR 163H | - | GRADER | 160 SERIES | CATERPILLAR 3176TAA(C) | - |
| CATERPILLAR 16H | - | GRADER | 16 SERIES | CATERPILLAR 3406T | - |
| CATERPILLAR 24H | - | GRADER | 24 SERIES | CATERPILLAR 3412TAE1 | - |
| CATERPILLAR 426 | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 426 II | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 428 | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 428 II | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 436 | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 436 II | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 438 | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 438 II | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 446 | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3114 | - |
| CATERPILLAR 5110B | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3412B HEUI | - |
| CATERPILLAR 5130 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR 5130B | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR 5230 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 5230B | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 583T | - | PIPE LAYER | 500 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 787B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 789B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 789C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 793 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TA | - |
| CATERPILLAR 793B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 793C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 814B | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3306T | - |
| CATERPILLAR 815B | - | COMPACTOR | 800 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 815F | - | COMPACTOR | 800 SERIES | CATERPILLAR 3176C ATAAC | - |
| CATERPILLAR 816B | - | COMPACTOR | 800 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 816F | - | COMPACTOR | 800 SERIES | CATERPILLAR 3176C ATAAC | - |
| CATERPILLAR 824G | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3406TA | - |
| CATERPILLAR 824G II | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3406E ATAAC | - |
| CATERPILLAR 824H | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C15TA ACERT | - |
| CATERPILLAR 825C | - | COMPACTOR | 800 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR 825G | - | COMPACTOR | 800 SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR 825G II | - | COMPACTOR | 800 SERIES | CATERPILLAR 3406E ATAAC | - |
| CATERPILLAR 825H | - | COMPACTOR | 800 SERIES | CATERPILLAR C15 | - |
| CATERPILLAR 826C | - | COMPACTOR | 800 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR 826G | - | COMPACTOR | 800 SERIES | CATERPILLAR 3406 DITA | - |
| CATERPILLAR 826G II | - | COMPACTOR | 800 SERIES | CATERPILLAR 3406E ATAAC | - |
| CATERPILLAR 826H | - | COMPACTOR | 800 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 916 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 918F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3114 | - |
| CATERPILLAR 924F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3114T | - |
| CATERPILLAR 926 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204T | - |
| CATERPILLAR 928F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 938F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 938G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | - |
| CATERPILLAR 938G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126BTA1 | - |
| CATERPILLAR 943 | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 950B | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 950E | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 950F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 950F II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 953 | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 953B | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 953C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 960F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR 963 | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR 963B | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 963C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 966F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 966F II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 973 | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 973C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR 980C | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR 980F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR 980F II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3406C DIT | - |
| CATERPILLAR 980G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3408TAE | - |
| CATERPILLAR CP643 | - | COMPACTOR | CP SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR CP653 | - | COMPACTOR | CP SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR CS643 | - | COMPACTOR | CS SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR CS653 | - | COMPACTOR | CS SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D7H II LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7H II XR | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7H LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7H XR | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D9R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3408E | - |
| CATERPILLAR D9T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR G916 | - | LOADER WHEELED | G SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT18B | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT18F | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3114 DIT | - |
| CATERPILLAR IT24F | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3114 DIT | - |
| CATERPILLAR IT28 | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT28B | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT28F | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3116 DIT | - |
| CATERPILLAR IT38F | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR IT38G | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3126 DITA | - |
| CATERPILLAR IT38G II | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3126B ATAAC | - |
| CATERPILLAR PL83 | - | PIPE LAYER | PL SERIES | CATERPILLAR C15 ACERT | - |
