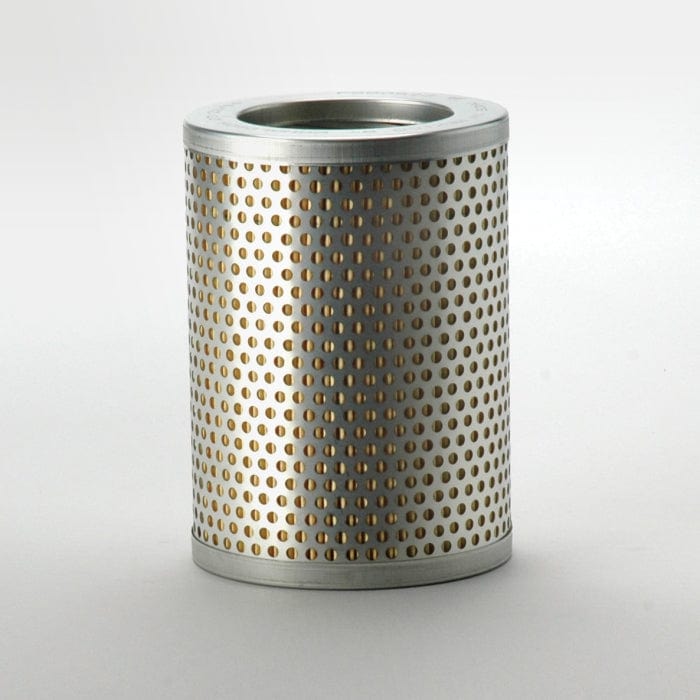

Hydraulic Filter, Cartridge - Donaldson P550523
Hydraulic Filter, Cartridge - Donaldson P550523
Regular price
Ā£30.40
Regular price
Sale price
Ā£30.40
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550523
Hydraulic Filter, Cartridge| Outer Diameter | 5.07 inch (128.8 mm) |
| Inner Diameter | 3.35 inch (85.1 mm) |
| Length | 6.88 inch (174.8 mm) |
| Efficiency Beta 2 | 9 micron |
| Efficiency Beta 1000 | 26 micron |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
| Primary Application | CATERPILLAR 4T0522 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 128.8 mm (5.07 inch)
- Inner Diameter: 85.1 mm (3.35 inch)
- Length: 174.8 mm (6.88 inch)
- Efficiency Beta 2: 9 micron
- Efficiency Beta 1000: 26 micron
- Collapse Burst: 6.9 bar (100 psi)
- Style: Cartridge
- Media Type: Cellulose
- Primary Application: CATERPILLAR 4T0522
Packaged Dimensions
- Packaged Length: 0.148 m (5.91 inch)
- Packaged Width: 0.148 m (5.91 inch)
- Packaged Height: 0.207 m (8.27 inch)
- Packaged Weight: 1.060 kg (2.34 lb)
- Packaged Volume: 0.005 m3 (0.17 ft3)
Other Information
- Country of Origin: Italy
- HTS Code: 84212980 90
- UPC Code: 742330042601
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF2220 | |
| AMERICAN MOTORS CORPORATION | SFH0735 | |
| AMERICAN PARTS | 92204 | |
| BIG A | 92204 | |
| CATERPILLAR | 4T522 | |
| CATERPILLAR | 1R0736 | |
| CATERPILLAR | 1R0735 | |
| CATERPILLAR | 4T0522 | |
| CATERPILLAR | 4T0523 | |
| CATERPILLAR | 1R0777 | |
| EXMAN | SFH0735 | |
| FORD | 9576P550523 | |
| HITACHI | L689 | |
| KRALINATOR | L689 | |
| LOCKHEED | 574090 | |
| LOESING | 25114 | |
| LOESING | 025114 | |
| MASSEY FERGUSON | 3621298M1 | |
| TIM | 4T0523 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688500 | |
| VMC | HF550523 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 416 | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 416 II | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 436 | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 436 II | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 438 | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 438 II | - | BACKHOE LOADER | 400 SERIES | PERKINS 4.236 | - |
| CATERPILLAR 446 | - | BACKHOE LOADER | 400 SERIES | CATERPILLAR 3114 | - |
| CATERPILLAR 5130 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR 515 | - | SKIDDER | - | CATERPILLAR 3304 | - |
| CATERPILLAR 5230 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 525B | - | SKIDDER | - | CATERPILLAR 3126 | - |
| CATERPILLAR 527 | - | SKIDDER | - | CATERPILLAR 3304 | - |
| CATERPILLAR 535B | - | SKIDDER | - | CATERPILLAR 3126 | - |
| CATERPILLAR 545 | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3306 | - |
| CATERPILLAR 545 | - | FORESTRY EQUIPMENT | - | - 545 | - |
| CATERPILLAR 910E | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR 910F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3114T | - |
| CATERPILLAR D10N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3412 | - |
| CATERPILLAR D10R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3412E | - |
| CATERPILLAR D5H | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D5H II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D5H LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D5H XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3304 | - |
| CATERPILLAR D6H | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II XR | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6M LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR D6M XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR D8R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR D9R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3408E | - |
| CATERPILLAR IT12F | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3204 | - |
| CATERPILLAR IT14B | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3114T | - |
