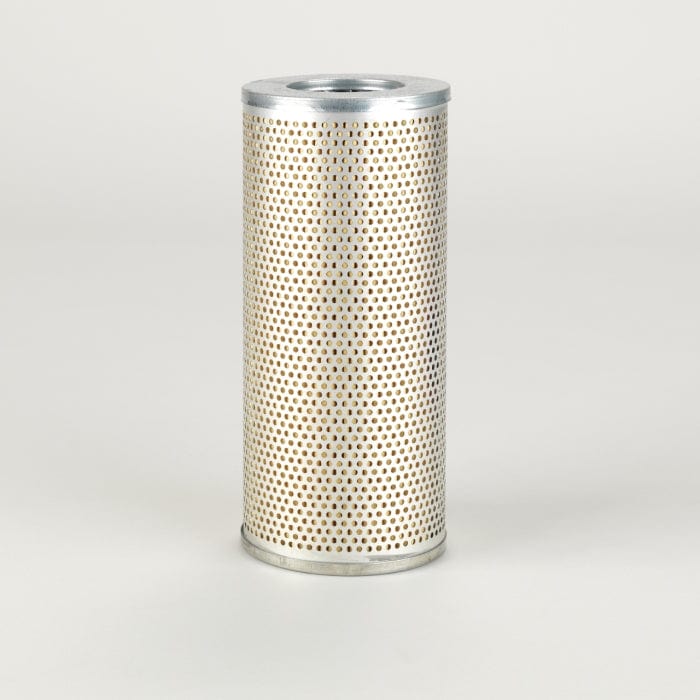

Hydraulic Filter, Cartridge - Donaldson P550284
Hydraulic Filter, Cartridge - Donaldson P550284
Regular price
Ā£50.58
Regular price
Sale price
Ā£50.58
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550284
Hydraulic Filter, Cartridge| Outer Diameter | 3.99 inch (101.35 mm) |
| Inner Diameter | 2.23 inch (56.64 mm) |
| Length | 8.96 inch (227.58 mm) |
| Efficiency Beta 2 | 9 micron |
| Efficiency Beta 1000 | 26 micron |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 101.35 mm (3.99 inch)
- Inner Diameter: 56.64 mm (2.23 inch)
- Length: 227.58 mm (8.96 inch)
- Efficiency Beta 2: 9 micron
- Efficiency Beta 1000: 26 micron
- Collapse Burst: 6.9 bar (100 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.113 m (4.50 inch)
- Packaged Width: 0.113 m (4.50 inch)
- Packaged Height: 0.243 m (9.70 inch)
- Packaged Weight: 0.613 kg (1.35 lb)
- Packaged Volume: 0.003 m3 (0.11 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-07
- HTS Code: 8421298090
- UPC Code: 742330042045
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 3I1746 | |
| VICKERS | 404210 | |
| VMC | HF550284 |
