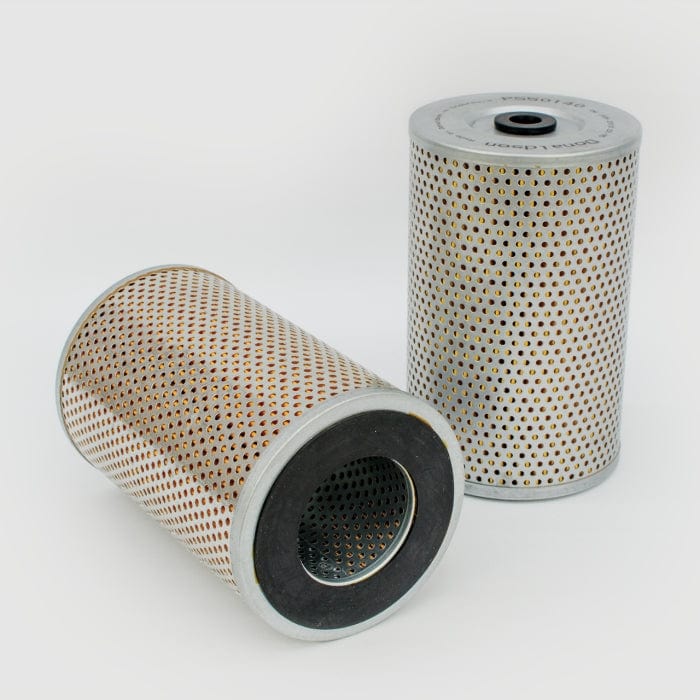

Hydraulic Filter, Cartridge - Donaldson P550140
Hydraulic Filter, Cartridge - Donaldson P550140
Regular price
Ā£14.24
Regular price
Sale price
Ā£14.24
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550140
Hydraulic Filter, Cartridge| Outer Diameter | 4.49 inch (114.1 mm) |
| Inner Diameter | 2.30 inch (58.4 mm) |
| Length | 7.04 inch (178.8 mm) |
| Efficiency Beta 2 | 17 micron |
| Collapse Burst | 175 psi (12.1 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
| Primary Application | CASE/CASE IH 612713C91 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 114.1 mm (4.49 inch)
- Inner Diameter: 58.4 mm (2.30 inch)
- Length: 178.8 mm (7.04 inch)
- Efficiency Beta 2: 17 micron
- Collapse Burst: 12.1 bar (175 psi)
- Style: Cartridge
- Media Type: Cellulose
- Primary Application: CASE/CASE IH 612713C91
Packaged Dimensions
- Packaged Length: 0.112 m (4.49 inch)
- Packaged Width: 0.112 m (4.49 inch)
- Packaged Height: 0.193 m (7.70 inch)
- Packaged Weight: 0.538 kg (1.19 lb)
- Packaged Volume: 0.002 m3 (0.09 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330041123
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| A P PARTS | 2089 | |
| AC DELCO | PF439 | |
| AC DELCO | P372 | |
| AMERICAN PARTS | 773 | |
| AMERICAN PARTS | 696 | |
| AMERICAN PARTS | 889 | |
| AMERICAN PARTS | 92476 | |
| AMERICAN PARTS | 92468 | |
| AMERICAN PARTS | 92472 | |
| AMERICAN PARTS | 2114 | |
| ATLAS COPCO | CW251MP | |
| AUSTIN-WESTERN | AW503718 | |
| BARBER-GREENE | 228468 | |
| BIG A | 889 | |
| BIG A | 92472 | |
| BIG A | 92468 | |
| BIG A | 92476 | |
| BIG A | 773 | |
| BRIGGS & STRATTON | E60045 | |
| CASE/CASE IH | E063838 | |
| CASE/CASE IH | A43702 | |
| CASE/CASE IH | A66483 | |
| CASE/CASE IH | 381256R92 | |
| CASE/CASE IH | 381256R91 | |
| CASE/CASE IH | A63358 | |
| CASE/CASE IH | 227082R92 | |
| CASE/CASE IH | 227082R91 | |
| CASE/CASE IH | 227083R92 | |
| CASE/CASE IH | 227083R91 | |
| CASE/CASE IH | 612713C92 | |
| CASE/CASE IH | 612713C91 | |
| CASE/CASE IH | 347944R91 | |
| CATERPILLAR | 3I1596 | |
| CATERPILLAR | 636083 | |
| CATERPILLAR | 0636083 | |
| CESSNA | F100 | |
| CHAMP | P468 | |
| CLARK | 887764 | |
| CLARK | AW503718 | |
| CLARK,J.L. | AW503718 | |
| COOP | P345 | |
| COOPERS | AZH029 | |
| CROSLAND | 588 | |
| CYCLONE | PM345 | |
| DRESSER | 612713C92 | |
| DRESSER | 612713C91 | |
| DRESSER | 381256R92 | |
| DRESSER | 381256R91 | |
| DRESSER | 347944R91 | |
| DYNAHOE | 1008532 | |
| DYNAHOE | 100853 | |
| DYNAHOE | 40209P | |
| EATON | 6951327 | |
| EIMCO | 69016209 | |
| EIMCO | 16M32012 | |
| EIMCO | 69033511 | |
| EUCLID | 7351607 | |
| FINN EQUIPMENT | FFP76 | |
| FLOW EZY | PL5072510 | |
| FLOW EZY | PL5071010 | |
| FORD | 9576P550140 | |
| FRANKLIN | 228468 | |
| FREIGHTLINER | DNP550140 | |
| FURUKAWA | 612713C91 | |
| FURUKAWA | 347944R91 | |
| GOULD | P345 | |
| GRADALL | 76105893 | |
| GRADALL | H105893 | |
| GROVE | 9437100014 | |
| GUD | G605 | |
| HUTCHENS | SF137 | |
| INGERSOLL RAND | 59681635 | |
| INTERNATIONAL | 619692C91 | |
| INTERNATIONAL | 347944R91 | |
| INTERNATIONAL | 612713C91 | |
| INTERNATIONAL | 381756R91 | |
| INTERNATIONAL | 612713R92 | |
| INTERNATIONAL | 612713C92 | |
| INTERNATIONAL | 912713C92 | |
| INTERNATIONAL | 381256R92 | |
| INTERNATIONAL | 381264R91 | |
| INTERNATIONAL | 331031 | |
| INTERNATIONAL | 381256R91 | |
| INTERNATIONAL | 659130C93 | |
| INTERNATIONAL | 380256R91 | |
| KOMATSU | 381256R91 | |
| KOMATSU | 381256R92 | |
| KRALINATOR | L968 | |
| LEE ENGINEERING | LR137 | |
| LETOURNEAU | 922789 | |
| LETOURNEAU | 923070 | |
| LETOURNEAU | 122BSHC | |
| LETOURNEAU | 228468 | |
| LEYLAND-DAF (LDV) | 503718 | |
| LOCKHEED | APH3180A | |
| LOCKHEED | APH3181A | |
| LPM | 13505468 | |
| LPM | 00013505468 | |
| MANITOWOC | 427073 | |
| MASSEY FERGUSON | 381256R92 | |
| MASTE | D166 | |
| MCCORMICK | A63358 | |
| MCCORMICK | MC381256R92 | |
| MCCORMICK | E063838 | |
| P & H | 1045Z324 | |
| P & H | 221046Z82 | |
| P & H | 228468 | |
| P & H | 221046Z81 | |
| P & H | 923070 | |
| P.B.R. | AC3025 | |
| PACCAR | E60045 | |
| PACCAR | 162651 | |
| PERRY | PL468 | |
| REFILCO | PL507103 | |
| REFILCO | PL5071010 | |
| REFILCO | 213445M | |
| RICHIER | 568097001 | |
| ROMAN | HD468 | |
| ROVER | 503718 | |
| RUSTON BUCYRUS | 228468 | |
| RUSTON BUCYRUS | 100853 | |
| STAY READY | SRPIH5 | |
| TAMROCK | 64105650 | |
| TOWMOTOR | 626083 | |
| TOWMOTOR | 677697 | |
| UNIPART | 503718 | |
| UNIT RIG EQUIPMENT | 947638 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688304 | |
| VICKERS | 923118 | |
| VICKERS | 947368 | |
| VICKERS | OFM300 | |
| VICKERS | OFM202 | |
| VICKERS | OFM200 | |
| VICKERS | 270566 | |
| VICKERS | 228468 | |
| VICKERS | 291326 | |
| VICKERS | 919414 | |
| VICKERS | 922989 | |
| VICKERS | 922789 | |
| VICKERS | 923117 | |
| VICKERS | 923070 | |
| VMC | LF550140 | |
| VMC | HF550140 | |
| VME | 7351607 | |
| VOLVO | 73516072 | |
| VOLVO | 7351607 | |
| WABCO | 923070 | |
| WABCO | 122BSHC | |
| WARNER & SWASEY | 76105893 | |
| WARNER & SWASEY | H105893 | |
| WGB | S122CP | |
| WINSLOW | WIH840 | |
| WINSLOW | WIH840P | |
| WINSLOW | CLIH840 | |
| YALE | 6951327 |
