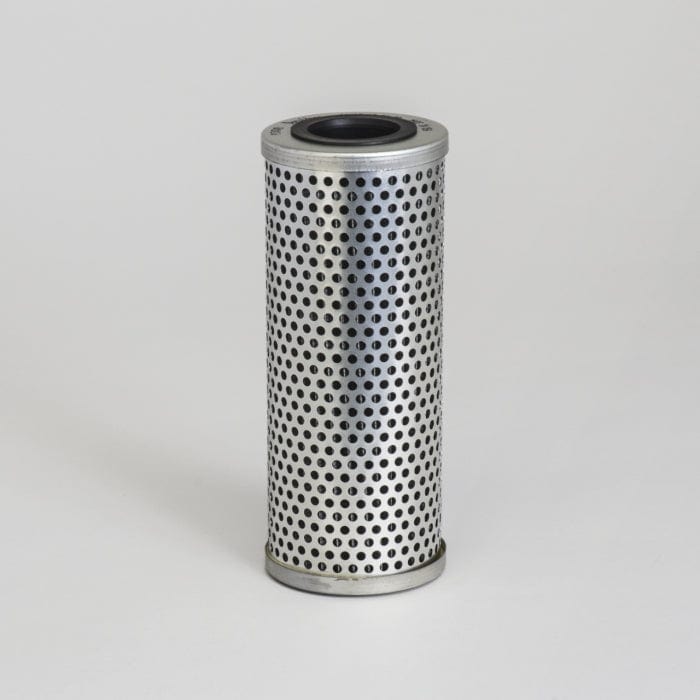

Hydraulic Filter, Cartridge - Donaldson P174749

Attributes

• Mesh Rating: 45 micron
• Outer Diameter: 93.47 mm (3.68 inch)
• Inner Diameter: 44.45 mm (1.75 inch)
• Length: 228.6 mm (9.00 inch)
• Efficiency Beta 2: 45 micron
• Collapse Burst: 6.9 bar (100 psi)
• Style: Cartridge
• Media Type: Wire Mesh

Packaged Dimensions

• Packaged Length: 0.108 m (4.30 inch)
• Packaged Width: 0.118 m (4.70 inch)
• Packaged Height: 0.250 m (10.00 inch)
• Packaged Weight: 0.499 kg (1.10 lb)
• Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330081358
