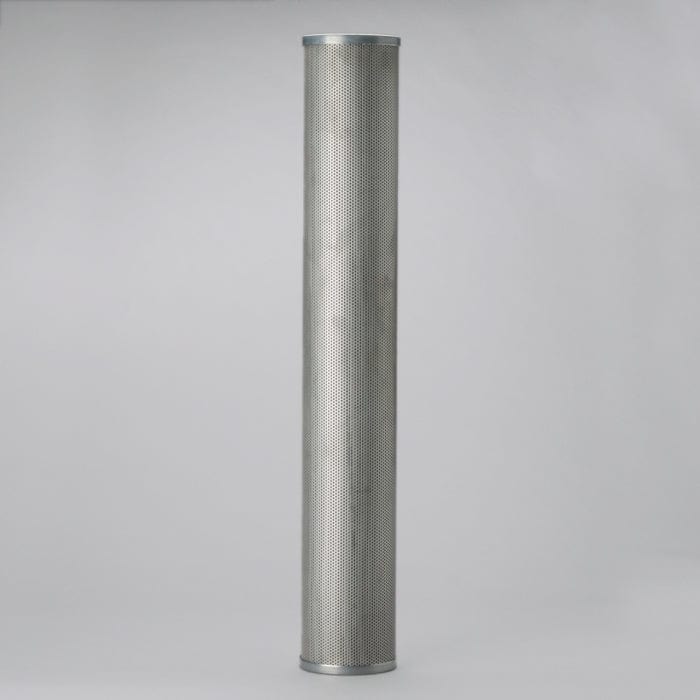

Hydraulic Filter, Cartridge - Donaldson P173097
Hydraulic Filter, Cartridge - Donaldson P173097
Regular price
£70.36
Regular price
Sale price
£70.36
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P173097
Hydraulic Filter, Cartridge| Outer Diameter | 4.96 inch (126 mm) |
| Inner Diameter | 3.62 inch (92 mm) |
| Length | 15.35 inch (390 mm) |
| Efficiency Beta 1000 | 23 micron |
| Collapse Burst | 145 psi (10 bar) |
| Style | Cartridge |
| Media Type | Synthetic |
| Primary Application | EUCLID 11026936 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 126 mm (4.96 inch)
- Inner Diameter: 92 mm (3.62 inch)
- Length: 390 mm (15.35 inch)
- Efficiency Beta 1000: 23 micron
- Collapse Burst: 10 bar (145 psi)
- Style: Cartridge
- Media Type: Synthetic
- Primary Application: EUCLID 11026936
Packaged Dimensions
- Packaged Length: 0.145 m (5.80 inch)
- Packaged Width: 0.145 m (5.80 inch)
- Packaged Height: 0.413 m (16.50 inch)
- Packaged Weight: 1.740 kg (3.84 lb)
- Packaged Volume: 0.009 m3 (0.32 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-05
- HTS Code: 8421298090
- UPC Code: 742330121580
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| EUCLID | 110269362 | |
| EUCLID | 11026936 | |
| MP FILTRI | MR6303A25A | |
| NEW HOLLAND | 76071001 | |
| PONSSE | 0072053 | |
| VMC | HF173097 | |
| VME | 11026936 | |
| VME | 110269362 | |
| VOLVO | 110269362 | |
| VOLVO | 11445028 | |
| VOLVO | 11026936 | |
| VOLVO | 11026935 | |
| VOLVO | VOE11026936 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| VOLVO CONSTRUCTION EQUIPMENT L150C | - | LOADER WHEELED | L SERIES | VOLVO THD102 | - |
| VOLVO CONSTRUCTION EQUIPMENT L150D | - | LOADER WHEELED | L SERIES | VOLVO TD101 | - |
| VOLVO CONSTRUCTION EQUIPMENT L150E | - | LOADER WHEELED | L SERIES | VOLVO D12D340 | - |
| VOLVO CONSTRUCTION EQUIPMENT L180C | - | LOADER WHEELED | L SERIES | VOLVO TD122 | - |
| VOLVO CONSTRUCTION EQUIPMENT L180D | - | LOADER WHEELED | L SERIES | VOLVO TD122 | - |
| VOLVO CONSTRUCTION EQUIPMENT L180E | - | LOADER WHEELED | L SERIES | VOLVO D12C380 | - |
| VOLVO CONSTRUCTION EQUIPMENT L220D | - | LOADER WHEELED | L SERIES | VOLVO TD122 | - |
| VOLVO CONSTRUCTION EQUIPMENT L220E | - | LOADER WHEELED | L SERIES | VOLVO D12C380 | - |
| VOLVO CONSTRUCTION EQUIPMENT L330C | - | LOADER WHEELED | L SERIES | VOLVO TD162 | - |
| VOLVO CONSTRUCTION EQUIPMENT L330D | - | LOADER WHEELED | L SERIES | VOLVO TWD163 | - |
| VOLVO CONSTRUCTION EQUIPMENT L330E | - | LOADER WHEELED | L SERIES | VOLVO D16A520 | - |
