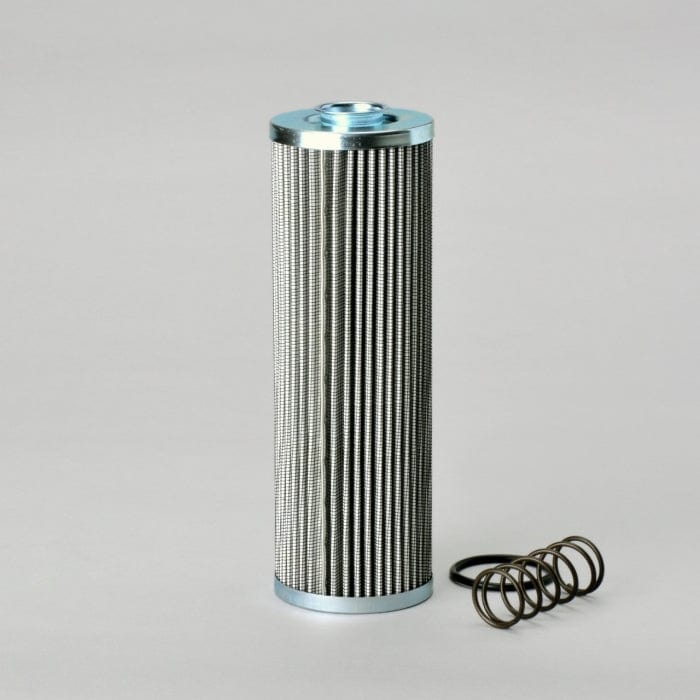

Hydraulic Filter, Cartridge - Donaldson P171843
Hydraulic Filter, Cartridge - Donaldson P171843
Regular price
£28.18
Regular price
Sale price
£28.18
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P171843
Hydraulic Filter, Cartridge| Outer Diameter | 2.76 inch (70 mm) |
| Inner Diameter | 1.65 inch (42 mm) |
| Length | 8.27 inch (210 mm) |
| Efficiency Beta 2 | 7 micron |
| Efficiency Beta 1000 | 23 micron |
| Collapse Burst | 145 psi (10 bar) |
| Style | Cartridge |
| Series | FIK |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 70 mm (2.76 inch)
- Inner Diameter: 42 mm (1.65 inch)
- Length: 210 mm (8.27 inch)
- Efficiency Beta 2: 7 micron
- Efficiency Beta 1000: 23 micron
- Collapse Burst: 10 bar (145 psi)
- Style: Cartridge
- Series: FIK
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.083 m (3.30 inch)
- Packaged Width: 0.083 m (3.30 inch)
- Packaged Height: 0.098 m (3.90 inch)
- Packaged Weight: 0.318 kg (0.70 lb)
- Packaged Volume: 0.001 m3 (0.02 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-09
- HTS Code: 8421298090
- UPC Code: 742330107867
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| F.B.O. | CR15003 | |
| LAVERDA | 3227366500 | |
| MASSEY FERGUSON | LA322736650 | |
| MASSEY FERGUSON | LA323550650 | |
| MP FILTRI | MF1003A25HBP01 | |
| MP FILTRI | MF1003A25HB | |
| NEW HOLLAND | 322736650 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| MASSEY FERGUSON MF7244 | - | COMBINE | MF 7200 SERIES | IVECO NEF | - |
| MASSEY FERGUSON MF7245 ACTIVA | - | COMBINE | MF 7200 SERIES | IVECO NEF | - |
| MASSEY FERGUSON MF7246 ACTIVA | - | COMBINE | MF 7200 SERIES | IVECO NEF | - |
| MASSEY FERGUSON MF7260 | - | COMBINE | MF 7200 SERIES | SISU 74CTA-4V | - |
| MASSEY FERGUSON MF7260 | - | COMBINE | MF 7200 SERIES | SISU 74ETA | - |
| MASSEY FERGUSON MF7270 | - | COMBINE | MF 7200 SERIES | SISU 84CTA | - |
| MASSEY FERGUSON MF7270 | - | COMBINE | MF 7200 SERIES | SISU 84ETA | - |
| MCCORMICK TELETRAC | - | TRACTOR | - | SISU 44CWA-2V | - |
