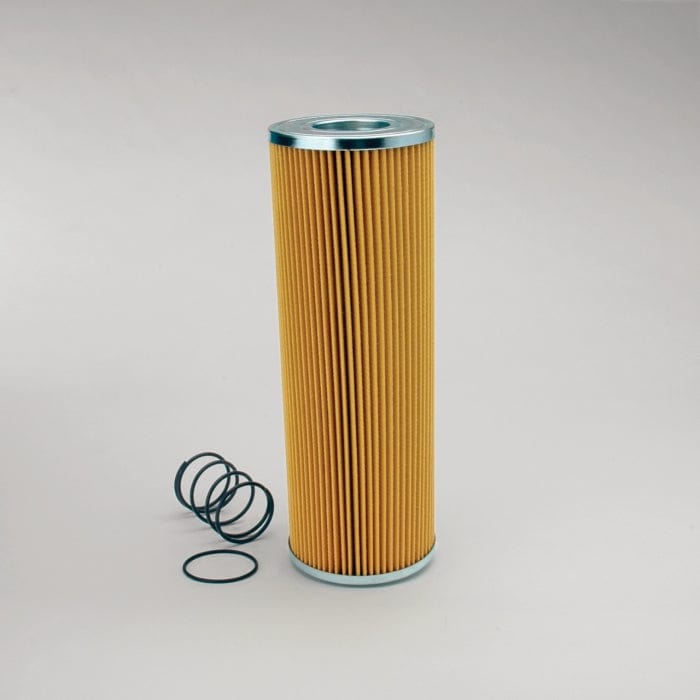

Hydraulic Filter, Cartridge - Donaldson P171582

Attributes

• Outer Diameter: 140 mm (5.51 inch)
• Inner Diameter: 65 mm (2.56 inch)
• Length: 400 mm (15.75 inch)
• Efficiency Beta 2: 27 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.5 bar (22 psi)
• Collapse Burst: 10 bar (145 psi)
• Style: Cartridge
• Series: FIK
• Media Type: Cellulose

Packaged Dimensions

• Packaged Length: 0.148 m (5.90 inch)
• Packaged Width: 0.143 m (5.70 inch)
• Packaged Height: 0.415 m (16.60 inch)
• Packaged Weight: 1.633 kg (3.60 lb)
• Packaged Volume: 0.009 m3 (0.32 ft3)

Other Information

• Country of Origin: Italy
• NMFC Code: 069100-05
• HTS Code: 8421298090
• UPC Code: 742330083864
