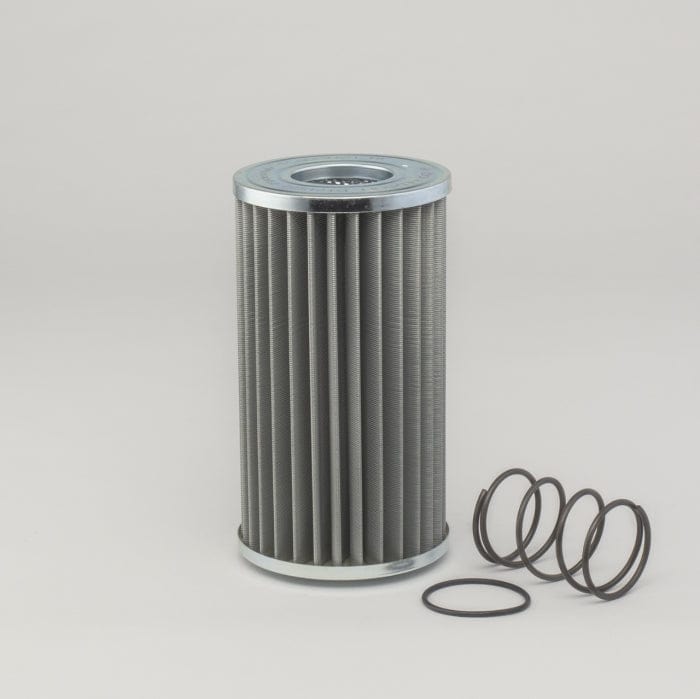

Hydraulic Filter, Cartridge - Donaldson P171572

Attributes

• Mesh Rating: 90 micron
• Outer Diameter: 140 mm (5.51 inch)
• Inner Diameter: 65 mm (2.56 inch)
• Length: 250 mm (9.84 inch)
• Efficiency Beta 2: 90 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.5 bar (22 psi)
• Collapse Burst: 10 bar (145 psi)
• Style: Cartridge
• Series: FIK
• Media Type: Wire Mesh

Packaged Dimensions

• Packaged Length: 0.148 m (5.91 inch)
• Packaged Width: 0.148 m (5.91 inch)
• Packaged Height: 0.276 m (11.02 inch)
• Packaged Weight: 1.810 kg (3.99 lb)
• Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

• Country of Origin: Italy
• NMFC Code: 069100-09
• HTS Code: 8421298090
• UPC Code: 742330022153
