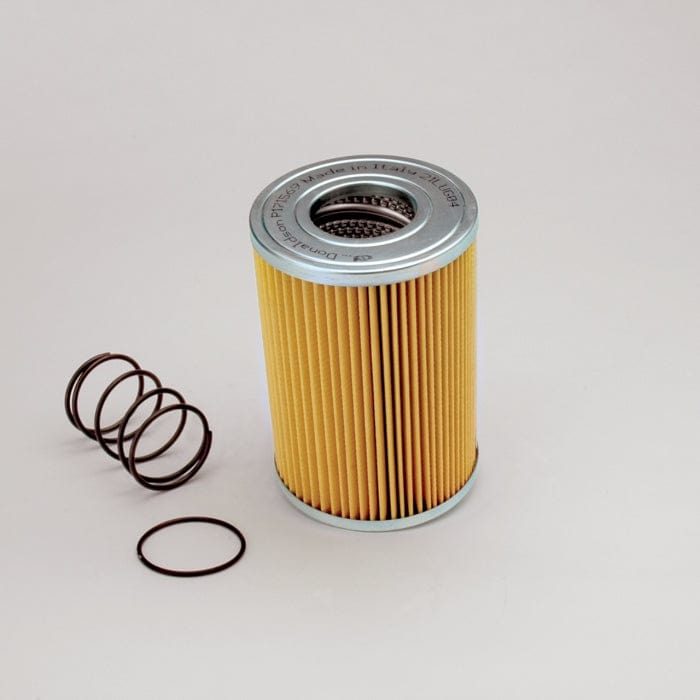

Hydraulic Filter, Cartridge - Donaldson P171569
Hydraulic Filter, Cartridge - Donaldson P171569
Regular price
£32.36
Regular price
Sale price
£32.36
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P171569
Hydraulic Filter, CartridgeShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 140 mm (5.51 inch)
- Inner Diameter: 65.5 mm (2.58 inch)
- Length: 203 mm (7.99 inch)
- Efficiency Beta 2: 7 micron
- Efficiency Beta 1000: 23 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.5 bar (22 psi)
- Collapse Burst: 10 bar (145 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.145 m (5.80 inch)
- Packaged Width: 0.143 m (5.70 inch)
- Packaged Height: 0.275 m (11.00 inch)
- Packaged Weight: 1.202 kg (2.65 lb)
- Packaged Volume: 0.006 m3 (0.21 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330022122
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | Z82178 | |
| CORMACH | 8140098 | |
| DMIC | D10500AN | |
| DMIC | DME6A | |
| DMIC | DTE6A | |
| F.B.O. | CR5001 | |
| FIAT | 71314572 | |
| FIAT | 45017745 | |
| FIATALLIS | 71314572 | |
| HITACHI | 1930707 | |
| HITACHI | L01930707 | |
| HITACHI | 71314572 | |
| LHA | TIE102 | |
| LIEBHERR | 510665208 | |
| LOESING | 140056 | |
| MCCORMICK | Z82178 | |
| NEW HOLLAND | 1930707 | |
| ORENSTEIN & KOPPEL | 8200199 | |
| SAUER SUNDSTRAND | SQC00054 | |
| SAUER SUNDSTRAND | 1612999 | |
| SAUER SUNDSTRAND | 1511029 | |
| TECNO COMP | TE835 | |
| VENIERI | 1002036 | |
| WALGAHN-MOTORENTECHN | 890012 | |
| WALGAHN-MOTORENTECHN | 00890012 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| FIAT FB7 | - | TRACTOR TRACKED | - | FIAT 8045 | - |
| FIAT FE12 | - | EXCAVATOR TRACKED | - | FIAT 8045 | - |
| FIAT FE12LC | - | EXCAVATOR TRACKED | - | FIAT 8045 | - |
| FIAT FE12R | - | EXCAVATOR TRACKED | - | FIAT 8045 | - |
| FIAT FE14 | - | EXCAVATOR TRACKED | - | FIAT 8065 | - |
| FIAT FE16 | - | EXCAVATOR TRACKED | - | FIAT 8065 | - |
| FIAT FE18 | - | EXCAVATOR TRACKED | - | - FE18 | - |
| FIAT FE18LC | - | EXCAVATOR TRACKED | - | - FE18LC | - |
| FIAT FE18R | - | EXCAVATOR TRACKED | - | - FE18R | - |
| FIAT FE18RM | - | EXCAVATOR TRACKED | - | - FE18RM | - |
| FIAT FE28 | - | EXCAVATOR TRACKED | - | FIAT 8365 | - |
| FIAT FE28HD | - | EXCAVATOR TRACKED | - | FIAT 8365 | - |
| FIAT FE28LC | - | EXCAVATOR TRACKED | - | FIAT 8365 | - |
| FIAT FE28M | - | EXCAVATOR TRACKED | - | FIAT 8365 | - |
| FIAT FE28MHD | - | EXCAVATOR TRACKED | - | FIAT 8365 | - |
| FIAT FE28MLC | - | EXCAVATOR TRACKED | - | FIAT 8365 | - |
| FIAT S11 | - | EXCAVATOR | - | - S11 | - |
| FIAT S11HD | - | EXCAVATOR | - | - S11HD | - |
| FIAT S11HP | - | EXCAVATOR | - | - S11HP | - |
| FIAT S15B | - | EXCAVATOR | - | - S15B | - |
| FIAT S15BHD | - | EXCAVATOR | - | - S15BHD | - |
| FIAT S15BLC | - | EXCAVATOR | - | - S15BLC | - |
| FIAT S9 | - | EXCAVATOR | - | - S9 | - |
| FIAT SL11 | - | EXCAVATOR TRACKED | - | - SL11 | - |
| FIAT SL9 | - | EXCAVATOR TRACKED | - | - SL9 | - |
| FIAT SR9 | - | EXCAVATOR TRACKED | - | - SR9 | - |
| FIATALLIS FB7 | - | EXCAVATOR | - | FIAT 8045 | - |
| FIATALLIS FE12 | - | EXCAVATOR | - | FIAT 8045 | - |
| FIATALLIS FE12LC | - | EXCAVATOR | - | FIAT 8045 | - |
| FIATALLIS FE12R | - | EXCAVATOR | - | FIAT 8045 | - |
| FIATALLIS FE14 | - | EXCAVATOR | - | FIAT 8065 | - |
| FIATALLIS FE16 | - | EXCAVATOR | - | FIAT 8065 | - |
| FIATALLIS FE18 | - | EXCAVATOR | - | - FE18 | - |
| FIATALLIS FE18LC | - | EXCAVATOR | - | - FE18LC | - |
| FIATALLIS FE18R | - | EXCAVATOR | - | - FE18R | - |
| FIATALLIS FE18RM | - | EXCAVATOR | - | - FE18RM | - |
| FIATALLIS FE20 | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE20HD | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE20LC | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE20M | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE20MHD | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE20MLC | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE24 | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE28 | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE28HD | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE28LC | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE28M | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE28MHD | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS FE28MLC | - | EXCAVATOR | - | FIAT 8365 | - |
| FIATALLIS S11 | - | EXCAVATOR | - | - S11 | - |
| FIATALLIS S11HD | - | EXCAVATOR | - | - S11HD | - |
| FIATALLIS S11HP | - | EXCAVATOR | - | - S11HP | - |
| FIATALLIS S15B | - | EXCAVATOR | - | - S15B | - |
| FIATALLIS S15BHD | - | EXCAVATOR | - | - S15BHD | - |
| FIATALLIS S15BLC | - | EXCAVATOR | - | - S15BLC | - |
| FIATALLIS S9 | - | DOZER TRACKED | - | - S9 | - |
| FIATALLIS SL11 | - | EXCAVATOR | - | - SL11 | - |
| FIATALLIS SL9 | - | DOZER TRACKED | - | - SL9 | - |
| FIATALLIS SR9 | - | DOZER TRACKED | - | - SR9 | - |
