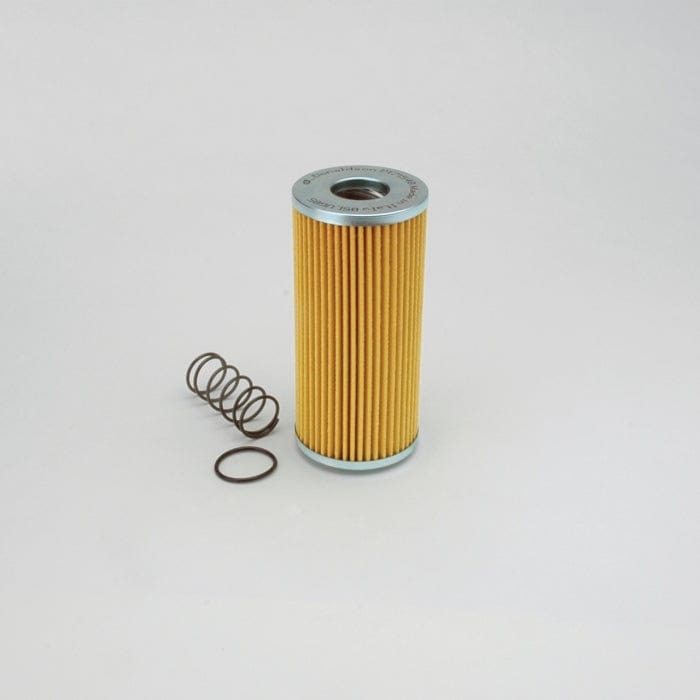

Hydraulic Filter, Cartridge - Donaldson P171540
Hydraulic Filter, Cartridge - Donaldson P171540
Regular price
£16.70
Regular price
Sale price
£16.70
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P171540
Hydraulic Filter, Cartridge| Outer Diameter | 3.74 inch (95 mm) |
| Inner Diameter | 1.61 inch (41 mm) |
| Length | 7.95 inch (202 mm) |
| Overall Length | 8.23 inch (209 mm) |
| Efficiency Beta 2 | 27 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 22 psi (1.5 bar) |
| Collapse Burst | 145 psi (10 bar) |
| Style | Cartridge |
| Series | FIK |
| Media Type | Cellulose |
| Primary Application | F.B.O. CR180 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 95 mm (3.74 inch)
- Inner Diameter: 41 mm (1.61 inch)
- Length: 202 mm (7.95 inch)
- Overall Length: 209 mm (8.23 inch)
- Efficiency Beta 2: 27 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.5 bar (22 psi)
- Collapse Burst: 10 bar (145 psi)
- Style: Cartridge
- Series: FIK
- Media Type: Cellulose
- Primary Application: F.B.O. CR180
Packaged Dimensions
- Packaged Length: 0.100 m (4.00 inch)
- Packaged Width: 0.100 m (4.00 inch)
- Packaged Height: 0.245 m (9.80 inch)
- Packaged Weight: 0.567 kg (1.25 lb)
- Packaged Volume: 0.003 m3 (0.09 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330083765
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ASTRA | 116470 | |
| AVN HYDRAULICS | 135700 | |
| CASE/CASE IH | 1813113 | |
| DMIC | DME4B | |
| DMIC | D10180BN | |
| DMIC | DRE4B | |
| DMIC | DTE4B | |
| F.B.O. | CR1803 | |
| FARID INDUSTRIE | 333312 | |
| FIAT | 1813113 | |
| FINN EQUIPMENT | FFPA11016 | |
| FISPA | LI3435 | |
| HANSA | 2814066 | |
| IKRON | HHC10190 | |
| IKRON | HHC10191 | |
| JCB | 32925100 | Lower efficiency version |
| LIEBHERR | 510613908 | |
| LOESING | 140041 | |
| MERLO | 927007015 | |
| MODINA | RE50CV1 | |
| MP FILTRI | MF1801AP25NB | |
| MP FILTRI | MF1801P25NBP0101002462 | |
| MP FILTRI | MF1801P25NBP01 | |
| MP FILTRI | MF1801P25HB | |
| MP FILTRI | MF1801P25HBP01 | |
| MP FILTRI | F18P20A | |
| MP FILTRI | MF1801P25NB | |
| OMT | CR171C25R | |
| PACCAR | Y06016010 | |
| SAUER SUNDSTRAND | SQC00049 | |
| SAUER SUNDSTRAND | 1511018 | |
| SAUER SUNDSTRAND | 607293 | |
| TECNO COMP | TE846 | |
| VAPORMATIC | 2318 | |
| VMC | HF171540 | |
| WALGAHN-MOTORENTECHN | 890059 | |
| WALGAHN-MOTORENTECHN | 00890059 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ING. BONFIGLIOLI Squalo 4000 | - | SCRAPER | - | CATERPILLAR 6 cyl 440 HP | - |
| MANITOU MI355E | - | FORKLIFT | MI SERIES | - MI355E | - |
| MANITOU MI405E | - | FORKLIFT | MI SERIES | - MI405E | - |
