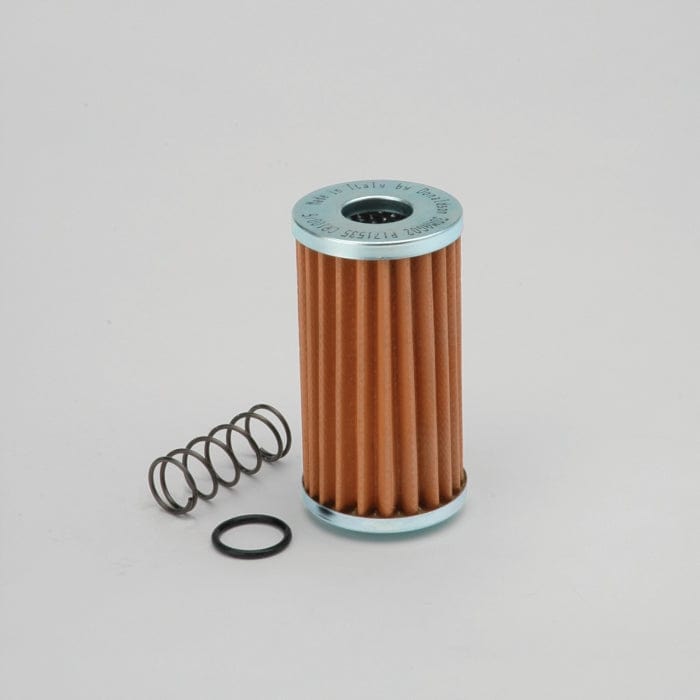

Hydraulic Filter, Cartridge - Donaldson P171535
Hydraulic Filter, Cartridge - Donaldson P171535
Regular price
£14.92
Regular price
Sale price
£14.92
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P171535
Hydraulic Filter, Cartridge| Outer Diameter | 2.76 inch (70 mm) |
| Inner Diameter | 1.14 inch (29 mm) |
| Length | 5.04 inch (128 mm) |
| Efficiency Beta 2 | 60 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 22 psi (1.5 bar) |
| Collapse Burst | 145 psi (10 bar) |
| Style | Cartridge |
| Series | FIK |
| Media Type | Wire Mesh |
Share
Collapsible content
Specifications
Attributes
- Mesh Rating: 60 micron
- Outer Diameter: 70 mm (2.76 inch)
- Inner Diameter: 29 mm (1.14 inch)
- Length: 128 mm (5.04 inch)
- Efficiency Beta 2: 60 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.5 bar (22 psi)
- Collapse Burst: 10 bar (145 psi)
- Style: Cartridge
- Series: FIK
- Media Type: Wire Mesh
Packaged Dimensions
- Packaged Length: 0.079 m (3.15 inch)
- Packaged Width: 0.079 m (3.15 inch)
- Packaged Height: 0.148 m (5.91 inch)
- Packaged Weight: 0.244 kg (0.54 lb)
- Packaged Volume: 0.001 m3 (0.03 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330021965
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN MOTORS CORPORATION | 512412 | |
| ASTRA | 45913 | |
| CASE/CASE IH | 1813110 | |
| CORMACH | 8140008 | |
| DITCH WITCH | 5001790 | |
| DMIC | D10100FN | |
| EXMAN | 512412 | |
| F.B.O. | CR1006 | |
| FASSI GRU | FI874 | |
| FIAT | 1813110 | |
| FISPA | LI3388 | |
| KOMATSU | 848100002 | |
| LHA | TIE16602 | |
| LOESING | 140036 | |
| MANITOU | 499535 | |
| MANITOU | 199935 | |
| MENZI MUCK | 616022 | |
| MERLO | 927007008 | |
| MODINA | 48203 | |
| MODINA | RE25MS1 | |
| MP FILTRI | MF1002M60HB | |
| MP FILTRI | MF1002M60NB | |
| MP FILTRI | MF1002M60HBP01 | |
| MP FILTRI | MF1002M60NBP01 | |
| MP FILTRI | F10M60A | |
| OMT | CR112R60R | |
| OMT | CR100C | |
| PALFINGER | EA087 | |
| RAMA MOTORI | JHP171535 | |
| SAUER SUNDSTRAND | 1511016 | |
| SAUER SUNDSTRAND | 607288 | |
| SAUER SUNDSTRAND | 1612999 | |
| VMC | HF171535 | |
| WALGAHN-MOTORENTECHN | 00811786 | |
| WALGAHN-MOTORENTECHN | 811786 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| MANITOU 4RM20F | - | FORKLIFT | RM SERIES | - 4RM20F | - |
| MANITOU 4RM25F | - | FORKLIFT | RM SERIES | - 4RM25F | - |
| MANITOU 4RM30F | - | FORKLIFT | RM SERIES | - 4RM30F | - |
| MANITOU MB30F | - | FORKLIFT | MB SERIES | - MB30F | - |
