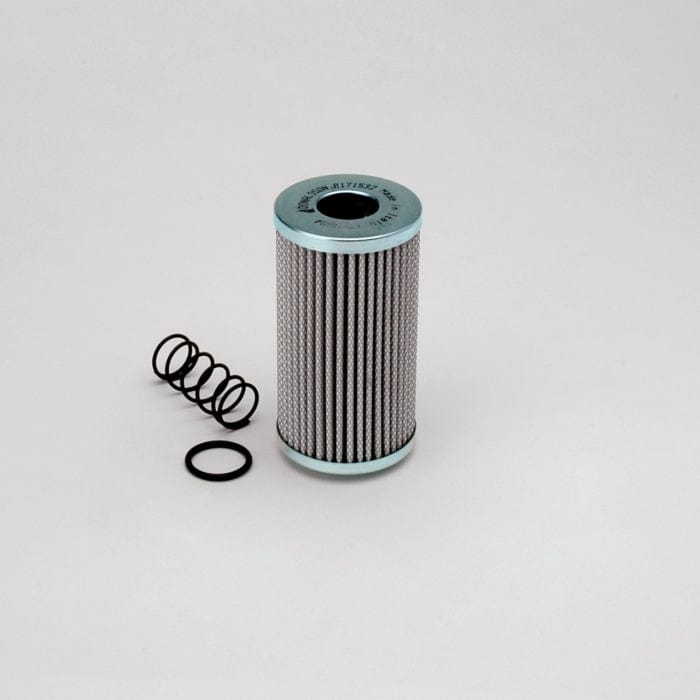

Hydraulic Filter, Cartridge - Donaldson P171532

Attributes

• Outer Diameter: 70 mm (2.76 inch)
• Inner Diameter: 29 mm (1.14 inch)
• Length: 128 mm (5.04 inch)
• Efficiency Beta 1000: 23 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.5 bar (22 psi)
• Collapse Burst: 10 bar (145 psi)
• Style: Cartridge
• Series: FIK
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.079 m (3.15 inch)
• Packaged Width: 0.079 m (3.15 inch)
• Packaged Height: 0.148 m (5.91 inch)
• Packaged Weight: 0.331 kg (0.73 lb)
• Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

• Country of Origin: Italy
• NMFC Code: 069100-09
• HTS Code: 8421298090
• UPC Code: 742330021941
