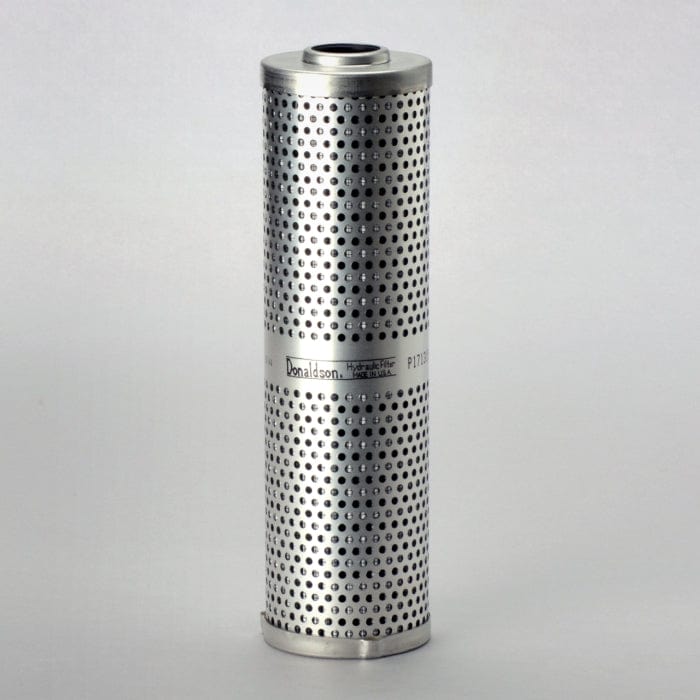

Hydraulic Filter, Cartridge - Donaldson P171315
Hydraulic Filter, Cartridge - Donaldson P171315
Regular price
£28.56
Regular price
Sale price
£28.56
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P171315
Hydraulic Filter, Cartridge| Outer Diameter | 2.69 inch (68.4 mm) |
| Inner Diameter | 1.08 inch (27.43 mm) |
| Length | 9.31 inch (236.5 mm) |
| Efficiency Beta 1000 | 7 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 68.4 mm (2.69 inch)
- Inner Diameter: 27.43 mm (1.08 inch)
- Length: 236.5 mm (9.31 inch)
- Efficiency Beta 1000: 7 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.088 m (3.50 inch)
- Packaged Width: 0.090 m (3.60 inch)
- Packaged Height: 0.255 m (10.20 inch)
- Packaged Weight: 0.449 kg (0.99 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 133320
- HTS Code: 8421298090
- UPC Code: 742330021422
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 3I1988 | |
| INTRUPA | IF6020 | |
| LOESING | 140126 | |
| MP FILTRI | MP8105 | |
| NORMAN ULTRAPOROUS | SCU1065 | |
| VMC | HF171315 |
