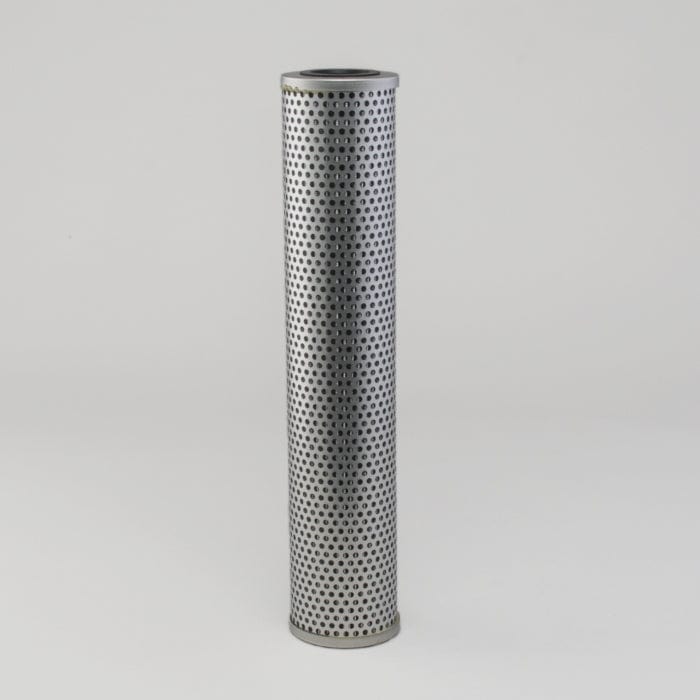

Hydraulic Filter, Cartridge - Donaldson P169562
Hydraulic Filter, Cartridge - Donaldson P169562
Regular price
£98.96
Regular price
Sale price
£98.96
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P169562
Hydraulic Filter, Cartridge| Outer Diameter | 3.68 inch (93.47 mm) |
| Inner Diameter | 1.75 inch (44.48 mm) |
| Length | 18.31 inch (465.18 mm) |
| Efficiency Beta 1000 | 9 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93.47 mm (3.68 inch)
- Inner Diameter: 44.48 mm (1.75 inch)
- Length: 465.18 mm (18.31 inch)
- Efficiency Beta 1000: 9 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.110 m (4.40 inch)
- Packaged Width: 0.110 m (4.40 inch)
- Packaged Height: 0.485 m (19.40 inch)
- Packaged Weight: 0.885 kg (1.95 lb)
- Packaged Volume: 0.006 m3 (0.22 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330019665
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 91109 | |
| CATERPILLAR | 3I1544 | |
| DRESSER | P0580903S | |
| KRALINATOR | L6131 | |
| KRALINATOR | L613 | |
| MORBARK | 26838960 | |
| PEERLESS PUMP | 300548601 | |
| VMC | HF169562 |
