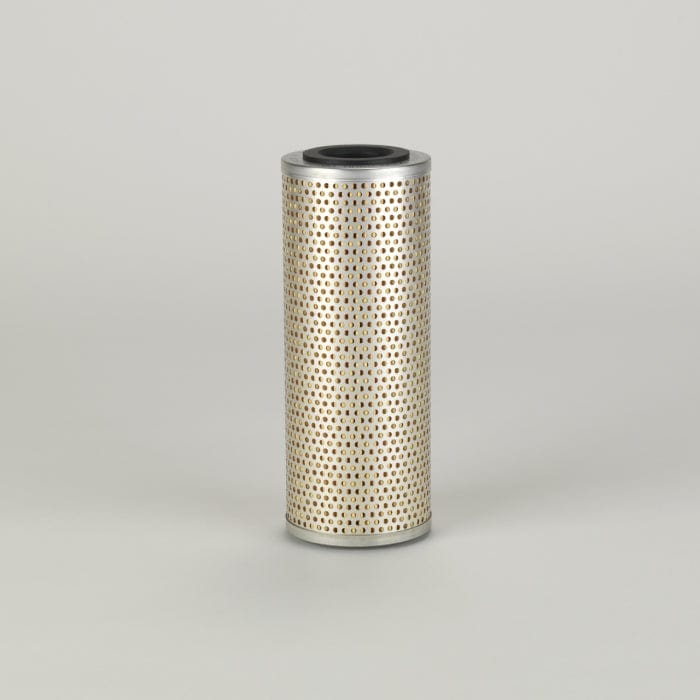

Hydraulic Filter, Cartridge - Donaldson P169478

Attributes

• Outer Diameter: 89.3 mm (3.52 inch)
• Inner Diameter: 41 mm (1.61 inch)
• Length: 229.1 mm (9.02 inch)
• Efficiency Beta 2: 17 micron
• Collapse Burst: 8.6 bar (125 psi)
• Style: Cartridge
• Media Type: Cellulose
• Primary Application: SCHROEDER J25

Packaged Dimensions

• Packaged Length: 0.105 m (4.20 inch)
• Packaged Width: 0.108 m (4.30 inch)
• Packaged Height: 0.243 m (9.70 inch)
• Packaged Weight: 0.477 kg (1.05 lb)
• Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

• Country of Origin: Mexico
• NMFC Code: 133320
• HTS Code: 8421298090
• UPC Code: 742330019566
