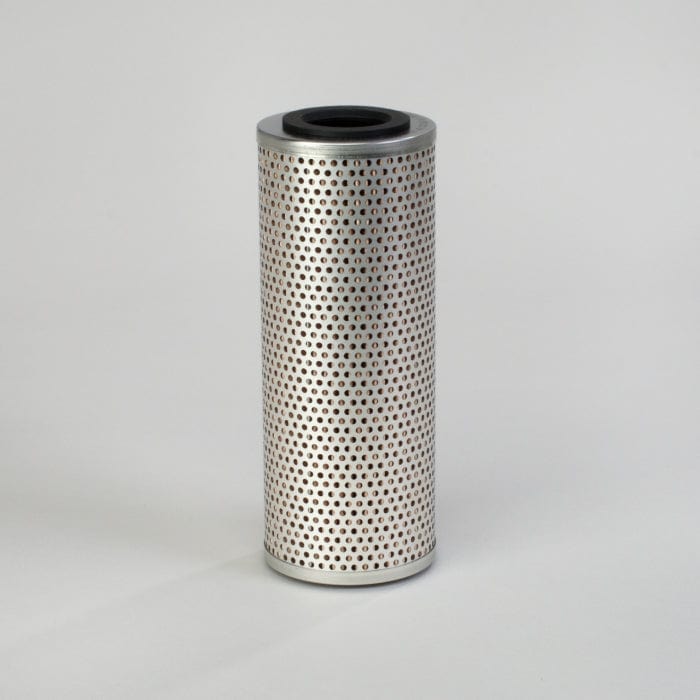

Hydraulic Filter, Cartridge - Donaldson P167516
Hydraulic Filter, Cartridge - Donaldson P167516
Regular price
£18.28
Regular price
Sale price
£18.28
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P167516
Hydraulic Filter, Cartridge| Outer Diameter | 3.52 inch (89.3 mm) |
| Inner Diameter | 1.61 inch (41 mm) |
| Length | 9.02 inch (229 mm) |
| Efficiency Beta 2 | 7 micron |
| Efficiency Beta 1000 | 23 micron |
| Collapse Burst | 125 psi (8.6 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 89.3 mm (3.52 inch)
- Inner Diameter: 41 mm (1.61 inch)
- Length: 229 mm (9.02 inch)
- Efficiency Beta 2: 7 micron
- Efficiency Beta 1000: 23 micron
- Collapse Burst: 8.6 bar (125 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.108 m (4.30 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.245 m (9.80 inch)
- Packaged Weight: 0.497 kg (1.10 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 133320
- HTS Code: 8421298090
- UPC Code: 742330018385
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 3I1916 | |
| GRAINGER | 52YT82 | |
| INGERSOLL RAND | 50939040 | |
| INGERSOLL RAND | J10 | |
| NELSON | 89831K | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687312 | |
| VMC | HF167516 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| INGERSOLL RAND ECM450 | - | DRILLING EQUIPMENT | - | - ECM450 | - |
