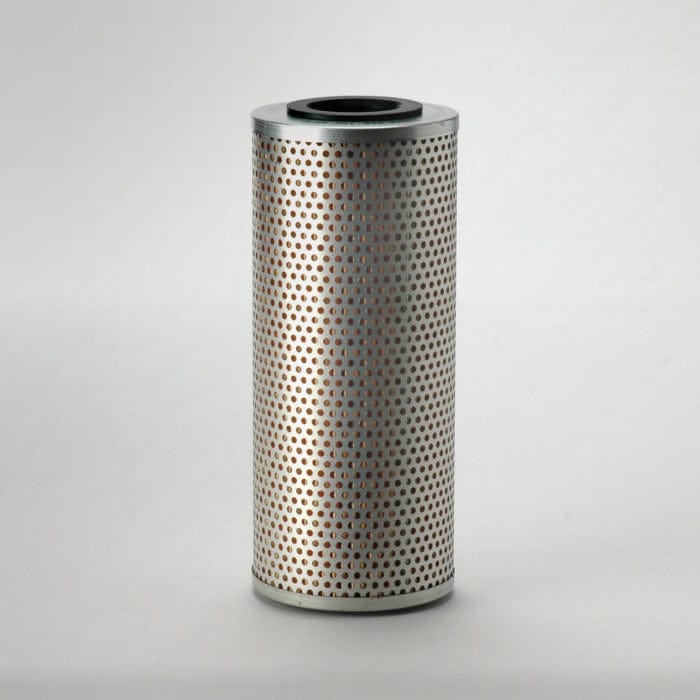

Hydraulic Filter, Cartridge - Donaldson P167425
Hydraulic Filter, Cartridge - Donaldson P167425
Regular price
£11.80
Regular price
Sale price
£11.80
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P167425
Hydraulic Filter, Cartridge| Outer Diameter | 3.86 inch (98 mm) |
| Inner Diameter | 1.61 inch (41 mm) |
| Length | 9.02 inch (229 mm) |
| Efficiency Beta 2 | 17 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
| Primary Application | SCHROEDER K25 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 98 mm (3.86 inch)
- Inner Diameter: 41 mm (1.61 inch)
- Length: 229 mm (9.02 inch)
- Efficiency Beta 2: 17 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Media Type: Cellulose
- Primary Application: SCHROEDER K25
Packaged Dimensions
- Packaged Length: 0.110 m (4.40 inch)
- Packaged Width: 0.110 m (4.40 inch)
- Packaged Height: 0.235 m (9.40 inch)
- Packaged Weight: 0.536 kg (1.18 lb)
- Packaged Volume: 0.003 m3 (0.11 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330018354
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALLIS-CHALMERS | 1900201 | |
| ALLIS-CHALMERS | 1978785 | |
| AMERICAN PARTS | 92434 | |
| AMERICAN PARTS | 2107 | |
| BEHRINGER | BEK920A | |
| BEHRINGER | BEK920N | |
| BEHRINGER | BEK925A | |
| BIG A | 2107 | |
| BLOUNT | A120088 | |
| BLOUNT | 120088 | |
| CAN-FLO | F2525NM | |
| CATERPILLAR | 3I1475 | |
| CLARK | SC3210180 | |
| COOP | PK25 | |
| COOPERS | G878 | |
| COOPERS | HEM6077 | |
| DENISON | DE4051B3C20 | |
| FIAT | 1978782 | |
| FIAT | 190020 | |
| FLO-LINE NO. | QK25 | |
| FLOW EZY | 658305 | |
| FLOW EZY | 760510 | |
| FLOW EZY | 9700925UMV | |
| FLOW EZY | 97001825UMV | |
| FLOW EZY | 756505 | |
| FLOW EZY | 9700925UM | |
| FPC | FPE2525N | |
| FRANKLIN | 1508438 | |
| FRANKLIN | 1510460 | |
| GEHL | 61584 | |
| GEHL | L61584 | |
| GEHL | 061584 | |
| GOULD | PK25 | |
| GRAINGER | 52YT65 | |
| GUARDIAN | G051434 | |
| GUD | G860 | |
| INTRUPA | 83362 | |
| INTRUPA | 83362Q | |
| JLG | 2120107 | |
| JOHN DEERE | F121332 | |
| KAWASAKI | 7100150L003 | |
| KOMATSU | 1454911580 | |
| KOMATSU | 1454932420 | |
| KOMATSU | 6110105320 | |
| LENZ | LIT125225P | |
| LETOURNEAU | VF4454 | |
| LHA | TIE25BTA25 | |
| LHA | TIE2525P | |
| LHA | TIE25251 | |
| MCNEILUS | 1108712 | |
| MP FILTRI | MP8303 | |
| MP FILTRI | MFS180925 | |
| NORCO | HF4125B | |
| NORCO | HF4125N | |
| ORENSTEIN & KOPPEL | 103866 | |
| PTI | HF4050DCB | |
| PTI | HF4070JFB | |
| PTI | HF4070JFV | |
| READY-POWER | 120088 | |
| REFILCO | PL409251 | |
| SAE AUTO ID | HF4L25N | |
| SAUER SUNDSTRAND | 1612999 | |
| SWIFT | SF9700925UM | |
| TEREX | 15267046 | |
| TEREX | 103866 | |
| VMC | HF167425 | |
| YOUNG MACHINE COMPANY | 24356 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ALLIS-CHALMERS 260 | - | CONSTRUCTION EQUIPMENT | - | ALLIS-CHALMERS 16000 | - |
| ALLIS-CHALMERS 260 | - | CONSTRUCTION EQUIPMENT | - | ALLIS-CHALMERS 19000 | - |
| ALLIS-CHALMERS 260 | - | CONSTRUCTION EQUIPMENT | - | - 260 | - |
| ALLIS-CHALMERS 260A | - | CONSTRUCTION EQUIPMENT | - | - 260A | - |
| ALLIS-CHALMERS 260E | - | CONSTRUCTION EQUIPMENT | - | - 260E | - |
| ALLIS-CHALMERS 260E | - | CONSTRUCTION EQUIPMENT | - | - 260E | - |
| ALLIS-CHALMERS 460 | - | CONSTRUCTION EQUIPMENT | - | DETROIT DIESEL 12V-71 | - |
| KOMATSU D120A-18 | - | DOZER TRACKED | - | CUMMINS NRTO6 | - |
| KOMATSU D125A-18 | - | DOZER TRACKED | - | CUMMINS NRTO6 | - |
