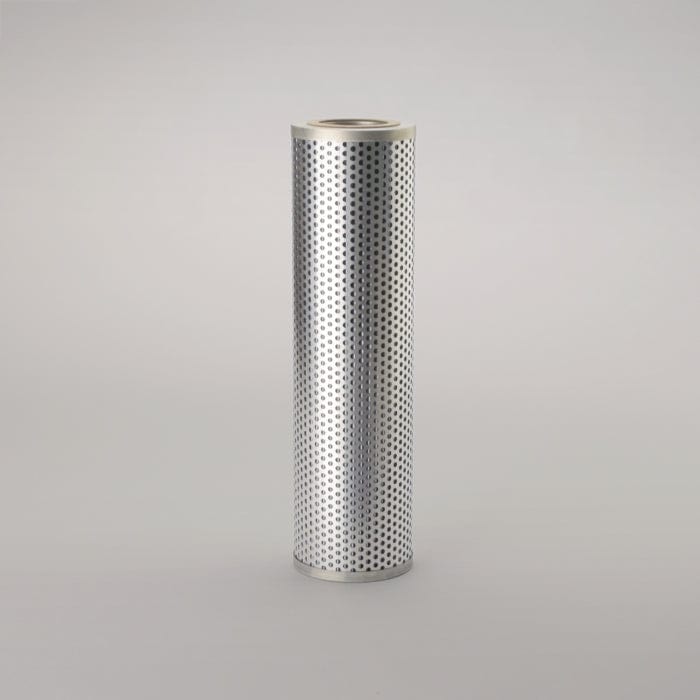

Hydraulic Filter, Cartridge - Donaldson P166597
Hydraulic Filter, Cartridge - Donaldson P166597
Regular price
£68.18
Regular price
Sale price
£68.18
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P166597
Hydraulic Filter, Cartridge| Outer Diameter | 4.39 inch (111.51 mm) |
| Inner Diameter | 2.44 inch (61.98 mm) |
| Length | 16.00 inch (406.4 mm) |
| Efficiency Beta 1000 | 50 micron |
| Collapse Burst | 125 psi (8.6 bar) |
| Style | Cartridge |
| Series | HDK06 |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 111.51 mm (4.39 inch)
- Inner Diameter: 61.98 mm (2.44 inch)
- Length: 406.4 mm (16.00 inch)
- Efficiency Beta 1000: 50 micron
- Collapse Burst: 8.6 bar (125 psi)
- Style: Cartridge
- Series: HDK06
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.118 m (4.72 inch)
- Packaged Width: 0.118 m (4.72 inch)
- Packaged Height: 0.414 m (16.54 inch)
- Packaged Weight: 1.130 kg (2.49 lb)
- Packaged Volume: 0.006 m3 (0.21 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-03
- HTS Code: 8421298090
- UPC Code: 742330017920
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF1159 | |
| AC DELCO | PF2184 | |
| AMERICAN PARTS | 92529 | |
| BARKO HYDRAULICS | 52050 | |
| BIG A | 92529 | |
| BIG A | 92850 | |
| BIG A | 92540 | |
| CARBOCOL | 9437100156 | |
| CATERPILLAR | 3I1913 | |
| CATERPILLAR | 3I0469 | |
| CATERPILLAR | 3I0468 | |
| CATERPILLAR | 3I0453 | |
| CATERPILLAR | 3I0451 | |
| CHARDONNET | 7216047000 | |
| CONSOLIDATED PNEUMATIC | FPS333011 | |
| COOPERS | HEM6038 | |
| FAMEL | FA275H | |
| FIAT | 4208000 | |
| FORD | 9576P160116 | |
| FRANK J ZAMBONI | 3R1750W | |
| FRANK J ZAMBONI | 3R1750L | |
| GALION | 1245424H1 | |
| GARDNER DENVER | 2109660 | |
| GARDNER DENVER | 2109600 | |
| GROVE | 9437100156 | |
| GROVE | P160116 | |
| HAVAM | HD8730 | |
| HAVAM | HD8750 | |
| INGERSOLL RAND | 35251040 | |
| INGERSOLL RAND | 35997352 | |
| INGERSOLL RAND | 50469048 | |
| INGERSOLL RAND | 35330125 | |
| INGERSOLL RAND | P166597 | |
| INGERSOLL RAND | 35295427 | |
| JOY | 1816389 | |
| KRALINATOR | L415 | |
| KRALINATOR | L411 | |
| KRALINATOR | L429 | |
| LOESING | 21091 | |
| LOESING | 21083 | |
| LOESING | 021091 | |
| LOESING | 021083 | |
| RAYGO | 218341 | |
| RYGO | 218341 | |
| SCHRAMM | 50008361 | |
| TECNO COMP | TE800 | |
| VMC | HF166597 | |
| WAGNER MINING EQUIPMENT | 361477 | |
| WAGNER MINING EQUIPMENT | 355922 | |
| WALGAHN-MOTORENTECHN | 00810896 | |
| WALGAHN-MOTORENTECHN | 00810886 | |
| WALGAHN-MOTORENTECHN | 810896 | |
| WALGAHN-MOTORENTECHN | 00810882 | |
| WALGAHN-MOTORENTECHN | 810886 | |
| WALGAHN-MOTORENTECHN | 810882 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| GROVE 2535 | - | CRANE | - | - 2535 | - |
| GROVE RT500 | - | CRANE MOBILE | - | - RT500 | - |
| GROVE RT500C | - | CRANE MOBILE | - | DEUTZ F6L912 | - |
| GROVE RT528B | - | CRANE MOBILE | - | - RT528B | - |
| GROVE RT58A | - | CRANE MOBILE | - | - RT58A | - |
| GROVE RT58B | - | CRANE MOBILE | - | DEUTZ F6L912 | - |
| GROVE RT58C | - | CRANE MOBILE | - | DEUTZ F6L912 | - |
| GROVE RT58D | - | CRANE MOBILE | - | DEUTZ F6L912 | - |
| GROVE RT58E | - | CRANE MOBILE | - | DEUTZ F6L912 | - |
| GROVE RT600B | - | CRANE MOBILE | - | DEUTZ F6L912 | - |
| GROVE RT615S | - | CRANE MOBILE | - | PERKINS 6.354.4 | - |
| GROVE RT620S | - | CRANE MOBILE | - | PERKINS 6.354.4 | - |
| GROVE RT630B | - | CRANE MOBILE | - | - RT630B | - |
| GROVE RT75S | - | CRANE MOBILE | - | - RT75S | - |
| GROVE TM200C | - | CRANE MOBILE | - | - TM200C | - |
| GROVE TMS185 | - | CRANE MOBILE | - | - TMS185 | - |
| GROVE TMS200 | - | CRANE MOBILE | - | - TMS200 | - |
| GROVE TMS250 | - | CRANE MOBILE | - | - TMS250 | - |
| GROVE TMS300B | - | CRANE MOBILE | - | - TMS300B | - |
| GROVE TMS300LP | - | CRANE MOBILE | - | - TMS300LP | - |
| GROVE TMS500 | - | CRANE MOBILE | - | - TMS500 | - |
| GROVE TMS760 | - | CRANE MOBILE | - | - TMS760 | - |
| GROVE TMS865 | - | CRANE MOBILE | - | - TMS865 | - |
| INGERSOLL RAND D750S | - | COMPRESSOR | - | - D750S | - |
| INGERSOLL RAND DXL600HS | - | COMPRESSOR | - | - DXL600HS | - |
| INGERSOLL RAND HP525S | - | COMPRESSOR | - | CUMMINS V504 | - |
| INGERSOLL RAND HP525W | - | COMPRESSOR | - | CUMMINS V504 | - |
| INGERSOLL RAND P450SCU | - | COMPRESSOR | - | CUMMINS V378 | - |
| INGERSOLL RAND P450WCU | - | COMPRESSOR | - | CUMMINS V378 | - |
| INGERSOLL RAND P700 | - | COMPRESSOR | - | - P700 | - |
| INGERSOLL RAND P700S | - | COMPRESSOR | - | - P700S | - |
| INGERSOLL RAND XL900 | - | COMPRESSOR | - | - XL900 | - |
| INGERSOLL RAND XP600 | - | COMPRESSOR | - | - XP600 | - |
| INGERSOLL RAND XP600S | - | COMPRESSOR | - | - XP600S | - |
