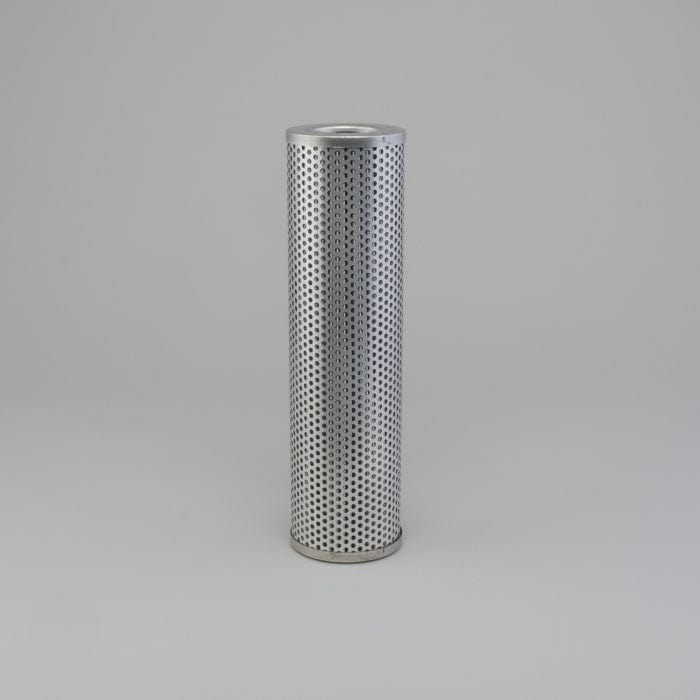

Hydraulic Filter, Cartridge - Donaldson P165249
Hydraulic Filter, Cartridge - Donaldson P165249
Regular price
£67.58
Regular price
Sale price
£67.58
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P165249
Hydraulic Filter, Cartridge| Outer Diameter | 4.38 inch (111.3 mm) |
| Inner Diameter | 2.44 inch (62 mm) |
| Length | 16.00 inch (406.4 mm) |
| Efficiency Beta 2 | 9 micron |
| Efficiency Beta 1000 | 26 micron |
| Collapse Burst | 49 psi (3.4 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 111.3 mm (4.38 inch)
- Inner Diameter: 62 mm (2.44 inch)
- Length: 406.4 mm (16.00 inch)
- Efficiency Beta 2: 9 micron
- Efficiency Beta 1000: 26 micron
- Collapse Burst: 3.4 bar (49 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.120 m (4.80 inch)
- Packaged Width: 0.120 m (4.80 inch)
- Packaged Height: 0.418 m (16.70 inch)
- Packaged Weight: 1.328 kg (2.93 lb)
- Packaged Volume: 0.006 m3 (0.22 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 133320
- HTS Code: 8421298090
- UPC Code: 742330017142
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 92539 | |
| CATERPILLAR | 3I0680 | |
| INGERSOLL RAND | 39126237 | |
| INGERSOLL RAND | 39123229 | |
| INGERSOLL RAND | 39123237 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 911710 | |
| VMC | HF165249 | |
| WALGAHN-MOTORENTECHN | 00811012 | |
| WALGAHN-MOTORENTECHN | 811012 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| INGERSOLL RAND 1000H | - | COMPRESSOR | - | - 1000H | - |
| INGERSOLL RAND 800H | - | COMPRESSOR | - | - 800H | - |
