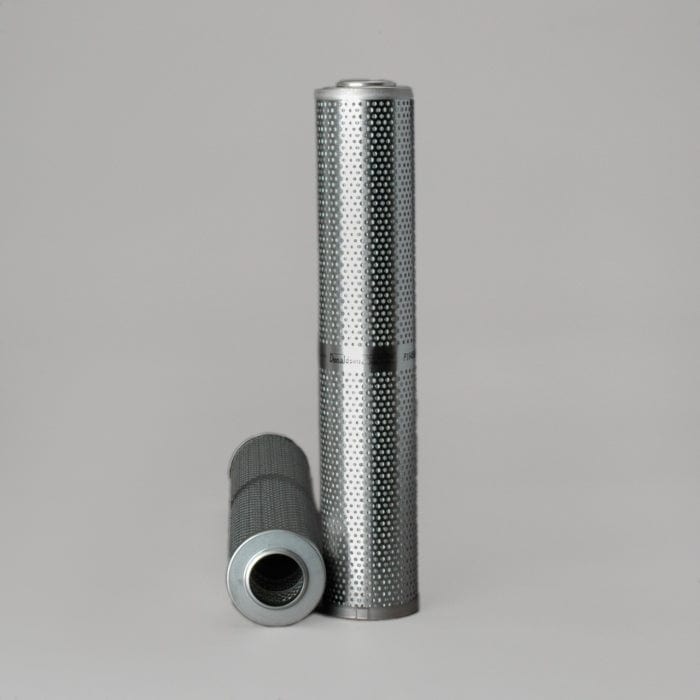

Hydraulic Filter, Cartridge - Donaldson P164598

Attributes

• Outer Diameter: 78.7 mm (3.10 inch)
• Inner Diameter: 43.43 mm (1.71 inch)
• Length: 423.4 mm (16.67 inch)
• Efficiency Beta 1000: 7 micron
• Collapse Burst: 13.8 bar (200 psi)
• Style: Cartridge
• Series: HPK04
• Media Type: Synthetic
• Primary Application: PALL HC9600FUN16H

Packaged Dimensions

• Packaged Length: 0.088 m (3.50 inch)
• Packaged Width: 0.090 m (3.60 inch)
• Packaged Height: 0.438 m (17.50 inch)
• Packaged Weight: 0.854 kg (1.88 lb)
• Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 133320
• HTS Code: 8421298090
• UPC Code: 742330016466
