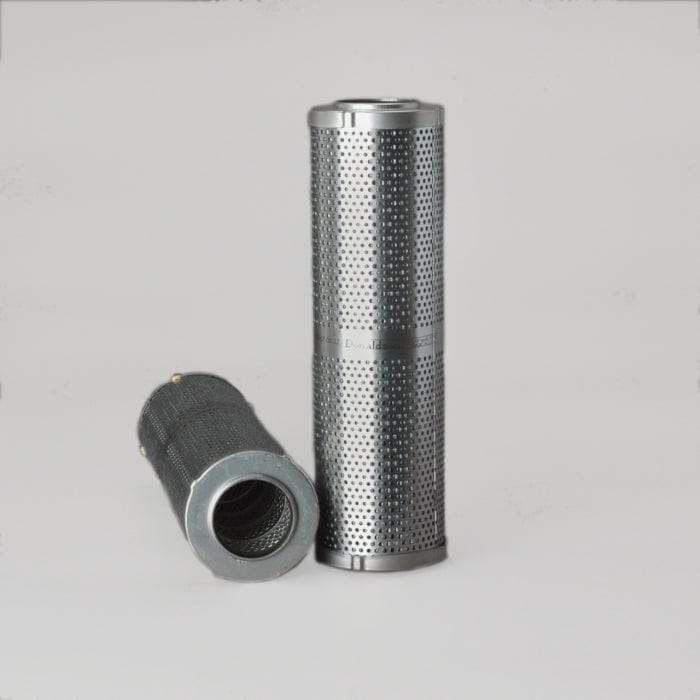

Hydraulic Filter, Cartridge - Donaldson P164225

Attributes

• Outer Diameter: 95 mm (3.74 inch)
• Inner Diameter: 56.26 mm (2.21 inch)
• Length: 324.1 mm (12.76 inch)
• Efficiency Beta 1000: 23 micron
• Collapse Burst: 13.8 bar (200 psi)
• Style: Cartridge
• Media Type: Synthetic
• Primary Application: PALL HC9400FUT13H

Packaged Dimensions

• Packaged Length: 0.118 m (4.70 inch)
• Packaged Width: 0.105 m (4.20 inch)
• Packaged Height: 0.340 m (13.60 inch)
• Packaged Weight: 0.987 kg (2.18 lb)
• Packaged Volume: 0.004 m3 (0.16 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 133320
• HTS Code: 8421298090
• UPC Code: 742330015988
