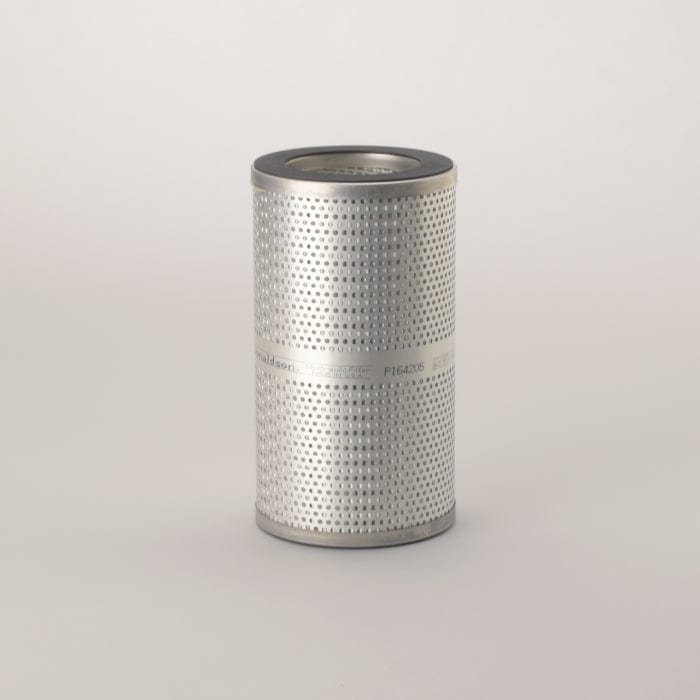

Hydraulic Filter, Cartridge - Donaldson P164205
Hydraulic Filter, Cartridge - Donaldson P164205
Regular price
£46.04
Regular price
Sale price
£46.04
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P164205
Hydraulic Filter, Cartridge| Outer Diameter | 5.07 inch (128.8 mm) |
| Inner Diameter | 3.35 inch (85 mm) |
| Length | 9.12 inch (231.6 mm) |
| Efficiency Beta 1000 | 11 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Media Type | Synthetic |
| Primary Application | CATERPILLAR 9W6428 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 128.8 mm (5.07 inch)
- Inner Diameter: 85 mm (3.35 inch)
- Length: 231.6 mm (9.12 inch)
- Efficiency Beta 1000: 11 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Media Type: Synthetic
- Primary Application: CATERPILLAR 9W6428
Packaged Dimensions
- Packaged Length: 0.138 m (5.50 inch)
- Packaged Width: 0.138 m (5.50 inch)
- Packaged Height: 0.239 m (9.55 inch)
- Packaged Weight: 0.867 kg (1.91 lb)
- Packaged Volume: 0.005 m3 (0.17 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330015933
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCOA MARINE | CO1709 | |
| ALLIS-CHALMERS | 30429120 | |
| ALLIS-CHALMERS | 30429127 | |
| ALLIS-CHALMERS | 6664213 | |
| ALLIS-CHALMERS | 3042912 | |
| ALLIS-CHALMERS | 3042917 | |
| ALLIS-CHALMERS | 70664000 | |
| ALLIS-CHALMERS | 70666421 | |
| ALLIS-CHALMERS | 6624214 | |
| ALLIS-CHALMERS | 7066400 | |
| ALLIS-CHALMERS | 666421 | |
| ALLIS-CHALMERS | 664214 | |
| ALLIS-CHALMERS | 16624214 | |
| AS | AS171 | |
| CASE/CASE IH | L59846 | |
| CASE/CASE IH | L52764 | |
| CATERPILLAR | 1U2094 | |
| CATERPILLAR | 6J8958 | |
| CATERPILLAR | 6J3963 | |
| CATERPILLAR | 4F6064 | |
| CATERPILLAR | 4J0806 | |
| CATERPILLAR | S30262A | |
| CATERPILLAR | 4D2954 | |
| CATERPILLAR | 402954 | |
| CATERPILLAR | 1R0778 | |
| CATERPILLAR | 5J6174 | |
| CATERPILLAR | 5J9174 | |
| CATERPILLAR | 5H6174 | |
| CATERPILLAR | 3K6727 | |
| CATERPILLAR | 8S2213 | |
| CATERPILLAR | 4J6068 | |
| CATERPILLAR | 4J6164 | |
| CATERPILLAR | 4J806 | |
| CATERPILLAR | 8S1237 | |
| CATERPILLAR | 9W642S | |
| CATERPILLAR | 3I1338 | |
| CATERPILLAR | 1R0720 | |
| CATERPILLAR | 2J1550 | |
| CATERPILLAR | 2J1360 | |
| CATERPILLAR | 2H1560 | |
| CATERPILLAR | 2J6135 | |
| CATERPILLAR | 2J1660 | |
| CATERPILLAR | 2J1560 | |
| CATERPILLAR | 3I0591 | |
| CATERPILLAR | 9W6428 | |
| CATERPILLAR | 3S4621 | |
| CATERPILLAR | 81400750 | |
| CATERPILLAR | 81404865 | |
| CATERPILLAR | 7S8701 | |
| CATERPILLAR | 7SS701 | |
| CHARDONNET | 7255606400 | |
| COOP | PM4J6064 | |
| COOP | P4J6064 | |
| COOP | P4J606410 | |
| DEZZI | 350008 | |
| FAMEL | FA205H | |
| FAMEL | FA905H | |
| FIAT | 76624214 | |
| FIAT | 6686884 | |
| FIAT | 6664213 | |
| FIAT | 3042912 | |
| FIAT | 73042912 | |
| FIAT | 70666421 | |
| FIAT | 79092882 | |
| FIAT | 73135857 | |
| FIAT | 6624214 | |
| FIAT | 1930836 | |
| FIAT | 70666429 | |
| FORD | 9576P164205 | |
| GREYFRIARS | 639P | |
| INGERSOLL RAND | 4J6064 | |
| KNECHT | HX79 | |
| LETOURNEAU | VL4530 | |
| LETOURNEAU | WY2195 | |
| LETOURNEAU | TS2135 | |
| LETOURNEAU | VY2195 | |
| LOESING | 25014 | |
| MASTE | D162 | |
| MCCORMICK | L59846 | |
| MCCORMICK | L52764 | |
| NACCO MATERIALS | 75658 | |
| NEW HOLLAND | 103837 | |
| NEW HOLLAND | L1930836 | |
| NEW HOLLAND | 1499568 | |
| NEW HOLLAND | 105510 | |
| NEW HOLLAND | 79092882 | |
| PERKINS | 8120731791 | |
| REFILCO | PL50935 | |
| ROMAN | HD64 | |
| TEREX | 103837 | |
| TEREX | 105510 | |
| TIM | 1U2094 | |
| TIM | 9W6428 | |
| TIM | 4J0806 | |
| TIM | 5J6174 | |
| TIM | 5J9174 | |
| TIM | 4J6068 | |
| TIM | 2J1360 | |
| TIM | 2H1560 | |
| TIM | 2J6135 | |
| TIM | 2J1660 | |
| TIM | 2J1560 | |
| TIM | 3K6727 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688956 | |
| VOLVO | 3130945 | |
| WALGAHN-MOTORENTECHN | 811445 | |
| WALGAHN-MOTORENTECHN | 810967 | |
| WALGAHN-MOTORENTECHN | 00810967 | |
| WGB | S214CP |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 24H | - | GRADER | 24 SERIES | CATERPILLAR 3412TAE1 | - |
| CATERPILLAR 572R | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 572R II | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR 768C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3408TA | - |
| CATERPILLAR 769C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3408TA | - |
| CATERPILLAR 772B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TA | - |
| CATERPILLAR 773B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TA | - |
| CATERPILLAR 775B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TA | - |
| CATERPILLAR 775D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3412TAE | - |
| CATERPILLAR 776C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR 776D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508TAE | - |
| CATERPILLAR 777 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR D348 | - |
| CATERPILLAR 777B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR 777C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR 777D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508TAE | - |
| CATERPILLAR 777F | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C32TA ACERT | - |
| CATERPILLAR 784B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512 | - |
| CATERPILLAR 784C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512TAE | - |
| CATERPILLAR 785 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512TA | - |
| CATERPILLAR 785B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512 | - |
| CATERPILLAR 785C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512BTA | - |
| CATERPILLAR 785D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512CTA | - |
| CATERPILLAR 787B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 789 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TA | - |
| CATERPILLAR 789B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 789C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 793 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TA | - |
| CATERPILLAR 793B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 793C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 793D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 797 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TAE | - |
| CATERPILLAR 797B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3524B | - |
| CATERPILLAR AD40 | - | DUMP TRUCK ARTICULATED | - | - AD40 | - |
| CATERPILLAR D6H | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H II XR | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D6H LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7G II | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 DITA | - |
| CATERPILLAR D7H II LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7H II XR | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7H LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7H XR | - | DOZER TRACKED | D SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR D7R | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D7R II | - | DOZER TRACKED | D SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR D7R II LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR D7R II XR | - | DOZER TRACKED | D SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR D7R LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D7R XR | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D8N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR D8R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR D8R II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3406E | - |
| CATERPILLAR D8T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C15 ACERT | - |
