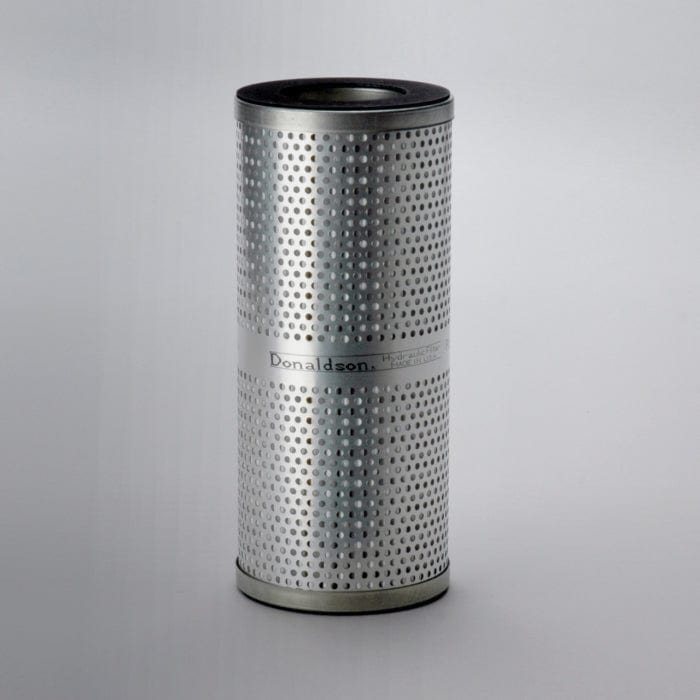

Hydraulic Filter, Cartridge - Donaldson P164200
Hydraulic Filter, Cartridge - Donaldson P164200
Regular price
£31.38
Regular price
Sale price
£31.38
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P164200
Hydraulic Filter, Cartridge| Outer Diameter | 4.00 inch (101.6 mm) |
| Inner Diameter | 2.30 inch (58.4 mm) |
| Length | 9.13 inch (232 mm) |
| Overall Length | 9.25 inch (235 mm) |
| Efficiency Beta 1000 | 13 micron |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Cartridge |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 101.6 mm (4.00 inch)
- Inner Diameter: 58.4 mm (2.30 inch)
- Length: 232 mm (9.13 inch)
- Overall Length: 235 mm (9.25 inch)
- Efficiency Beta 1000: 13 micron
- Collapse Burst: 6.9 bar (100 psi)
- Style: Cartridge
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.113 m (4.50 inch)
- Packaged Width: 0.108 m (4.30 inch)
- Packaged Height: 0.233 m (9.30 inch)
- Packaged Weight: 0.624 kg (1.38 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330015919
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN CRANE CORPORATION | 1616C0 | |
| AS | AS17OH | |
| CARBOCOL | HF6097 | |
| CATERPILLAR | 2P3576 | |
| CATERPILLAR | 2S1677 | |
| CATERPILLAR | 1M9150 | |
| CATERPILLAR | 2M3943 | |
| CATERPILLAR | 2M3243 | |
| CATERPILLAR | 3I1411 | |
| CATERPILLAR | 1987397 | |
| CATERPILLAR | 1U2093 | |
| CATERPILLAR | 1RO719 | |
| CATERPILLAR | 2M9156 | |
| CATERPILLAR | 3I0589 | |
| CATERPILLAR | 9W6427 | |
| CATERPILLAR | 4J4195 | |
| CATERPILLAR | 9M9156 | |
| CATERPILLAR | 9M9740 | |
| CATERPILLAR | 4A339 | |
| CATERPILLAR | 1M9156 | |
| CATERPILLAR | 81400749 | |
| CATERPILLAR | 281677 | |
| CATERPILLAR | 7M5264 | |
| CATERPILLAR | 4A0339 | |
| CATERPILLAR | 7S8699 | |
| CHARDONNET | 7255974000 | |
| COOP | PM9M9740 | |
| COOP | P9M9740 | |
| EXMAN | H193 | |
| EXMAN | H1932 | |
| EXMAN | SFH9740 | |
| FAMEL | FA87 | |
| FREIGHTLINER | DNP559740 | |
| FSA | FO1771 | |
| FURUKAWA | 3066975R91 | |
| HAVAM | HD9740 | |
| INDUCONTROL | CPL155 | |
| INGERSOLL RAND | 9M9740 | |
| KALMAR | 9231100221 | |
| KRALINATOR | L806R | |
| LOCKHEED | FH249 | |
| LOCKHEED | 574249 | |
| LOESING | 25074 | |
| MASTE | D163 | |
| NEW HOLLAND | 103818 | |
| NEW HOLLAND | 105509 | |
| REFILCO | 1M9156M | |
| TEREX | 103818 | |
| TEREX | 105509 | |
| TIM | 2P3576 | |
| TIM | 2S1677 | |
| TIM | 2M3943 | |
| TIM | 2M3243 | |
| TIM | 2M9156 | |
| TIM | 4J4195 | |
| TIM | 9W6427 | |
| TIM | 1M9156 | |
| TIM | 1M9150 | |
| TIM | 7M5264 | |
| TIM | 4A0339 | |
| TIM | 7S8699 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 687176 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 689060 | |
| VMC | HF164200 | |
| WALGAHN-MOTORENTECHN | 811490 | |
| WGB | S189CP | |
| WINSLOW | W2M3943 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 518 II | - | SKIDDER | - | - 518 II | - |
| CATERPILLAR 518C | - | FORESTRY EQUIPMENT | - | - 518C | - |
| CATERPILLAR 530B | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3306T | - |
| CATERPILLAR 621S | - | SCRAPER | - | - 621S | - |
| CATERPILLAR 623B | - | SCRAPER | - | - 623B | - |
| CATERPILLAR 627B | - | SCRAPER | - | - 627B | - |
| CATERPILLAR 627F | - | SCRAPER | - | - 627F | - |
| CATERPILLAR 631C | - | SCRAPER | - | - 631C | - |
| CATERPILLAR 633D | - | SCRAPER | - | - 633D | - |
| CATERPILLAR 633E | - | SCRAPER | - | CATERPILLAR 3408TAE | - |
| CATERPILLAR 641B | - | SCRAPER | - | - 641B | - |
| CATERPILLAR 650B | - | SCRAPER | - | - 650B | - |
| CATERPILLAR 651B | - | SCRAPER | - | - 651B | - |
| CATERPILLAR 660B | - | SCRAPER | - | - 660B | - |
| CATERPILLAR 7211 | - | MARINE ENGINE | - | - 7211 | - |
| CATERPILLAR 7221 | - | MARINE ENGINE | - | - 7221 | - |
| CATERPILLAR 7231 | - | MARINE ENGINE | - | - 7231 | - |
| CATERPILLAR 7241 | - | MARINE ENGINE | - | - 7241 | - |
| CATERPILLAR 7251 | - | MARINE ENGINE | - | - 7251 | - |
| CATERPILLAR 7261 | - | MARINE ENGINE | - | - 7261 | - |
| CATERPILLAR 7271 | - | MARINE ENGINE | - | - 7271 | - |
| CATERPILLAR FB518 | - | FORESTRY EQUIPMENT | - | - FB518 | - |
