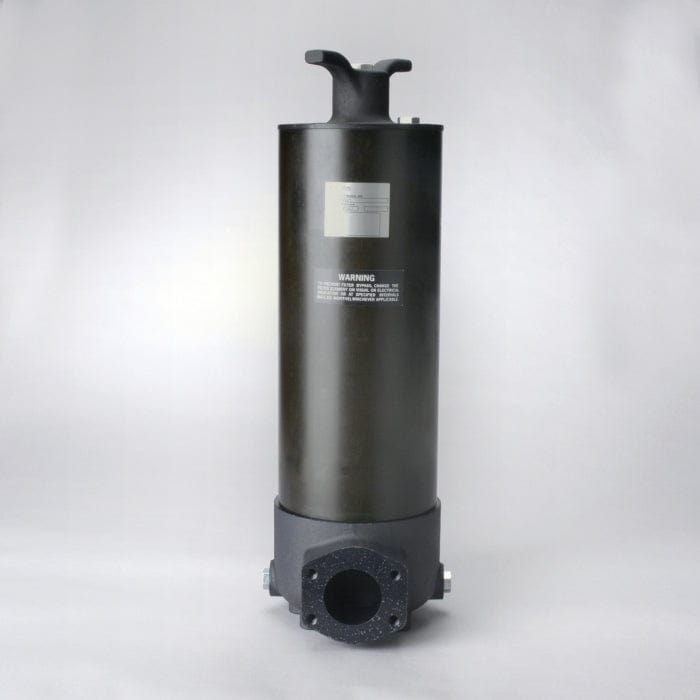

Hydraulic Filter Assembly - Donaldson P575921

Attributes

• Length: 230 mm (9.06 inch)
• Width: 220 mm (8.66 inch)
• Height: 672 mm (26.46 inch)
• Inlet Size: 2 1/2 SAE 4 Bolt Code 61
• Outlet Size: 2 1/2 SAE 4 Bolt Code 61
• Bypass Valve: Yes
• Bypass Valve Setting HR: 3.45 bar (50 psi)
• Series: W041

Packaged Dimensions

• Packaged Length: 0.731 m (29.25 inch)
• Packaged Width: 0.294 m (11.75 inch)
• Packaged Height: 0.300 m (12.00 inch)
• Packaged Weight: 21.906 kg (48.25 lb)
• Packaged Volume: 0.067 m3 (2.39 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-05
• HTS Code: 8421298090
• UPC Code: 742330986790
