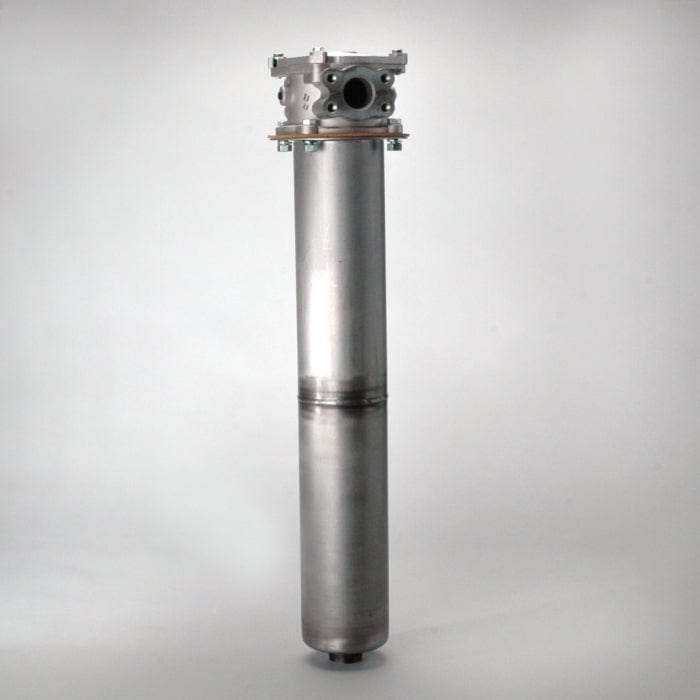

Hydraulic Filter Assembly - Donaldson P574237

Attributes

• Inlet Size: 1 1/2 SAE 4 Bolt Code 61
• Outlet Size: 1 1/2 NPT
• Overall Length: 810 mm (31.89 inch)
• Bypass Valve: Yes
• Bypass Valve Setting LR: 3.5 bar (51 psi)
• Series: WL16

Packaged Dimensions

• Packaged Length: 0.831 m (33.25 inch)
• Packaged Width: 0.200 m (8.00 inch)
• Packaged Height: 0.202 m (8.06 inch)
• Packaged Weight: 7.309 kg (16.10 lb)
• Packaged Volume: 0.035 m3 (1.24 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-05
• HTS Code: 8421298090
• UPC Code: 742330977675
