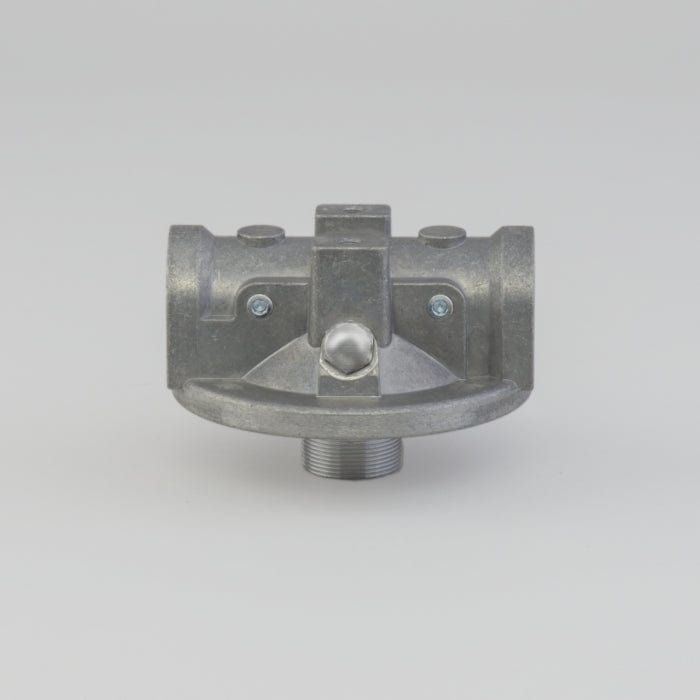

Head Assembly, Hydraulic - Donaldson P576556
Head Assembly, Hydraulic - Donaldson P576556
Regular price
£102.00
Regular price
Sale price
£102.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P576556
Head Assembly, Hydraulic| Length | 5.39 inch (136.8 mm) |
| Height | 3.70 inch (94 mm) |
| Inlet Size | 1 1/4 NPT |
| Outlet Size | 1 1/4 NPT |
| Filter-to-Head Thread | 1 1/4 BSP/G & 1 1/2-16 UN |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 15 psi (1.03 bar) |
| Series | SP50/60 |
Share
Collapsible content
Specifications
Attributes
- Length: 136.8 mm (5.39 inch)
- Height: 94 mm (3.70 inch)
- Inlet Size: 1 1/4 NPT
- Outlet Size: 1 1/4 NPT
- Filter-to-Head Thread: 1 1/4 BSP/G & 1 1/2-16 UN
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.03 bar (15 psi)
- Series: SP50/60
Packaged Dimensions
- Packaged Length: 0.145 m (5.80 inch)
- Packaged Width: 0.145 m (5.80 inch)
- Packaged Height: 0.108 m (4.30 inch)
- Packaged Weight: 0.953 kg (2.10 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: China
- NMFC Code: 104770
- HTS Code: 8481409090
- UPC Code: 742330224915
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| LHA | SP50NGN0 | |
| LHA | SP50NGN1 |
