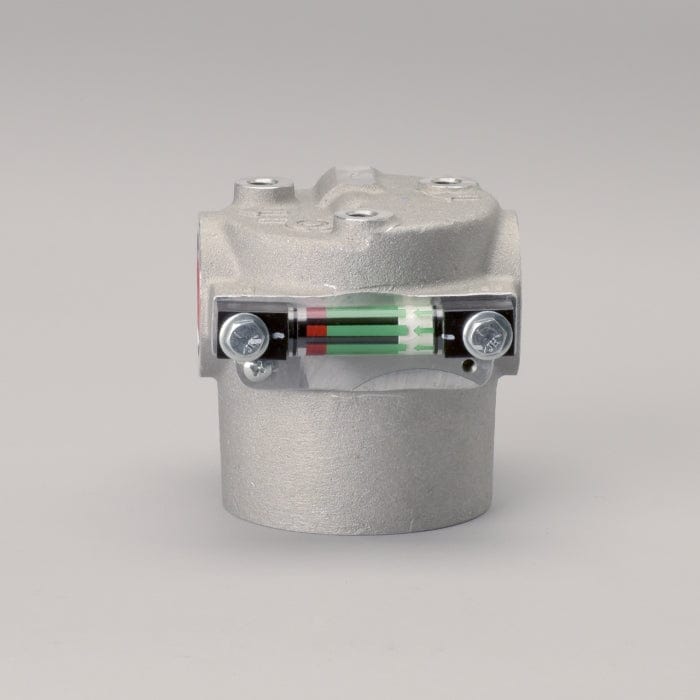

Head Assembly, Hydraulic - Donaldson P167728
Head Assembly, Hydraulic - Donaldson P167728
Regular price
£389.64
Regular price
Sale price
£389.64
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P167728
Head Assembly, Hydraulic| Length | 4.15 inch (105.38 mm) |
| Height | 4.15 inch (105.41 mm) |
| Inlet Size | SAE-12 |
| Outlet Size | SAE-12 |
| Filter-to-Head Thread | 2 3/4-12 UN |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 51 psi (3.5 bar) |
| Series | HPK02 |
Share
Collapsible content
Specifications
Attributes
- Length: 105.38 mm (4.15 inch)
- Height: 105.41 mm (4.15 inch)
- Inlet Size: SAE-12
- Outlet Size: SAE-12
- Filter-to-Head Thread: 2 3/4-12 UN
- Bypass Valve: Yes
- Bypass Valve Setting LR: 3.5 bar (51 psi)
- Series: HPK02
Packaged Dimensions
- Packaged Length: 0.165 m (6.60 inch)
- Packaged Width: 0.153 m (6.10 inch)
- Packaged Height: 0.140 m (5.60 inch)
- Packaged Weight: 1.848 kg (4.07 lb)
- Packaged Volume: 0.004 m3 (0.13 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 133320
- HTS Code: 8421999099
- UPC Code: 742330111314
