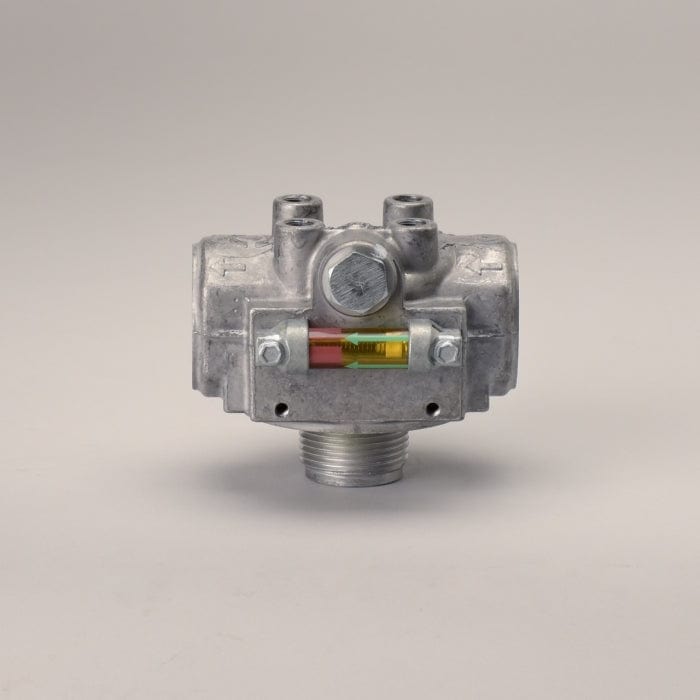

Head Assembly, Hmk04 Duramax - Donaldson P166086

Attributes

• Length: 103.63 mm (4.08 inch)
• Height: 85.85 mm (3.38 inch)
• Inlet Size: 1 NPT
• Outlet Size: 1 NPT
• Filter-to-Head Thread: 1 3/8-12 UN
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.7 bar (25 psi)
• Series: HMK04/24
• Brand: Duramax®

Packaged Dimensions

• Packaged Length: 0.120 m (4.80 inch)
• Packaged Width: 0.118 m (4.70 inch)
• Packaged Height: 0.138 m (5.50 inch)
• Packaged Weight: 0.735 kg (1.62 lb)
• Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 133320
• HTS Code: 8421999099
• UPC Code: 742330017609
