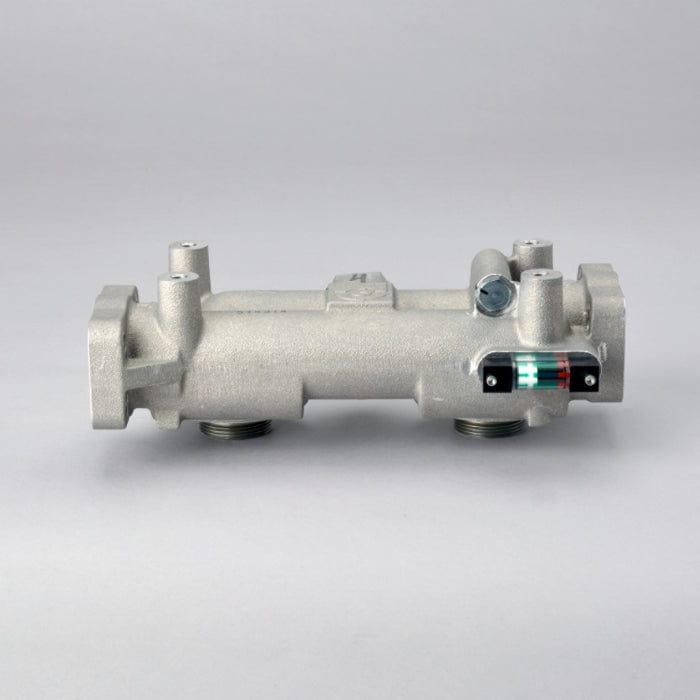

Head Assembly, Bulk Fluid - Donaldson P574958

Attributes

• Length: 127.76 mm (5.03 inch)
• Width: 157 mm (6.18 inch)
• Height: 110 mm (4.33 inch)
• Inlet Size: 1 1/2 SAE 4 Bolt Code 61
• Outlet Size: 1 1/2 SAE 4 Bolt Code 61
• Bypass Valve: Yes
• Bypass Valve Setting LR: 3.45 bar (50 psi)
• Brand: Bulk Filtration

Packaged Dimensions

• Packaged Length: 0.310 m (12.40 inch)
• Packaged Width: 0.123 m (4.90 inch)
• Packaged Height: 0.185 m (7.40 inch)
• Packaged Weight: 3.723 kg (8.20 lb)
• Packaged Volume: 0.007 m3 (0.26 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-05
• HTS Code: 8421999099
• UPC Code: 742330981801
