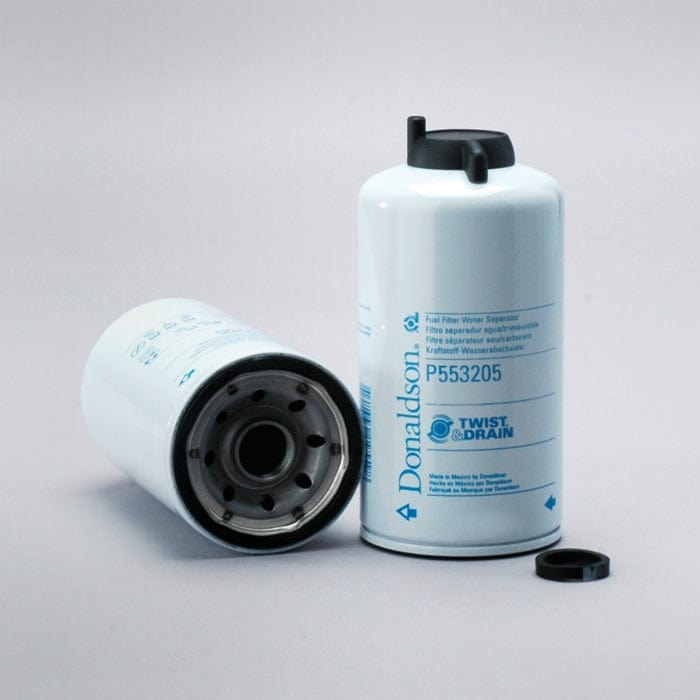

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P553205
Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P553205
Regular price
£18.16
Regular price
Sale price
£18.16
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P553205
Fuel Filter, Water Separator Spin-On Twist&Drain| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-14 UN |
| Length | 7.62 inch (193.5 mm) |
| Gasket OD | 3.39 inch (86.2 mm) |
| Gasket ID | 3.05 inch (77.5 mm) |
| Efficiency 99% | 15 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Type | Water Separator |
| Style | Spin-On |
| Brand | Twist&Drain™ |
| Media Type | Cellulose |
| Primary Application | CATERPILLAR 1466695 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-14 UN
- Length: 193.5 mm (7.62 inch)
- Gasket OD: 86.2 mm (3.39 inch)
- Gasket ID: 77.5 mm (3.05 inch)
- Efficiency 99%: 15 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 95.00 Percent
- Type: Water Separator
- Style: Spin-On
- Brand: Twist&Drain™
- Media Type: Cellulose
- Primary Application: CATERPILLAR 1466695
Packaged Dimensions
- Packaged Length: 0.093 m (3.70 inch)
- Packaged Width: 0.093 m (3.70 inch)
- Packaged Height: 0.190 m (7.60 inch)
- Packaged Weight: 0.604 kg (1.33 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-04
- HTS Code: 8421230090
- UPC Code: 742330195598
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 1466695 | |
| ECOLOG | 7000504 | |
| LOESING | 25391 | |
| VMC | FS550659 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 3126B | - | ENGINE | - | - 3126B | - |
| CATERPILLAR 561N | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR AP1050 | - | PAVER | AP SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR CP563 | - | COMPACTOR | CP SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR CS563 | - | COMPACTOR | CS SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR D5N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR D5N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR D6N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D6N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
