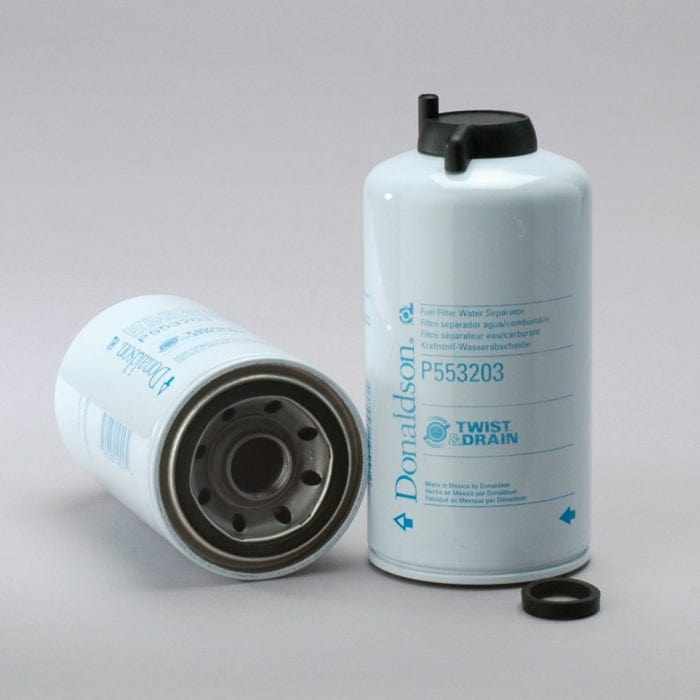

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P553203
Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P553203
Regular price
£19.24
Regular price
Sale price
£19.24
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P553203
Fuel Filter, Water Separator Spin-On Twist&Drain| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-14 UN |
| Length | 7.61 inch (193.3 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 4 micron |
| Efficiency Test Std | ISO 19438 |
| Emulsified H2O Efficiency | 95 Percent |
| Type | Water Separator |
| Style | Spin-On |
| Brand | Twist&Drain™ |
| Media Type | Cellulose |
| Primary Application | RACOR S3203 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-14 UN
- Length: 193.3 mm (7.61 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 4 micron
- Efficiency Test Std: ISO 19438
- Emulsified H2O Efficiency: 95 Percent
- Type: Water Separator
- Style: Spin-On
- Brand: Twist&Drain™
- Media Type: Cellulose
- Primary Application: RACOR S3203
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.197 m (7.87 inch)
- Packaged Weight: 0.574 kg (1.27 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-04
- HTS Code: 8421230090
- UPC Code: 742330195574
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 95433 | |
| BIG A | 95443 | |
| CATERPILLAR | 1466694 | |
| THERMO KING | 115948 | |
| VMC | FS555003 | |
| VMC | FF555003 |
