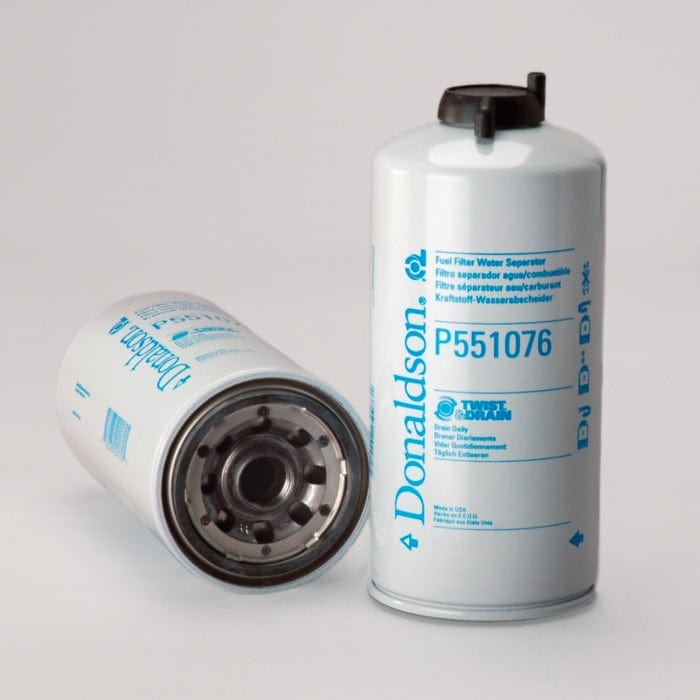

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551076
Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551076
Regular price
£36.54
Regular price
Sale price
£36.54
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551076
Fuel Filter, Water Separator Spin-On Twist&Drain| Outer Diameter | 4.22 inch (107.3 mm) |
| Thread Size | 1-14 UN |
| Length | 9.59 inch (243.7 mm) |
| Gasket OD | 3.48 inch (88.4 mm) |
| Gasket ID | 3.17 inch (80.4 mm) |
| Efficiency 99% | 10 micron |
| Efficiency Test Std | ISO 19438 |
| Emulsified H2O Efficiency | 95 Percent |
| Type | Water Separator |
| Style | Spin-On |
| Brand | Twist&Drain™ |
| Media Type | Cellulose, Meltblown |
| Primary Application | RACOR R120T |
| Notes | Not for Marine Applications |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 107.3 mm (4.22 inch)
- Thread Size: 1-14 UN
- Length: 243.7 mm (9.59 inch)
- Gasket OD: 88.4 mm (3.48 inch)
- Gasket ID: 80.4 mm (3.17 inch)
- Efficiency 99%: 10 micron
- Efficiency Test Std: ISO 19438
- Emulsified H2O Efficiency: 95 Percent
- Type: Water Separator
- Style: Spin-On
- Brand: Twist&Drain™
- Media Type: Cellulose
- Meltblown:
- Primary Application: RACOR R120T
- Notes: Not for Marine Applications
Packaged Dimensions
- Packaged Length: 0.105 m (4.20 inch)
- Packaged Width: 0.105 m (4.20 inch)
- Packaged Height: 0.243 m (9.70 inch)
- Packaged Weight: 0.985 kg (2.17 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330201725
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| DONGFENG | 4102H1510 | |
| VOLVO | 11110189 | |
| VOLVO | VOE11110189 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| DONGFENG EQ1061T40D5 | - | TRUCK | - | DONGFENG CY4102BZLQ | - |
| DONGFENG EQ1062T40D5 | - | TRUCK | - | DONGFENG CY4102BZQ | - |
| GOLDEN DRAGON XML6700 | - | BUS | - | DONGFENG CY4102BZLQ | - |
| LONGGONG SLK6600 | - | BUS | - | DONGFENG CY4102BZQ | - |
