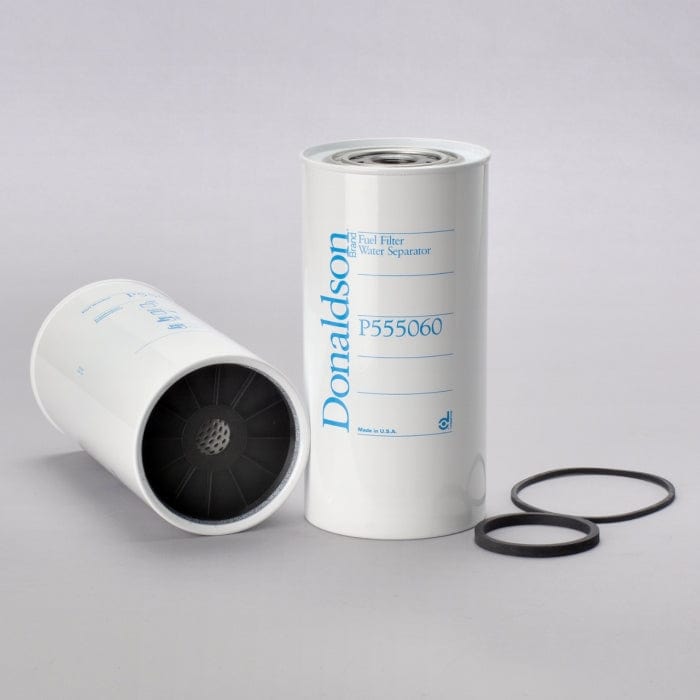

Fuel Filter, Water Separator Spin-On - Donaldson P555060
Fuel Filter, Water Separator Spin-On - Donaldson P555060
Regular price
£44.26
Regular price
Sale price
£44.26
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P555060
Fuel Filter, Water Separator Spin-On| Outer Diameter | 4.38 inch (111.3 mm) |
| Thread Size | 1-14 UN |
| Length | 8.57 inch (217.6 mm) |
| Bowl Thread | 3 3/4-10 UN |
| Efficiency 50% | 3 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95 Percent |
| Collapse Burst | 75 psi (5.2 bar) |
| Type | Water Separator |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | RACOR S3206 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 111.3 mm (4.38 inch)
- Thread Size: 1-14 UN
- Length: 217.6 mm (8.57 inch)
Packaged Dimensions
- Packaged Length: 0.108 m (4.33 inch)
- Packaged Width: 0.108 m (4.33 inch)
- Packaged Height: 0.217 m (8.66 inch)
- Packaged Weight: 0.785 kg (1.73 lb)
- Packaged Volume: 0.003 m3 (0.09 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-08
- HTS Code: 8421230090
- UPC Code: 742330044919
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 95446 | |
| CATERPILLAR | 3I1318 | |
| FREIGHTLINER | DNP555060 | |
| INGERSOLL RAND | 89303002 | |
| LOESING | 025029 | |
| LOESING | 25029 | |
| ORENSTEIN & KOPPEL | 1450138 | |
| TEREX | G6450540 | |
| WIRTGEN | 119393 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| WIRTGEN W 2000 | 1999 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C15 ATAAC | - |
| WIRTGEN W 2100 | 2004 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C18 ATAAC | - |
| WIRTGEN W 2200 | 2010 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C27 ATAAC | - |
| WIRTGEN W1000 | - | FINISHER | - | CATERPILLAR 3126B ATAAC | - |
