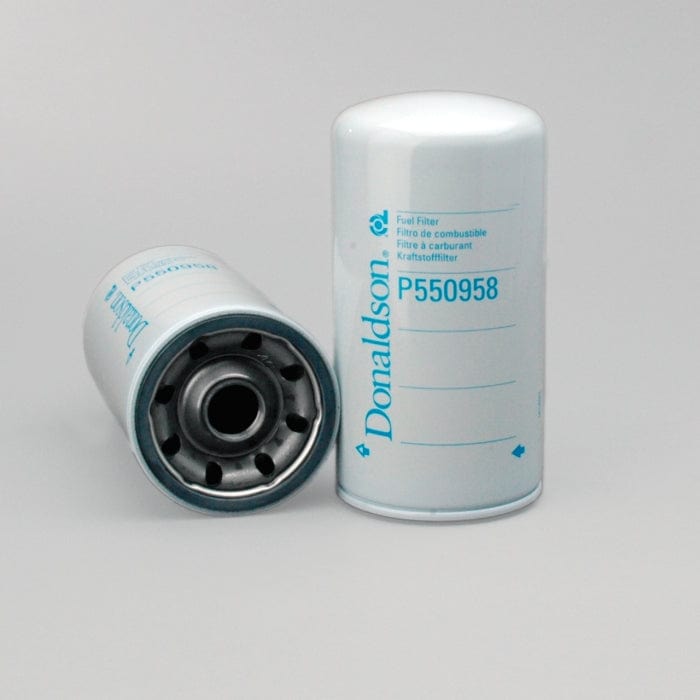

Fuel Filter, Water Separator Spin-On - Donaldson P550958
Fuel Filter, Water Separator Spin-On - Donaldson P550958
Regular price
£32.22
Regular price
Sale price
£32.22
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550958
Fuel Filter, Water Separator Spin-On| Outer Diameter | 4.66 inch (118.3 mm) |
| Thread Size | 1 1/4-12 UN |
| Length | 8.94 inch (227 mm) |
| Gasket OD | 4.33 inch (110 mm) |
| Gasket ID | 3.86 inch (98 mm) |
| Efficiency 99% | 30 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Collapse Burst | 149 psi (10.3 bar) |
| Type | Water Separator |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | KOBELCO 25011024 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 118.3 mm (4.66 inch)
- Thread Size: 1 1/4-12 UN
- Length: 227 mm (8.94 inch)
- Gasket OD: 110 mm (4.33 inch)
- Gasket ID: 98 mm (3.86 inch)
- Efficiency 99%: 30 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 95.00 Percent
- Collapse Burst: 10.3 bar (149 psi)
- Type: Water Separator
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: KOBELCO 25011024
Packaged Dimensions
- Packaged Length: 0.118 m (4.72 inch)
- Packaged Width: 0.118 m (4.72 inch)
- Packaged Height: 0.246 m (9.84 inch)
- Packaged Weight: 1.257 kg (2.77 lb)
- Packaged Volume: 0.004 m3 (0.13 ft3)
Other Information
- Country of Origin: Poland
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330043455
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP958 | |
| AC DELCO | T958 | |
| AC DELCO | T96 | |
| AMERICAN PARTS | 95958 | |
| BEDFORD | 25011024 | |
| BEDFORD | 9576P550958 | |
| BIG A | 95958 | |
| CARBOCOL | TP958 | |
| CATERPILLAR | 9Y4433 | |
| CATERPILLAR | 2266559 | |
| CATERPILLAR | 3I1226 | |
| CHAMP | LFP958F | |
| CHARDONNET | 7255095800 | |
| COOPERS | FSM4015 | |
| CROSLAND | 5010 | |
| DETROIT DIESEL | 23530642 | |
| DETROIT DIESEL | 25014341 | |
| DETROIT DIESEL | 23518528 | |
| DMT CORPORATION | 2531015 | |
| EIMCO | D2NP550958 | |
| EUCLID | E12979439 | |
| FLO-LINE NO. | PF5036 | |
| FREIGHTLINER | DNP550958 | |
| GUARDIAN | G033958 | |
| HAVAM | HD0106 | |
| INGERSOLL RAND | 52248861 | |
| KOBELCO | 25011026 | |
| KOBELCO | 25011024 | |
| KOMATSU | VE0046 | |
| KRALINATOR | F216 | |
| LETOURNEAU | VE0046 | |
| LETOURNEAU | VS7352 | |
| LIEBHERR | 23530642 | |
| MARINE PERFORMANCE | MPL7955 | |
| MTU | 23530642 | |
| NELSON | 85154N | |
| ORENSTEIN & KOPPEL | 8037452 | |
| PERLINI | 25011029 | |
| PERLINI | 702927R | |
| PRO MATCH | 9Y4433 | |
| SDMO | 330560040 | |
| TEREX | T958 | |
| TEREX | 23518528 | |
| TEREX | 15273757 | |
| TFMC | T47555 | |
| TORQUIP | 15273757 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688628 | |
| VMC | FF550958 | |
| VOLVO | 3130928 | |
| WABCO | VE0046 | |
| WALGAHN-MOTORENTECHN | 811354 | |
| WALGAHN-MOTORENTECHN | 00811354 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO ROTAMIC 130C | - | DRILLING EQUIPMENT | - | DETROIT DIESEL 12V-71N | - |
| AVELING-BARFORD CENTAUR 35 | - | DUMP TRUCK | - | DETROIT DIESEL 12V-71 | - |
| AVELING-BARFORD CENTAUR 35 | - | DUMP TRUCK | - | DETROIT DIESEL 16V-71 | - |
| AVELING-BARFORD CENTAUR 40 | - | DUMP TRUCK | - | DETROIT DIESEL 12V-71 | - |
| AVELING-BARFORD CENTAUR 40 | - | DUMP TRUCK | - | DETROIT DIESEL 16V-71 | - |
| AVELING-BARFORD CENTAUR 50 | - | DUMP TRUCK | - | DETROIT DIESEL 16V-71 | - |
| AVELING-BARFORD CENTAUR 50 | - | DUMP TRUCK | - | DETROIT DIESEL 12V-71 | - |
| AVELING-BARFORD RD035 | - | DUMP TRUCK | - | DETROIT DIESEL 12V-71N | - |
| AVELING-BARFORD RD040 | - | DUMP TRUCK | - | DETROIT DIESEL 12V-71N | - |
| AVELING-BARFORD RD050 | - | DUMP TRUCK | - | DETROIT DIESEL 16V-71 | - |
| AVELING-BARFORD RD150 | - | DUMP TRUCK | - | DETROIT DIESEL 16V-71 | - |
| AVELING-BARFORD RD250 | - | DUMP TRUCK | - | DETROIT DIESEL 16V-71 | - |
| AVELING-BARFORD RD255 | - | DUMP TRUCK | - | DETROIT DIESEL 16V-71 | - |
| BARBER-GREENE RX80 | - | PLANER | - | DETROIT DIESEL 16V-92 | - |
| BENATI BEN 40S | - | SHOVEL | - | DETROIT DIESEL 12V-71N | - |
| CHAMPION ROAD 100T | - | GRADER | - | DETROIT DIESEL 16V-71 | - |
| CHAMPION ROAD 80T | - | GRADER | - | DETROIT DIESEL 16V-71 | - |
| CLARK 380B | - | DOZER WHEELED | - | DETROIT DIESEL 16V-71N | - |
| CLARK 475C | - | LOADER WHEELED | - | DETROIT DIESEL 16V-92N | - |
| DEMAG H 185 S | - | EXCAVATOR TRACKED | - | - H 185 S | - |
| DEMAG H 285 S | - | EXCAVATOR TRACKED | - | - H 285 S | - |
| DETROIT DIESEL 12V-149 | - | ENGINE | - | - 12V-149 | - |
| DETROIT DIESEL 12V-71 | - | ENGINE | - | - 12V-71 | - |
| DETROIT DIESEL 12V-71T | - | ENGINE | - | - 12V-71T | - |
| DETROIT DIESEL 12V-92 | - | ENGINE | - | - 12V-92 | - |
| DETROIT DIESEL 16V-149 | - | ENGINE | - | - 16V-149 | - |
| DETROIT DIESEL 16V-149T | - | ENGINE | - | - 16V-149T | - |
| DETROIT DIESEL 16V-71 | - | ENGINE | - | - 16V-71 | - |
| DETROIT DIESEL 16V-71T | - | ENGINE | - | - 16V-71T | - |
| DETROIT DIESEL 16V-92 | - | ENGINE | - | - 16V-92 | - |
| DETROIT DIESEL 16V-92T | - | ENGINE | - | - 16V-92T | - |
| DETROIT DIESEL 20V-149 | - | ENGINE | - | - 20V-149 | - |
| DETROIT DIESEL 8V-149 | - | ENGINE | - | - 8V-149 | - |
| DETROIT DIESEL 8V-71 | - | ENGINE | - | - 8V-71 | - |
| DETROIT DIESEL 8V-71T | - | ENGINE | - | - 8V-71T | - |
| DETROIT DIESEL SERIES 2000 | - | ENGINE | - | - SERIES 2000 | - |
| EUCLID 1100 | - | HAUL TRUCK | - | DETROIT DIESEL SERIES 2000 | - |
| EUCLID R190C | - | HAUL TRUCK | - | - R190C | - |
| FURUKAWA HMK260 | - | LOADER | - | DETROIT DIESEL 16V-71T | - |
| INGERSOLL RAND D1400 | - | COMPRESSOR | - | DETROIT DIESEL 12V-71 | - |
| INGERSOLL RAND D2000 | - | COMPRESSOR | - | DETROIT DIESEL 16V-71 | - |
| INGERSOLL RAND D900 | - | COMPRESSOR | - | - D900 | - |
| INGERSOLL RAND DM50 | - | DRILLING EQUIPMENT | - | DETROIT DIESEL 12V-71N | - |
| JOY RPQ1600 | - | COMPRESSOR | - | DETROIT DIESEL 12V-71N | - |
| JOY RPS1600 | - | COMPRESSOR | - | DETROIT DIESEL 12V-71N | - |
| KOMATSU 210M | - | HAUL TRUCK | - | DETROIT DIESEL 16V-71T | - |
| KOMATSU 445E | - | DUMP TRUCK | - | - 445E | - |
| KOMATSU 510E | - | HAUL TRUCK | - | DETROIT DIESEL 12V-149 TIB | - |
| KOMATSU 630E | - | DUMP TRUCK | - | - 630E | - |
| KOMATSU 685E | - | DUMP TRUCK | - | - 685E | - |
| KOMATSU 780E | - | DUMP TRUCK | - | - 780E | - |
| KOMATSU 830E | - | HAUL TRUCK | - | DETROIT DIESEL 16V-149 | - |
| KOMATSU PC4000 | - | SHOVEL | - | DETROIT DIESEL 12V-149 | - |
| LECTRA HAUL MT3600 | - | HAUL TRUCK | - | DETROIT DIESEL 16V-149 | - |
| LECTRA HAUL MT3700 | - | HAUL TRUCK | - | DETROIT DIESEL 16V-149 | - |
| LECTRA HAUL MT4000 | - | HAUL TRUCK | - | DETROIT DIESEL 16V-149 | - |
| LEROI Q1500DC | - | COMPRESSOR | - | DETROIT DIESEL 12V-71 | - |
| PERLINI DP655 | - | DUMP TRUCK | - | DETROIT DIESEL 12V-92TA | - |
| QUINCY COMPRESSOR QS1750DQ | - | COMPRESSOR | - | DETROIT DIESEL 12V-71T | - |
| TEREX 33-09AA | - | HAUL TRUCK | - | - 33-09AA | - |
| TEREX 5528 | - | SCRAPER | - | DETROIT DIESEL 12V-71 | - |
| TEREX 5540 | - | SCRAPER | - | DETROIT DIESEL 12V-71 | - |
| TEREX 90C | - | LOADER | - | DETROIT DIESEL 12V-71TA | - |
| TEREX D800 | - | DOZER TRACKED | - | - D800 | - |
| TEREX HMK260 | - | CRANE MOBILE | HMK SERIES | DETROIT DIESEL 16V-71T | - |
| TEREX S32 | - | SCRAPER | - | DETROIT DIESEL 12V-71 | - |
| TEREX S32 | - | SCRAPER | - | DETROIT DIESEL 16V-71 | - |
| TEREX S35 | - | SCRAPER | - | DETROIT DIESEL 12V-71 | - |
| TEREX S35 | - | SCRAPER | - | DETROIT DIESEL 16V-71 | - |
| TEREX TR100 | - | DUMP TRUCK | TR SERIES | DETROIT DIESEL 16V-2000TA | - |
| TEREX TR70 | - | DUMP TRUCK | TR SERIES | - TR70 | - |
| UNIT RIG EQUIPMENT MT3600 | - | HAUL TRUCK | - | DETROIT DIESEL 16V-149 | - |
| UNIT RIG EQUIPMENT MT3700 | - | HAUL TRUCK | - | DETROIT DIESEL 16V-149 | - |
| UNIT RIG EQUIPMENT MT4000 | - | HAUL TRUCK | - | - MT4000 | - |
| UNIT RIG EQUIPMENT MT4000 LECTRA HAUL | - | HAUL TRUCK | - | DETROIT DIESEL 16V-149 | - |
