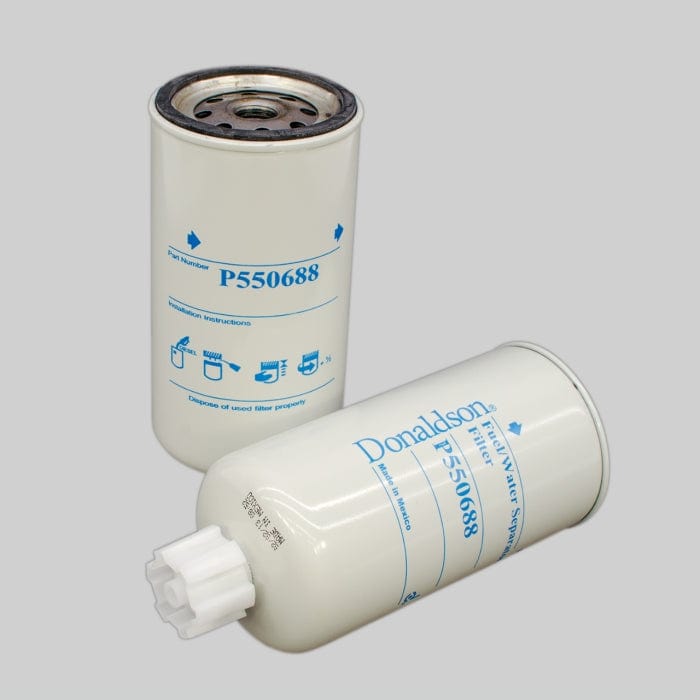

Fuel Filter, Water Separator Spin-On - Donaldson P550688
Fuel Filter, Water Separator Spin-On - Donaldson P550688
Regular price
£16.58
Regular price
Sale price
£16.58
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550688
Fuel Filter, Water Separator Spin-On| Outer Diameter | 3.05 inch (77.5 mm) |
| Thread Size | M16 x 1.5 |
| Length | 6.94 inch (176.3 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.47 inch (62.7 mm) |
| Efficiency 99% | 25 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95 Percent |
| Collapse Burst | 75 psi (5.2 bar) |
| Type | Water Separator |
| Style | Spin-On |
| Media Type | Cellulose |
| Notes | Not for Marine Applications |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 77.5 mm (3.05 inch)
- Thread Size: M16 x 1.5
- Length: 176.3 mm (6.94 inch)
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.100 m (4.00 inch)
- Packaged Height: 0.178 m (7.10 inch)
- Packaged Weight: 0.504 kg (1.11 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-08
- HTS Code: 8421230090
- UPC Code: 742330042885
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BELL | 220048 | |
| BOSCH-REXROTH | F002H22012 | |
| CATERPILLAR | 312139 | |
| CATERPILLAR | 3I2139 | |
| DAVCO | P550688288140 | |
| EIMCO | F3GFS1221 | |
| INGERSOLL RAND | 59985002 | |
| KNECHT | KC6 | |
| LANSING | E780001042 | |
| M.D.F. SARL | MDF1267 | |
| MERLO | A00660 | |
| VMC | FS550688 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| FORD 8160 | - | TRACTOR | - | - 8160 | - |
| FORD 8240 | - | TRACTOR | - | - 8240 | - |
| FORD 8340 | - | TRACTOR | - | - 8340 | - |
