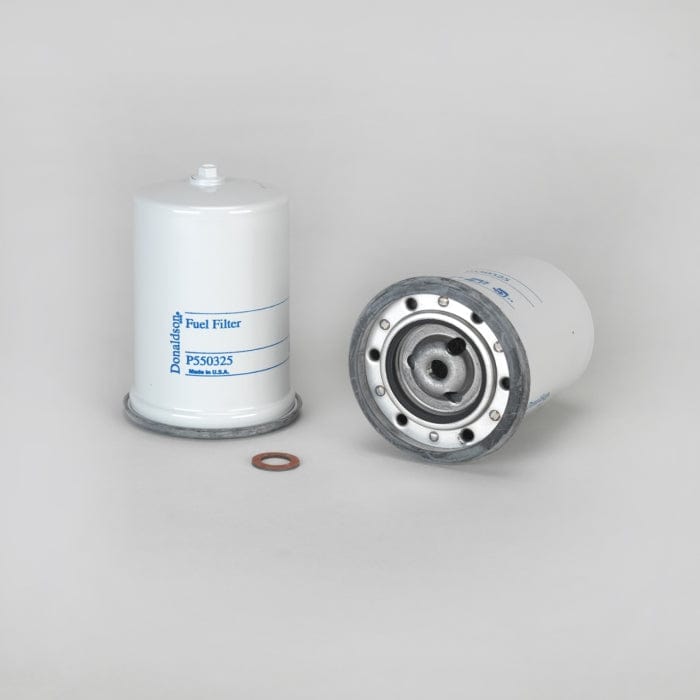

Fuel Filter, Water Separator Spin-On - Donaldson P550325
Fuel Filter, Water Separator Spin-On - Donaldson P550325
Regular price
£38.47
Regular price
Sale price
£38.47
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550325
Fuel Filter, Water Separator Spin-On| Outer Diameter | 3.03 inch (76.96 mm) |
| Thread Size | 7/16-20 UN |
| Length | 4.87 inch (123.69 mm) |
| Gasket OD | 3.02 inch (76.71 mm) |
| Gasket ID | 1.75 inch (44.45 mm) |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Type | Water Separator |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 76.96 mm (3.03 inch)
- Thread Size: 7/16-20 UN
- Length: 123.69 mm (4.87 inch)
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.128 m (5.12 inch)
- Packaged Weight: 0.431 kg (0.95 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421230090
- UPC Code: 742330042212
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP863 | |
| AC DELCO | TP1271 | |
| AMERICAN PARTS | 559 | |
| AMERICAN PARTS | 95365 | |
| BIG A | 95365 | |
| CATERPILLAR | 3I1170 | |
| COOPERS | FSM4008 | |
| FORD | 9576P550325 | |
| FREIGHTLINER | DNP550325 | |
| GREYFRIARS | 816S | |
| GUD | Z99 | |
| KRALINATOR | F167 | |
| ONAN | 122B325 | |
| ONAN | 1220325 | |
| ONAN | 1221325 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688424 | |
| VMC | FF550325 | |
| VOLVO | 84DM007 | |
| WALGAHN-MOTORENTECHN | 00811296 | |
| WALGAHN-MOTORENTECHN | 811296 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| BLAW KNOX 100 | - | PAVER | - | - 100 | - |
| BLAW KNOX 85 | - | PAVER | - | - 85 | - |
| ONAN 15MDJC3R | - | GENERATOR SET | - | - 15MDJC3R | - |
| ONAN 15MDJF | - | GENERATOR SET | - | - 15MDJF | - |
| ONAN 30DJA | - | GENERATOR SET | - | - 30DJA | - |
| ONAN 60DJB | - | GENERATOR SET | - | - 60DJB | - |
| ONAN 6MDJB | - | GENERATOR SET | - | - 6MDJB | - |
| ONAN 6MDJB37 | - | ENGINE | - | - 6MDJB37 | - |
| ONAN 7.5MDJE | - | GENERATOR SET | - | - 7.5MDJE | - |
| ONAN DJA | - | GENERATOR SET | - | ONAN DJ60 | - |
| ONAN DJB | - | GENERATOR SET | - | - DJB | - |
| ONAN DJC | - | GENERATOR SET | - | ONAN DJ60 | - |
| ONAN DJE | - | GENERATOR SET | - | - DJE | - |
| ONAN DKB | - | GENERATOR SET | - | ONAN DJ60 | - |
| ONAN LRDJX | - | ENGINE | - | - LRDJX | - |
| ONAN MDJ | - | GENERATOR SET | - | - MDJ | - |
| ONAN MDJ130 | - | GENERATOR SET | - | - MDJ130 | - |
| ONAN MDJ30 | - | GENERATOR SET | - | - MDJ30 | - |
| ONAN MDJA | - | GENERATOR SET | - | - MDJA | - |
| ONAN MDJB | - | GENERATOR SET | - | - MDJB | - |
| ONAN MDJC | - | GENERATOR SET | - | - MDJC | - |
| ONAN MDJE | - | GENERATOR SET | - | - MDJE | - |
| ONAN MDJF | - | GENERATOR SET | - | - MDJF | - |
| ONAN RDJC | - | GENERATOR SET | - | - RDJC | - |
