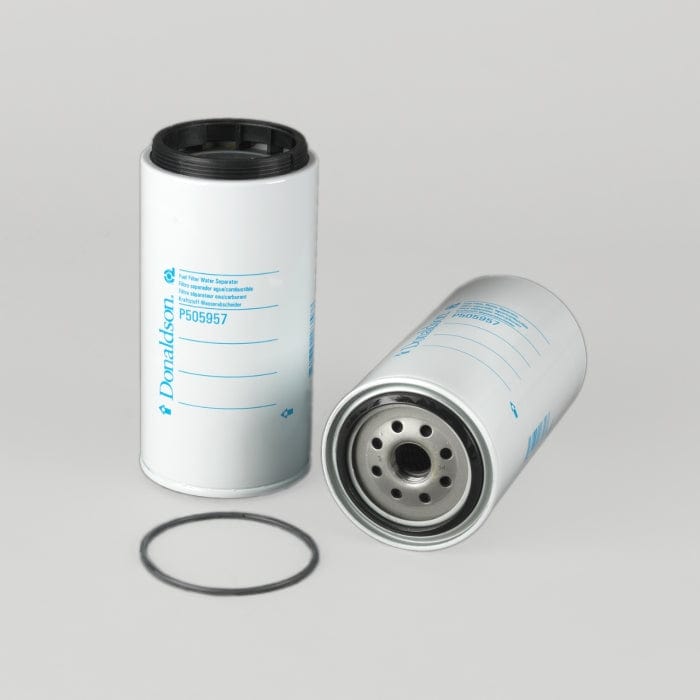

Fuel Filter, Water Separator Spin-On - Donaldson P505957
Fuel Filter, Water Separator Spin-On - Donaldson P505957
Regular price
£39.02
Regular price
Sale price
£39.02
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P505957
Fuel Filter, Water Separator Spin-On| Outer Diameter | 4.29 inch (109 mm) |
| Thread Size | 1-14 UN |
| Length | 8.03 inch (204 mm) |
| Gasket OD | 3.56 inch (90.4 mm) |
| Gasket ID | 3.16 inch (80.3 mm) |
| Efficiency 50% | 3 micron |
| Efficiency 95% | 14 micron |
| Efficiency 99% | 20 micron |
| Efficiency Test Std | ISO 4548-12, JIS D 1617 |
| Type | Water Separator |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | VOLVO 11110474 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 109 mm (4.29 inch)
- Thread Size: 1-14 UN
- Length: 204 mm (8.03 inch)
- Gasket OD: 90.4 mm (3.56 inch)
- Gasket ID: 80.3 mm (3.16 inch)
- Efficiency 50%: 3 micron
- Efficiency 95%: 14 micron
- Efficiency 99%: 20 micron
- Efficiency Test Std: ISO 4548-12
- JIS D 1617:
- Type: Water Separator
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: VOLVO 11110474
Packaged Dimensions
- Packaged Length: 0.120 m (4.80 inch)
- Packaged Width: 0.120 m (4.80 inch)
- Packaged Height: 0.228 m (9.12 inch)
- Packaged Weight: 1.002 kg (2.21 lb)
- Packaged Volume: 0.003 m3 (0.12 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330183588
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CHINA LOCAL | STCX474 | |
| CLAAS | 22438210 | |
| KNECHT | KC369D | |
| SDLG | 11214252 | |
| VOLVO | 11110668 | OEM Bowl Thread Style |
| VOLVO | 11110474 | |
| VOLVO CONSTRUCTION EQUIPMENT | VOE11110688 | |
| XCMG | 800162635 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| SDLG E6125F | - | EXCAVATOR | - | DEUTZ BF4M2012 | - |
| SDLG E6125F | - | EXCAVATOR | - | DEUTZ BF4M2012 | - |
| SDLG E6135F | - | EXCAVATOR | - | SDLG SD40B | - |
| SDLG E6135F | - | EXCAVATOR | - | SDLG SD40B | - |
| SDLG E6150F | - | EXCAVATOR | - | SDLG SD40B | - |
