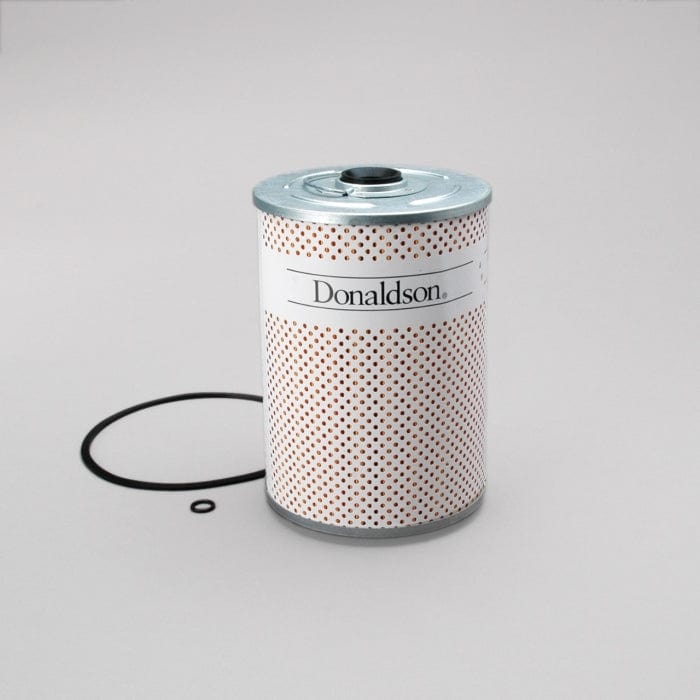

Fuel Filter, Water Separator Cartridge - Donaldson P550316
Fuel Filter, Water Separator Cartridge - Donaldson P550316
Regular price
Ā£37.10
Regular price
Sale price
Ā£37.10
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550316
Fuel Filter, Water Separator Cartridge| Outer Diameter | 5.83 inch (148 mm) |
| Inner Diameter | 0.98 inch (25 mm) |
| Length | 8.07 inch (205 mm) |
| Efficiency 99% | 20 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 90.00 Percent |
| Collapse Burst | 80 psi (5.5 bar) |
| Type | Water Separator |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 148 mm (5.83 inch)
- Inner Diameter: 25 mm (0.98 inch)
- Length: 205 mm (8.07 inch)
- Efficiency 99%: 20 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 90.00 Percent
- Collapse Burst: 5.5 bar (80 psi)
- Type: Water Separator
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.158 m (6.30 inch)
- Packaged Width: 0.158 m (6.30 inch)
- Packaged Height: 0.236 m (9.45 inch)
- Packaged Weight: 1.208 kg (2.66 lb)
- Packaged Volume: 0.006 m3 (0.22 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330042168
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AM GENERAL | 11664669 | |
| AMERICAN PARTS | 95401 | |
| BIG A | 95401 | |
| CASE/CASE IH | L1650559 | |
| CATERPILLAR | 8N205 | |
| CATERPILLAR | 3I1169 | |
| CATERPILLAR | 8N0205 | |
| CATERPILLAR | 2W4234 | |
| CUMMINS | 256559 | |
| CUMMINS | 256476 | |
| CUMMINS | 3380431S | |
| EIMCO | 04530173 | |
| ENMTP CPG | 7402111 | |
| ENMTP CPG | 7363710 | |
| FIAT | 73125620 | |
| FORD | 9576P550316 | |
| FREIGHTLINER | DNP550316 | |
| GROVE | 9437100235 | |
| KRALINATOR | FS746 | |
| LIEBHERR | 7402111 | |
| LIEBHERR | 7363710 | |
| MARINE PERFORMANCE | MPL3120 | |
| ORENSTEIN & KOPPEL | 970216 | |
| ORENSTEIN & KOPPEL | 960216 | |
| POCLAIN | L1650559 | |
| POCLAIN | L1350593 | |
| SANDVIK | 4530173 | |
| SANDVIK | 04530173 | |
| SDMO | 330560549 | |
| SISU | 1273410200 | |
| TEREX | 960216 | |
| TIM | 2W4234 | |
| TIM | 8N0205 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688416 | |
| VMC | FS550316 | |
| WALGAHN-MOTORENTECHN | 00811295 | |
| WALGAHN-MOTORENTECHN | 811295 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 3176B | - | ENGINE | - | - 3176B | - |
| CATERPILLAR 3176C | - | ENGINE | - | - 3176C | - |
| CATERPILLAR 3196 | - | ENGINE | - | - 3196 | - |
| CATERPILLAR 3208 | - | ENGINE | - | CATERPILLAR 3208 | - |
| CATERPILLAR 3208T | - | ENGINE | - | - 3208T | - |
| CATERPILLAR 3304B | - | ENGINE | - | - 3304B | - |
| CATERPILLAR 3304T | - | MARINE ENGINE | - | CATERPILLAR 3304T | - |
| CATERPILLAR 3306 | - | GENERATOR SET | - | CATERPILLAR 3306 ATAAC | - |
| CATERPILLAR 3306B | - | GENERATOR SET | - | - 3306B | - |
| CATERPILLAR 3406 | - | ENGINE | - | CATERPILLAR 3406 | - |
| CATERPILLAR 3406C | - | ENGINE | - | - 3406C | - |
| CATERPILLAR 3408 | - | ENGINE | - | CATERPILLAR 3408 | - |
| CATERPILLAR 3408B | - | ENGINE | - | - 3408B | - |
| CATERPILLAR 3408C | - | ENGINE | - | - 3408C | - |
| CATERPILLAR 3412B | - | ENGINE | - | - 3412B | - |
| CATERPILLAR 3412C | - | ENGINE | - | - 3412C | - |
| CATERPILLAR 3412E | - | ENGINE | - | - 3412E | - |
| CATERPILLAR 3412T | - | MARINE ENGINE | - | CATERPILLAR 3412T | - |
| CATERPILLAR 3412TA | - | MARINE ENGINE | - | CATERPILLAR 3412TA | - |
| CATERPILLAR C12 | - | ENGINE | - | CATERPILLAR C12 | - |
| CATERPILLAR R1700 II | - | LOADER WHEELED | - | - R1700 II | - |
| FORD TRANSCONTINENTAL | - | TRUCK | - | CUMMINS NTC | - |
| GROVE 1012 | - | CRANE | - | - 1012 | - |
| GROVE 2535 | - | CRANE | - | - 2535 | - |
| GROVE RT500 | - | CRANE MOBILE | - | - RT500 | - |
| GROVE RT58A | - | CRANE MOBILE | - | - RT58A | - |
| GROVE TD500 | - | CRANE MOBILE | - | - TD500 | - |
| GROVE TM200C | - | CRANE MOBILE | - | - TM200C | - |
| GROVE TM2500 | - | CRANE MOBILE | - | MAN D2566 | - |
| GROVE TM2500 | - | CRANE MOBILE | - | MAN D2542 | - |
| GROVE TM875 | - | CRANE MOBILE | - | - TM875 | - |
| GROVE TMS185 | - | CRANE MOBILE | - | - TMS185 | - |
| GROVE TMS200 | - | CRANE MOBILE | - | - TMS200 | - |
| GROVE TMS250 | - | CRANE MOBILE | - | - TMS250 | - |
| GROVE TMS300 | - | CRANE MOBILE | - | CUMMINS NTCC240 | - |
| GROVE TMS300B | - | CRANE MOBILE | - | - TMS300B | - |
| GROVE TMS475 | - | CRANE MOBILE | - | CUMMINS NTCC240 | - |
| GROVE TMS500 | - | CRANE MOBILE | - | - TMS500 | - |
| GROVE TMS760 | - | CRANE MOBILE | - | - TMS760 | - |
| GROVE TMS865 | - | CRANE MOBILE | - | - TMS865 | - |
| PETERBILT 320 | - | TRUCK | - | CATERPILLAR C10 | - |
| PETERBILT 320 | - | TRUCK | - | CATERPILLAR C11 | - |
| PETERBILT 357 | - | TRUCK | - | CATERPILLAR C10 | - |
| PETERBILT 357 | - | TRUCK | - | CATERPILLAR C12 | - |
| PETERBILT 362 | - | TRUCK | - | CATERPILLAR C10 | - |
| PETERBILT 362 | - | TRUCK | - | CATERPILLAR C12 | - |
| PETERBILT 378 | - | TRUCK | - | CATERPILLAR C10 | - |
| PETERBILT 378 | - | TRUCK | - | CATERPILLAR C12 | - |
| PETERBILT 379 | - | TRUCK | - | CATERPILLAR C12 | - |
| PETERBILT 379 | - | TRUCK | - | CATERPILLAR C10 | - |
| PETERBILT 379X | - | TRUCK | - | CATERPILLAR C10 | - |
| PETERBILT 379X | - | TRUCK | - | CATERPILLAR C12 | - |
| PETERBILT 387 | - | TRUCK | - | CATERPILLAR C12 | - |
