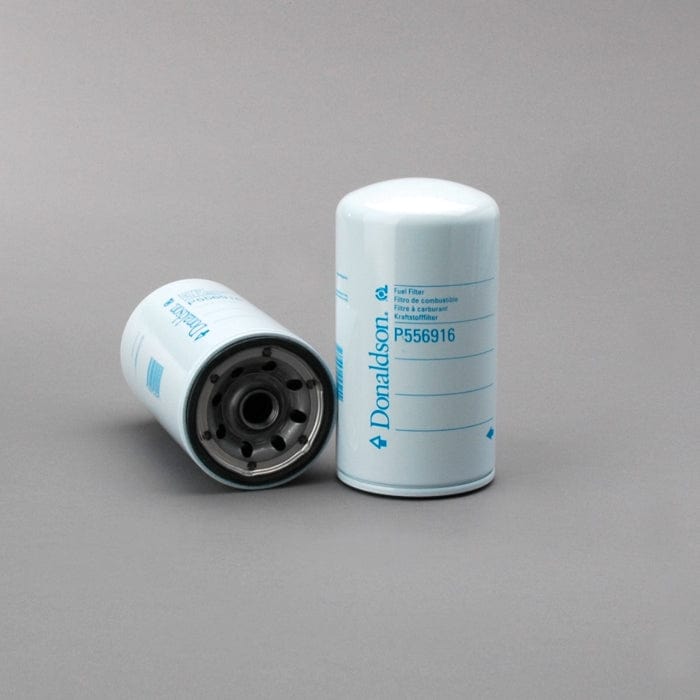

Fuel Filter, Spin-On Secondary - Donaldson P556916
Fuel Filter, Spin-On Secondary - Donaldson P556916
Regular price
Ā£9.88
Regular price
Sale price
Ā£9.88
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P556916
Fuel Filter, Spin-On Secondary| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 13/16-12 UN |
| Length | 6.85 inch (174 mm) |
| Gasket OD | 3.39 inch (86.2 mm) |
| Gasket ID | 3.05 inch (77.5 mm) |
| Efficiency 99% | 9 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 75 psi (5.2 bar) |
| Type | Secondary |
| Style | Spin-On |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 13/16-12 UN
- Length: 174 mm (6.85 inch)
- Gasket OD: 86.2 mm (3.39 inch)
- Gasket ID: 77.5 mm (3.05 inch)
- Efficiency 99%: 9 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 5.2 bar (75 psi)
- Type: Secondary
- Style: Spin-On
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.30 FT
- Packaged Width: 0.30 FT
- Packaged Height: 0.58 FT
- Packaged Weight: 0.672 kg (1.48 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330045244
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF902 | |
| AC DELCO | 12916 | |
| AC DELCO | TP916D | |
| AC DELCO | TP916L | |
| AC DELCO | TP916 | |
| AC DELCO | T93 | |
| AC DELCO | T916D | |
| AC DELCO | T916 | |
| AC DELCO | TP816 | |
| AG CHEM EQUIPMENT | 29463 | |
| AGCO | 029463 | |
| AGCO | 72526444 | |
| ALCO | SP885 | |
| AMERICAN MOTORS CORPORATION | SFF6916 | |
| AMERICAN MOTORS CORPORATION | FC50010 | |
| AMERICAN PARTS | 95120MP | |
| AMERICAN PARTS | 95120 | |
| AMERICAN PARTS | 543 | |
| ATLAS COPCO | 23518482 | |
| ATLAS COPCO | 23530707 | |
| ATLAS COPCO | 9709001002 | |
| ATLAS COPCO | 5540862500 | |
| AVELING-BARFORD | SWT603100 | |
| AVELING-BARFORD | 9576P550916 | |
| AVELING-BARFORD | SL603100 | |
| AVELING-BARFORD | 6438840 | |
| BARKO HYDRAULICS | 53501137 | |
| BEDFORD | 6438840 | |
| BEDFORD | 9576P556916 | |
| BEDFORD | 25010778 | |
| BERGERAT MONNOYEUR | E6694 | |
| BIG A | 95120MP | |
| BIG A | 95120 | |
| BIG A | 591 | |
| BIG A | 543 | |
| BOMAG | 853535034 | |
| BUS INDUSTRIES | 010501020 | |
| CARRIER TRANSICOLD | 300038100P12 | |
| CASE/CASE IH | 7722935 | |
| CASE/CASE IH | 469442C1 | |
| CATERPILLAR | 3I1218 | |
| CATERPILLAR | 3I0751 | |
| CATERPILLAR | 8T3910 | |
| CATERPILLAR | 3I1991 | |
| CATERPILLAR | 2266562 | |
| CATERPILLAR | 9Y4418 | |
| CHAMP | FP816F | |
| CHAMP | LFP816F | |
| CHARDONNET | 7255091600 | |
| CHRYSLER | L305 | |
| CLARK | 949839 | |
| CLARK | 3576061 | |
| CLARK | 1992214 | |
| CLARK | 961985 | |
| CLARK,J.L. | 1992214 | |
| CMI | 42828002 | |
| COOP | FF816 | |
| COOPERS | AZF052 | |
| COOPERS | Z129 | |
| CROSLAND | 9302 | |
| CYCLONE | PM498 | |
| DELUXE | WD395 | |
| DELUXE | 395 | |
| DETROIT DIESEL | 25013261 | |
| DETROIT DIESEL | 23518530 | |
| DETROIT DIESEL | 25014342 | |
| DETROIT DIESEL | TP916D | |
| DETROIT DIESEL | 23530707 | |
| DETROIT DIESEL | 23518482 | |
| DITCH WITCH | 155952 | |
| DRESSER | 469442C1 | |
| EIMCO | D2NP550916 | |
| EIMCO | 69016189 | |
| EIMCO | PER96 | |
| EXMAN | FC50010 | |
| EXMAN | SFF6916 | |
| FACET | 1147 | |
| FAMEL | FCS44 | |
| FIAAM | FT4942 | |
| FIAT | 7722935 | |
| FILT | G1208EC | |
| FLO-LINE NO. | PF206 | |
| FLO-LINE NO. | Q816F | |
| FREIGHTLINER | DNP550916 | |
| FREIGHTLINER | DNP556916 | |
| FSA | FF2207 | |
| FURUKAWA | 469442C1 | |
| GMC | 6438836 | |
| GOULD | P498 | |
| GRADALL | 76113482 | |
| GREYFRIARS | 810S | |
| GROVE | 9414400572 | |
| GROVE | 9414100572 | |
| GUARDIAN | G033120 | |
| GUD | Z129 | |
| GUD | Z106A | |
| HAVAM | HD0101 | |
| HITACHI | RE501113 | |
| HITACHI | 7722935 | |
| INGERSOLL RAND | 38495024 | |
| INGERSOLL RAND | 91786137 | |
| INGERSOLL RAND | 38495016 | |
| INGERSOLL RAND | 56928757 | |
| INGERSOLL RAND | 35290600 | |
| INGERSOLL RAND | 52200102 | |
| INGERSOLL RAND | 59512483 | |
| INGERSOLL RAND | 50616879 | |
| INGERSOLL RAND | 35308063 | |
| INGERSOLL RAND | 90304064 | |
| INGERSOLL RAND | 59507376 | |
| INTERNATIONAL | 469442C1 | |
| JOHN DEERE | AT41420 | |
| JOHN DEERE | RE501113 | |
| JOHN DEERE | RE26814B | |
| JOHN DEERE | RE61552 | |
| JOY | 51942111 | |
| KENWORTH | KW206 | |
| KNECHT | KC31 | |
| KOBELCO | 25010778 | |
| KOEHRING | 28982 | |
| KOEHRING | 6438840 | |
| KOEHRING | 202648 | |
| KOEHRING | 853535036 | |
| KOHLER | 279261 | |
| KOMATSU | PB1613 | |
| KORODY COLYER | FBF581 | |
| KRALINATOR | F184A | |
| KRALINATOR | F184 | |
| KRALINATOR | KF184A | |
| KUBOTA | 7009031824 | |
| LETOURNEAU | PB1613 | |
| LEYLAND-DAF (LDV) | ABU8551 | |
| LINDE | E056017004 | |
| LINK BELT | 3A10772 | |
| LOCKHEED | APF3256A | |
| LOCKHEED | AP3256 | |
| LOCKHEED | LK3256 | |
| LOESING | 020664 | |
| LOESING | 20664 | |
| MACK | 2191P556916 | |
| MANITOWOC | 412195 | |
| MARINE PERFORMANCE | MPL498 | |
| MASSEY FERGUSON | AM043910 | |
| MICHIGAN | 3576061 | |
| MULTI PART | ABU8551 | |
| NATIONAL OILWELL | 23530707 | |
| NEOPART | DONP550916 | |
| NOVA BUS CORPORATION | F11B10ACTP916 | |
| ORENSTEIN & KOPPEL | 102631 | |
| ORENSTEIN & KOPPEL | 8025185 | |
| P & H | 1046Z248 | |
| P & H | 6438840 | |
| P.B.R. | BG1524 | |
| PERKINS | AM43910 | |
| PERRY | PF816 | |
| PETERBILT | PB206 | |
| POWER-PART | AM043910 | |
| PREVOST CAR | G1020055 | |
| PRO MATCH | 9Y4418 | |
| PURFLUX | CS428 | |
| QUAKER STATE | QS1147 | |
| QUAKER STATE | QS1147A | |
| RAYGO | 6438840 | |
| ROVER | ABU8551 | |
| SANDVIK | 69016189 | |
| SCHRAMM | 22990004 | |
| SDMO | 330560298 | |
| STEWART & STEVENSON | X301730 | |
| TAMROCK | 4521003 | |
| TAMROCK | 04521003 | |
| TEREX | 23530707 | |
| TEREX | 6438840 | |
| TEREX | 102631 | |
| TEXACO | HDF3 | |
| TFMC | T47763 | |
| TFMC | 3A10772 | |
| TIM | 8T3911 | |
| TIMBERJACK | 411229 | |
| TROJAN | 6954525 | |
| TRUCK CARE | 7206050 | |
| UNION 76 | TP816 | |
| UNIPART | ABU8551 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688596 | |
| UNIVERSAL COACH PARTS | T121003 | |
| UNIVERSAL COACH PARTS | T121018 | |
| VERMEER | 54392001 | |
| VERMEER | 103804001 | |
| VMC | FF556916 | |
| VOLVO | 3130927 | |
| WABCO | PB1613 | |
| WALGAHN-MOTORENTECHN | 811346 | |
| WALGAHN-MOTORENTECHN | 00811346 | |
| WGB | S296CP | |
| WHITE | 27076198 | |
| WHITE | 027076198 | |
| WHITE | 127076198 | |
| YALE | 6954525 |
