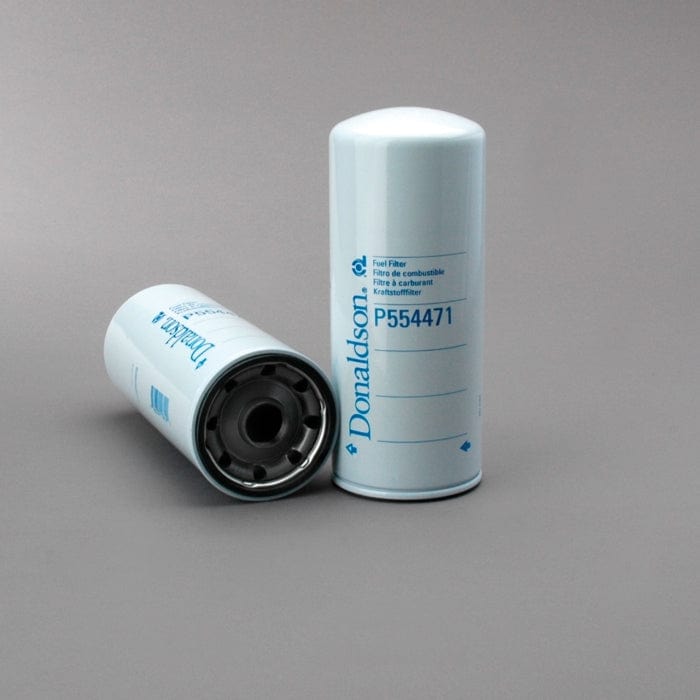

Fuel Filter, Spin-On Secondary - Donaldson P554471
Fuel Filter, Spin-On Secondary - Donaldson P554471
Regular price
Ā£17.86
Regular price
Sale price
Ā£17.86
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P554471
Fuel Filter, Spin-On Secondary| Outer Diameter | 4.23 inch (107.5 mm) |
| Thread Size | M30 x 1.5 |
| Length | 10.31 inch (262 mm) |
| Gasket OD | 3.90 inch (99 mm) |
| Gasket ID | 3.56 inch (90.3 mm) |
| Efficiency 99% | 9 micron |
| Efficiency Test Std | SAE J1858 |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Secondary |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | MACK 483GB471M |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 107.5 mm (4.23 inch)
- Thread Size: M30 x 1.5
- Length: 262 mm (10.31 inch)
- Gasket OD: 99 mm (3.90 inch)
- Gasket ID: 90.3 mm (3.56 inch)
- Efficiency 99%: 9 micron
- Efficiency Test Std: SAE J1858
- Collapse Burst: 6.9 bar (100 psi)
- Type: Secondary
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: MACK 483GB471M
Packaged Dimensions
- Packaged Length: 0.105 m (4.20 inch)
- Packaged Width: 0.106 m (4.25 inch)
- Packaged Height: 0.260 m (10.40 inch)
- Packaged Weight: 1.092 kg (2.41 lb)
- Packaged Volume: 0.003 m3 (0.11 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330108192
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 95587 | |
| KRALINATOR | F359 | |
| MACK | 2191P554471 | |
| MACK | 25502422 | |
| MACK | 483GB471M | |
| VMC | FF554471 | |
| VOLVO | 85114067 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| MACK CH613 | - | TRUCK | - | MACK ASET AC | - |
| MACK CH613 | - | TRUCK | - | MACK E7 | - |
| MACK CL713 | - | TRUCK | - | MACK ASET AMI | - |
| MACK CL713 | - | TRUCK | - | MACK E7 | - |
| MACK CV713 | - | TRUCK | - | MACK ASET AMI | - |
| MACK CV713 | - | TRUCK | - | MACK E7 | - |
| MACK CV713 | - | TRUCK | - | MACK ASET AI | - |
| MACK E7 | - | ENGINE | - | - E7 | - |
| MACK GRANITE | - | TRUCK | - | MACK E7 | - |
| MACK MR690P | - | TRUCK | - | MACK E7 | - |
| MACK MR690P | - | TRUCK | - | MACK ASET AMI | - |
| MACK MR690S | - | TRUCK | - | MACK E7 | - |
