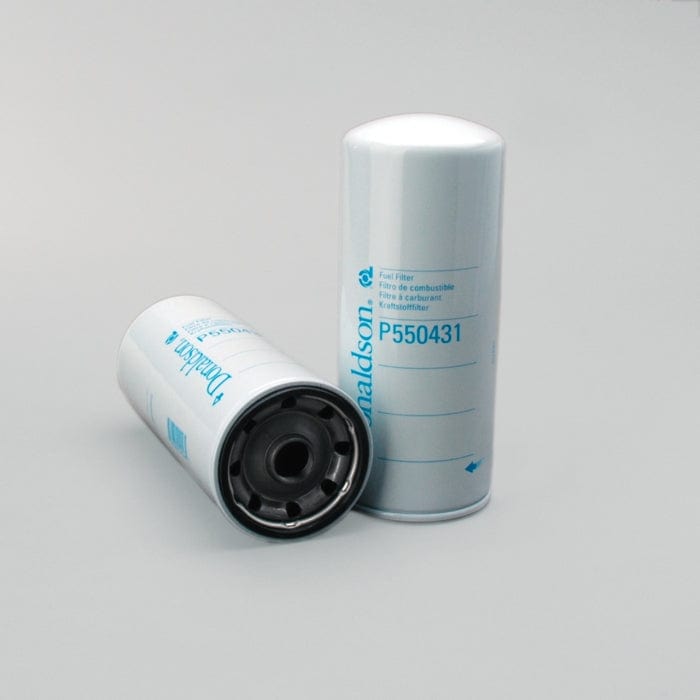

Fuel Filter, Spin-On Secondary - Donaldson P550431
Fuel Filter, Spin-On Secondary - Donaldson P550431
Regular price
Ā£20.40
Regular price
Sale price
Ā£20.40
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550431
Fuel Filter, Spin-On Secondary| Outer Diameter | 4.23 inch (107.5 mm) |
| Thread Size | 1 1/16-16 UN |
| Length | 10.31 inch (262 mm) |
| Gasket OD | 3.90 inch (99 mm) |
| Gasket ID | 3.56 inch (90.3 mm) |
| Efficiency 99% | 9 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Secondary |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | MACK 483GB431 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 107.5 mm (4.23 inch)
- Thread Size: 1 1/16-16 UN
- Length: 262 mm (10.31 inch)
- Gasket OD: 99 mm (3.90 inch)
- Gasket ID: 90.3 mm (3.56 inch)
- Efficiency 99%: 9 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 6.9 bar (100 psi)
- Type: Secondary
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: MACK 483GB431
Packaged Dimensions
- Packaged Length: 0.118 m (4.72 inch)
- Packaged Width: 0.118 m (4.72 inch)
- Packaged Height: 0.256 m (10.24 inch)
- Packaged Weight: 1.090 kg (2.40 lb)
- Packaged Volume: 0.004 m3 (0.13 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 121510
- HTS Code: 8421230090
- UPC Code: 742330042465
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP927 | |
| AMERICAN PARTS | 95216MP | |
| AMERICAN PARTS | 564 | |
| AMERICAN PARTS | 95216 | |
| BIG A | 95216 | |
| BIG A | 564 | |
| CATERPILLAR | 3I1177 | |
| CATERPILLAR | 3I0758 | |
| CATERPILLAR | 9Y4408 | |
| CHAMP | FP431F | |
| CHAMP | LFP431F | |
| DELUXE | 625 | |
| DELUXE | WD625 | |
| FAMEL | FCS23 | |
| FLO-LINE NO. | PF222 | |
| FORD | 9576P550431 | |
| FREIGHTLINER | DNP550431 | |
| GUARDIAN | G033216 | |
| KORODY COLYER | FBF976 | |
| KRALINATOR | F131U | |
| KRALINATOR | F131 | |
| MACK | 483GB435 | |
| MACK | 483GB440 | |
| MACK | 483GB446 | |
| MACK | 2191P5540431 | |
| MACK | 2191P550431 | |
| MACK | 25501624 | |
| MACK | 483GB431 | |
| P.B.R. | BG1551 | |
| PAI INDUSTRIES INC | FFF4551 | |
| PRO MATCH | 9Y4408 | |
| QUAKER STATE | QS3431 | |
| STEWART & STEVENSON | 143744 | |
| TEXACO | HFD6 | |
| TEXACO | HDF6 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688452 | |
| VMC | FF550431 | |
| VOLVO | 3130916 | |
| WALGAHN-MOTORENTECHN | 00811302 | |
| WALGAHN-MOTORENTECHN | 811302 | |
| WGB | S306CP |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| MACK CH613 | - | TRUCK | - | MACK E7 | - |
| MACK CL713 | - | TRUCK | - | MACK E7 | - |
| MACK E6 | - | ENGINE | - | - E6 | - |
| MACK E7 | - | ENGINE | - | - E7 | - |
| MACK E9 | - | ENGINE | - | - E9 | - |
| MACK EM-6 | - | ENGINE | - | - EM-6 | - |
| MACK EM-7 | - | ENGINE | - | - EM-7 | - |
| MACK END-673 | - | ENGINE | - | - END-673 | - |
| MACK END-673A | - | ENGINE | - | - END-673A | - |
| MACK END-673B | - | ENGINE | - | - END-673B | - |
| MACK END-673C | - | ENGINE | - | - END-673C | - |
| MACK END-673D | - | ENGINE | - | - END-673D | - |
| MACK END-673E | - | ENGINE | - | - END-673E | - |
| MACK ENDLT-673 | - | ENGINE | - | - ENDLT-673 | - |
| MACK ENDLT-673C | - | ENGINE | - | - ENDLT-673C | - |
| MACK ENDT-673 | - | ENGINE | - | - ENDT-673 | - |
| MACK ENDT-673A | - | ENGINE | - | - ENDT-673A | - |
| MACK ENDT-673B | - | ENGINE | - | - ENDT-673B | - |
| MACK ENDT-673C | - | ENGINE | - | - ENDT-673C | - |
| MACK ENDT-676 | - | ENGINE | - | - ENDT-676 | - |
| MACK ET-673 | - | ENGINE | - | - ET-673 | - |
| MACK ETAZ-673A | - | ENGINE | - | - ETAZ-673A | - |
| MACK ETAZB-673A | - | ENGINE | - | - ETAZB-673A | - |
| MACK GRANITE | - | TRUCK | - | MACK E9 | - |
| MACK GRANITE | - | TRUCK | - | MACK E7 | - |
| MACK MH613 | - | TRUCK | - | MACK E7 | - |
| MACK PINNACLE | - | TRUCK | - | MACK E9 | - |
