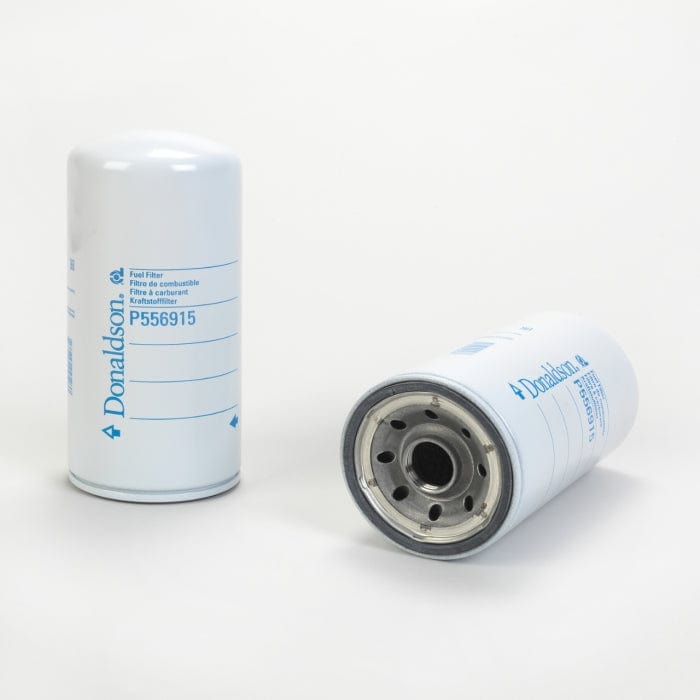

Fuel Filter, Spin-On Primary - Donaldson P556915
Fuel Filter, Spin-On Primary - Donaldson P556915
Regular price
Ā£10.34
Regular price
Sale price
Ā£10.34
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P556915
Fuel Filter, Spin-On Primary| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-12 UN |
| Length | 7.87 inch (200 mm) |
| Gasket OD | 3.39 inch (86.2 mm) |
| Gasket ID | 3.05 inch (77.5 mm) |
| Efficiency 99% | 25 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Primary |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | DETROIT DIESEL 23517471 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-12 UN
- Length: 200 mm (7.87 inch)
- Gasket OD: 86.2 mm (3.39 inch)
- Gasket ID: 77.5 mm (3.05 inch)
- Efficiency 99%: 25 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 6.9 bar (100 psi)
- Type: Primary
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: DETROIT DIESEL 23517471
Packaged Dimensions
- Packaged Length: 0.31 FT
- Packaged Width: 0.31 FT
- Packaged Height: 0.67 FT
- Packaged Weight: 0.740 kg (1.63 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: Colombia
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330045237
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | 12915 | |
| AC DELCO | T815 | |
| AC DELCO | TP915D | |
| AC DELCO | TP915 | |
| AC DELCO | T92 | |
| AC DELCO | T821 | |
| AC DELCO | T915D | |
| AC DELCO | T915 | |
| AC DELCO | TP815 | |
| AG CHEM EQUIPMENT | 29462 | |
| AGCO | 029462 | |
| ALCO | SP884 | |
| AMERICAN MOTORS CORPORATION | FC20150 | |
| AMERICAN MOTORS CORPORATION | SFF6915 | |
| AMERICAN PARTS | 95118 | |
| AMERICAN PARTS | 95118MP | |
| AMERICAN PARTS | 542 | |
| ATLAS COPCO | 9709001001 | |
| AVELING-BARFORD | SWT603101 | |
| AVELING-BARFORD | E6HZ9155E | |
| BEDFORD | 6438839 | |
| BEDFORD | 9576P556915 | |
| BEDFORD | 25010776 | |
| BEDFORD | E6HT9155AA | |
| BEDFORD | E6HT9155M | |
| BEDFORD | 9576P550915 | |
| BEDFORD | E6HT9155A | |
| BIG A | 95118 | |
| BIG A | 95118MP | |
| BIG A | 590 | |
| BIG A | 542 | |
| BOMAG | 853535036 | |
| CASE/CASE IH | E6HZ9155E | |
| CASE/CASE IH | E6HT9155AA | |
| CASE/CASE IH | 7722943 | |
| CATERPILLAR | 3I1217 | |
| CATERPILLAR | 8T3911 | |
| CATERPILLAR | 3I1990 | |
| CATERPILLAR | 2266558 | |
| CATERPILLAR | 9Y4417 | |
| CENEX | CO394 | |
| CHAMP | FP815F | |
| CHAMP | LFP815F | |
| CHARDONNET | 7255091500 | |
| CHRYSLER | L304 | |
| CLARK | 949838 | |
| CLARK | 3576059 | |
| CLARK | 1992216 | |
| CLARK | 961987 | |
| CLARK,J.L. | 3576059 | |
| CLARK,J.L. | 1992216 | |
| CLARK,J.L. | 961987 | |
| CMI | 42828001 | |
| COMPACTION AMERICA | 0398809 | |
| COOP | FF815 | |
| COOPERS | AZF051 | |
| COOPERS | Z128 | |
| CROSLAND | 9303 | |
| CUMMINS | 3324435 | |
| CYCLONE | PM496 | |
| DELUXE | WD394 | |
| DELUXE | 394 | |
| DETROIT DIESEL | 25014274 | |
| DETROIT DIESEL | TP915D | |
| DETROIT DIESEL | 23530706 | |
| DETROIT DIESEL | 23517471 | |
| DETROIT DIESEL | 23518481 | |
| DETROIT DIESEL | 6438839 | |
| DRESSER | 469441C1 | |
| EIMCO | 69016190 | |
| EIMCO | 690 | |
| EXMAN | FC20150 | |
| EXMAN | SFF6915 | |
| FACET | 1146 | |
| FAMEL | FCS43 | |
| FIAAM | FT4941 | |
| FIAT | E6HT9155AA | |
| FIAT | E6HZ9155E | |
| FIAT | 7722943 | |
| FIAT | 7723943 | |
| FIAT | 7723935 | |
| FILT | G1207EC | |
| FLO-LINE NO. | PF207 | |
| FLO-LINE NO. | Q815F | |
| FMC | 208378 | |
| FMC | 3A10771 | |
| FREIGHTLINER | DNP550915 | |
| FREIGHTLINER | DNP556915 | |
| FSA | FF2206 | |
| FURUKAWA | 469441C1 | |
| GILLIG | 8206068002 | |
| GMC | 25014274 | |
| GMC | 6436075 | |
| GMC | 6438839 | |
| GOULD | P496 | |
| GRADALL | 76113483 | |
| GREYFRIARS | 809S | |
| GROVE | 7437000091 | |
| GUARDIAN | G033118 | |
| GUD | Z128 | |
| GUD | Z105A | |
| HAVAM | HD0100 | |
| HESSTON | 7723943 | |
| HESSTON | 7723935 | |
| HITACHI | 7722943 | |
| INGERSOLL RAND | 59518621 | |
| INGERSOLL RAND | 91786129 | |
| INGERSOLL RAND | 56928765 | |
| INGERSOLL RAND | 52261369 | |
| INGERSOLL RAND | 35290618 | |
| INGERSOLL RAND | 50616887 | |
| INGERSOLL RAND | 90303769 | |
| INGERSOLL RAND | 59507384 | |
| INTERNATIONAL | 465680C91 | |
| INTERNATIONAL | 469441C1 | |
| JOHN DEERE | AT41419 | |
| JOHN DEERE | RE268126 | |
| JOHN DEERE | RE26812B | |
| JOY | 51942110 | |
| KENWORTH | KW207 | |
| KNECHT | KC30 | |
| KOBELCO | 25010776 | |
| KOEHRING | 28983 | |
| KOEHRING | 203687 | |
| KOEHRING | 853535034 | |
| KOHLER | 279262 | |
| KOMATSU | 135968 | |
| KOMATSU | PB1612 | |
| KORODY COLYER | FBF580 | |
| KRALINATOR | F183B | |
| KRALINATOR | F183AS | |
| KRALINATOR | F183A | |
| KRALINATOR | F183 | |
| KRALINATOR | KF183AR | |
| KUBOTA | 7009031823 | |
| LETOURNEAU | PB1612 | |
| LEYLAND-DAF (LDV) | ABU8562 | |
| LINDE | E056017002 | |
| LINK BELT | 3A10771 | |
| LOCKHEED | APF3255A | |
| LOCKHEED | AP3255 | |
| LOCKHEED | LK3255 | |
| LOESING | 25062 | |
| MACK | 2191P556915 | |
| MANITOWOC | 412196 | |
| MARINE PERFORMANCE | MPL499 | |
| MASSEY FERGUSON | AM043911 | |
| MASSEY FERGUSON | 3633061M1 | |
| MULTI PART | 8562 | |
| NATIONAL OILWELL | 23530706 | |
| NEOPART | DONP550915 | |
| NEW HOLLAND | E6HT9155AA | |
| NEW HOLLAND | E6HZ9155E | |
| ORENSTEIN & KOPPEL | 102632 | |
| ORENSTEIN & KOPPEL | 8485974 | |
| P & H | 1046Z247 | |
| P & H | 6438839 | |
| P.B.R. | BG1523 | |
| PACCAR | Y06010712 | |
| PERKINS | AMO43911 | |
| PERRY | PF815 | |
| PETERBILT | PB207 | |
| POWER-PART | AM043911 | |
| PRO MATCH | 9Y4417 | |
| QUAKER STATE | QS1146 | |
| RAYGO | 6438839 | |
| ROVER | ABU8562 | |
| SANDVIK | 69033653 | |
| SANDVIK | 69016190 | |
| SCHRAMM | 22990003 | |
| SDMO | 330560297 | |
| STEWART & STEVENSON | X25015 | |
| TAMROCK | 69016190 | |
| TAMROCK | 04521002 | |
| TEREX | 6438839 | |
| TEREX | 102632 | |
| TEXACO | HDF2 | |
| TIMBERJACK | 411227 | |
| TROJAN | 6954847 | |
| TRUCK CARE | 7206040 | |
| UNIPART | ABU8562 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688592 | |
| UNIVERSAL COACH PARTS | T121004 | |
| UNIVERSAL COACH PARTS | T121019 | |
| VERMEER | 54394001 | |
| VMC | FF556915 | |
| VOLVO | 3130926 | |
| WABCO | PB1612 | |
| WALGAHN-MOTORENTECHN | 811345 | |
| WALGAHN-MOTORENTECHN | 00811345 | |
| WGB | S295CP | |
| WHITE | 27076199 | |
| WHITE | 027076199 | |
| WHITE | 127076199 | |
| WHITE | 170010051 | |
| YALE | 6954847 |
