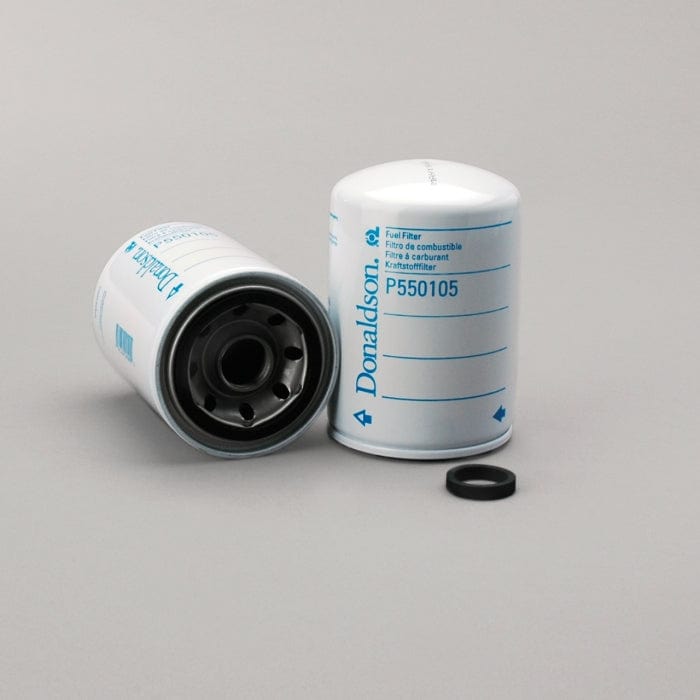

Fuel Filter, Spin-On Primary - Donaldson P550105
Fuel Filter, Spin-On Primary - Donaldson P550105
Regular price
Ā£8.66
Regular price
Sale price
Ā£8.66
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550105
Fuel Filter, Spin-On Primary| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-14 UN |
| Length | 5.35 inch (136 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 25 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | CUMMINS 154709 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-14 UN
- Length: 136 mm (5.35 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 25 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 6.9 bar (100 psi)
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: CUMMINS 154709
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.138 m (5.51 inch)
- Packaged Weight: 0.568 kg (1.25 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Poland
- NMFC Code: 133320
- HTS Code: 8421230090
- UPC Code: 742330040904
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP1261 | |
| AC DELCO | TP629 | |
| ADVANCE MIXER | A0105 | |
| AG CHEM EQUIPMENT | 15909 | |
| ALCO | SP848 | |
| ALLIS-CHALMERS | 4021442 | |
| ALLIS-CHALMERS | 154709 | |
| ALLMAND BROS | 201002 | |
| AMERICAN PARTS | 503 | |
| AMERICAN PARTS | 95109 | |
| AMERICAN PARTS | 95109MP | |
| AMERICAN PARTS | 95107 | |
| AMERICAN PARTS | 539 | |
| AMERICAN PARTS | 529 | |
| AUSTIN-WESTERN | 154709 | |
| AUSTOFT | 180653 | |
| AVELING-BARFORD | SL603050 | |
| AVELING-BARFORD | 5000987 | |
| AVELING-BARFORD | 2002E9176A | |
| AVELING-BARFORD | SWT603050 | |
| BENATI | 3647853 | |
| BERGERAT MONNOYEUR | E6625 | |
| BIG A | 95109 | |
| BIG A | 95109MP | |
| BIG A | 503 | |
| BIG A | 95504 | |
| BLOUNT | 10012187 | |
| BOBCAT | 900009 | |
| BOMAG | 31701105 | |
| BOSCH-REXROTH | 9455160325 | |
| BUFFALO-SPRINGFIELD | 154709 | |
| CASE/CASE IH | C6TZ9155A | |
| CASE/CASE IH | C6TZ9155B | |
| CASE/CASE IH | 72MF9176AA | |
| CASE/CASE IH | F2750506 | |
| CASE/CASE IH | BM59678 | |
| CASE/CASE IH | BH59678 | |
| CASE/CASE IH | 28035 | |
| CASE/CASE IH | V608T118 | |
| CATERPILLAR | 3I0750 | |
| CATERPILLAR | 10012187 | |
| CATERPILLAR | 2266555 | |
| CATERPILLAR | 3I1143 | |
| CATERPILLAR | 3I1144 | |
| CATERPILLAR | 9Y4403 | |
| CATERPILLAR | 9Y4402 | |
| CHAMP | FF5 | |
| CHAMP | LFF5 | |
| CHAMPION ROAD | 24351 | |
| CHICAGO PNEUMATIC | 154709 | |
| CHRYSLER | L56 | |
| CHRYSLER | D156172 | |
| CLARK | M0949095 | |
| CLARK | D156172 | |
| CLARK | 3679734 | |
| CLARK | 126516 | |
| CLARK | 13627 | |
| CLARK,J.L. | 3679734 | |
| CLEAN | DN264B | |
| CLEVELAND | 154709 | |
| CLEVELAND | 24351 | |
| COLES-GROVE | 8766599 | |
| COLT | 31006 | |
| CONOCO | CN33109 | |
| CONSOLIDATED PNEUMATIC | 154709 | |
| CONTINENTAL | PC1103 | |
| COOP | PL4A332 | |
| COOP | P333 | |
| COOP | P476 | |
| COOPERS | AZF002 | |
| COOPERS | Z14 | |
| CRANE CARRIER | 154709 | |
| CROSLAND | 592CUM | |
| CROSLAND | 592 | |
| CUMMINS | BM78672 | |
| CUMMINS | BM78669 | |
| CUMMINS | 3300901 | |
| CUMMINS | 3315804 | |
| CUMMINS | 3315844 | |
| CUMMINS | 252811 | |
| CUMMINS | 3315845 | |
| CUMMINS | 158172 | |
| CUMMINS | FF105 | |
| CUMMINS | FF5 | |
| CUMMINS | C3315844 | |
| CUMMINS | C156172 | |
| CUMMINS | 154700 | |
| CUMMINS | 154709 | |
| CUMMINS | 212013 | |
| CUMMINS | 891733 | |
| CUMMINS | 154710 | |
| CUMMINS | 154711 | |
| CUMMINS | 154744 | |
| CUMMINS | 156171 | |
| CUMMINS | BM76976 | |
| CUMMINS | BM68669 | |
| CYCLONE | PM333 | |
| DAF | C3315844 | |
| DELUXE | FF343 | |
| DELUXE | 344 | |
| DELUXE | 343 | |
| DEMAG | 988689 | |
| DEMAG | 988702 | |
| DEMAG | 988739 | |
| DEMAG | 988732 | |
| DEMAG | 692304 | |
| DIAMOND | DR105 | |
| DIAMOND REO | 891733 | |
| DIAMOND REO | 8917333 | |
| DIAMOND REO | 892868 | |
| DIAMOND T | DR105 | |
| DIAMOND T | 892868 | |
| DIAMOND T | 891733 | |
| DIAMOND T | 8917333 | |
| DIEXA | DX231US | |
| DIEXA | DX15US | |
| DRESSER | 244458R91 | |
| DRESSER | 1212623H1 | |
| EIMCO | 69008930 | |
| EIMCO | 154709 | |
| ENMTP CPG | 7402000 | |
| ENMTP CPG | 7402022 | |
| ERF (E.R.F.) | C156172 | |
| ERF (E.R.F.) | 31006 | |
| EUCLID | 154709 | |
| EUCLID | 6236696 | |
| FIAT | 138637 | |
| FIAT | 4021442 | |
| FIAT | 71497006 | |
| FIAT | 72MF9176AA | |
| FIAT | 1930768 | |
| FIAT | V608T118 | |
| FIAT | 128637 | |
| FIAT | C6TZ9155B | |
| FIAT | C6TZ9155A | |
| FIAT | 76107722 | |
| FIAT | 76190709 | |
| FIAT | 76191167 | |
| FIAT | 138267 | |
| FIL | ZP512FB | |
| FILT | P476 | |
| FILT | G1145EC | |
| FILT | 476 | |
| FODEN | Y02178911 | |
| FODEN | Y02111703 | |
| FODEN | YO2178911 | |
| FODEN | YO2111703 | |
| FODEN | YO5004301 | |
| FODEN | Y02H1703 | |
| FORD | V608T118 | |
| FORD | 6019967 | |
| FORD | C6TZ9155A | |
| FORD | C6TZ9155B | |
| FORD | 9576P550105 | |
| FORD | 1537614 | |
| FORD | 72MF9176AA | |
| FORD | 154709 | |
| FREIGHTLINER | DNP550105 | |
| FSA | FF2008 | |
| FURUKAWA | 1212623H1 | |
| FURUKAWA | 244458R91 | |
| GRADALL | 154709 | |
| GROVE | 9414100481 | |
| GUARDIAN | G033109 | |
| GUARDIAN | G033107 | |
| HARMO | S812 | |
| HAVAM | HD0040 | |
| HEIN-WERNER | 154709 | |
| HESSTON | 700702595 | |
| HINO | 254011010 | |
| HINO | 234011281 | |
| HINO | 234011220 | |
| HINO | 235011010 | |
| HITACHI | 4656586 | |
| HITACHI | 1930768 | |
| HITACHI | 71497006 | |
| HITACHI | 4175915 | |
| HITACHI | L4091472 | |
| HOUGH | 1212623H1 | |
| HUBER WARCO | 154709 | |
| HUTCHENS | SF231 | |
| HYDROVANE | 2707056 | |
| HYMAC | 154709 | |
| INGERSOLL RAND | 154709 | |
| INGERSOLL RAND | 91671743 | |
| INGERSOLL RAND | 35290535 | |
| INGERSOLL RAND | 35289081 | |
| INTERNATIONAL | 156172R91 | |
| INTERNATIONAL | 135627 | |
| INTERNATIONAL | 244458R92 | |
| INTERNATIONAL | 244342R91 | |
| INTERNATIONAL | 244458R91 | |
| INTERNATIONAL | BM68635 | |
| INTERNATIONAL | 998443R91 | |
| INTERNATIONAL | 1212623H1 | |
| JAEGER | 154709 | |
| JOHN DEERE | 154709 | |
| JOY | 154709 | |
| KAWASAKI | YE3315847 | |
| KAWASAKI | YE404060 | |
| KENWORTH | K251C390 | |
| KENWORTH | KW213 | |
| KENWORTH | KW105 | |
| KNECHT | KC28 | |
| KNECHT | AW8 | |
| KNECHT | EH2211 | |
| KOEHRING | 154709 | |
| KOHLER | 154709 | |
| KOMATSU | 988732 | |
| KOMATSU | 988739 | |
| KOMATSU | 988689 | |
| KOMATSU | 1244483H1 | |
| KOMATSU | CUFF105 | |
| KOMATSU | KC4510 | |
| KOMATSU | 6221716302 | |
| KOMATSU | 154709 | |
| KOMATSU | 6003118321 | |
| KOMATSU | 6003118331 | |
| KOMATSU | 692304 | |
| KORODY COLYER | FBF957 | |
| KORODY COLYER | FBF7557 | |
| KRALINATOR | F44R | |
| KRALINATOR | F220 | |
| KRALINATOR | KF44R | |
| KRUPP | 72642051021 | |
| KRUPP | 726420510201 | |
| KRUPP | 76242051021 | |
| KUBOTA | 72642051021 | |
| LANCER BOSS | 8500674 | |
| LEROI | 154709 | |
| LETOURNEAU | KC4510 | |
| LETOURNEAU | 154709 | |
| LEYLAND | CU1561726 | |
| LEYLAND-DAF (LDV) | CU156172 | |
| LIEBHERR | 7361503 | |
| LIEBHERR | 7402022 | |
| LIEBHERR | 7402000 | |
| LIEBHERR | 8754195 | |
| LIEBHERR | 8766599 | |
| LIMA | 154709 | |
| LINDE | E780113189 | |
| LINK BELT | 3A11535 | |
| LINK BELT | 3A15998 | |
| LISTER PETTER | 00007015 | |
| LOCKHEED | APF3231A | |
| LOCKHEED | APF81302A | |
| LOCKHEED | AP81301 | |
| LOCKHEED | AP81302 | |
| LOCKHEED | LK81302 | |
| LOCKHEED | LK81303 | |
| LOCKHEED | LK81301 | |
| LOCKWOOD | FC368 | |
| LOESING | 25023 | |
| LOESING | 025023 | |
| MACK | 2191P550105 | |
| MAN | 86779400377 | |
| MARINE PERFORMANCE | MPL397 | |
| MASTE | DK23F | |
| MITSUBISHI | ME035394 | |
| MITSUBISHI | ME035532 | |
| MORBARK | 29214193 | |
| MOTAQUIP | 5053722 | |
| MOTAQUIP | 75061536 | |
| NELSON | 154709 | |
| NELSON | 85042A | |
| NELSON WINSLOW | W6L7440 | |
| NELSON WINSLOW | WFF105 | |
| NELSON WINSLOW | WFF105P | |
| NELSON WINSLOW | WFF104 | |
| NELSON WINSLOW | WFF105P | |
| NELSON WINSLOW | W1P2299 | |
| NEOPART | NEOFF105D | |
| NEOPART | DONP550105 | |
| NEOPLAN | DONP550105 | |
| NEW HOLLAND | V608T118 | |
| NEW HOLLAND | C6TZ9155B | |
| NEW HOLLAND | C6TZ9155A | |
| NEW HOLLAND | 72MF9176AA | |
| OLIVER | BM78672 | |
| OMARK MATERIAL HANDLING | 10012187 | |
| ONAN | 1492249 | |
| ORENSTEIN & KOPPEL | 763553 | |
| ORENSTEIN & KOPPEL | 102625 | |
| P & H | 104Z144 | |
| P & H | 1046Z144 | |
| P.B.R. | BG1514 | |
| P.B.R. | BG1528 | |
| PAI INDUSTRIES INC | FT050500 | |
| PAI INDUSTRIES INC | FT050505 | |
| PERRY | PF343 | |
| PETERBILT | PB105 | |
| PETTIBONE | 154709 | |
| PHILLIPS 66 | P231 | |
| PLAXTON | 154709 | |
| POCLAIN | F2750506 | |
| POCLAIN | U1350555 | |
| PRO MATCH | 9Y4403 | |
| PURFLUX | CS163 | |
| QUAKER STATE | QS3528 | |
| QUAKER STATE | QS1103 | |
| RAYGO | 154709 | |
| RENAULT VI | 5000808717 | |
| RENAULT VI | 5001004319 | |
| REYTOR | RF213 | |
| RICKEL | F015909 | |
| RICKEL | F015907 | |
| ROVER | CU156172 | |
| RUSTON BUCYRUS | BM59678 | |
| SAVARA | 92819117 | |
| SCAMMELL | 154700 | |
| SDMO | 330560070 | |
| SEDDON ATKINSON | 210633S1 | |
| SISU | 1273400051 | |
| STAY READY | SRP1101L | |
| STAY READY | SRP1101LFFSD | |
| STEIGER | 28035 | |
| STEIGER | SFD28035 | |
| STEWART & STEVENSON | 143753 | |
| STEWART & STEVENSON | 420005 | |
| TAYLOR | 4026076 | |
| TAYLOR | 154709 | |
| TECALEMIT-TJ | FF2082 | |
| TEREX | F2750506 | |
| TEREX | 763553 | |
| TEREX | 102625 | |
| TEXACO | HDF1 | |
| TFMC | L03512 | |
| TFMC | 3A11535 | |
| TIMBERJACK | 408925 | |
| TORO | 012706510 | |
| TORO | 12706510 | |
| TRANE | 2706066001 | |
| TROJAN | 154709 | |
| TRUCK CARE | 7206070 | |
| UNIPART | CU156172 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688252 | |
| UNITED ENGINE LIFE | 10105 | |
| UNIVERSAL COACH PARTS | T121085 | |
| UNIVERSAL COACH PARTS | T121090 | |
| VERSATILE | 608T118 | |
| VERSATILE | 3315844 | |
| VMC | FF550105 | |
| VME | 6236696 | |
| VME | 120036538 | |
| VOLVO | 3130909 | |
| VOLVO | 6236696 | |
| VOLVO | 991215847 | |
| VOLVO | 891733 | |
| VOLVO | 24351 | |
| WABCO | KC4510 | |
| WALGAHN-MOTORENTECHN | 00811272 | |
| WALGAHN-MOTORENTECHN | 811272 | |
| WARNER & SWASEY | 154709 | |
| WAUKESHA | 892168 | |
| WGB | S254CP | |
| WGB | S253CP | |
| WHITE | 154709 | |
| WHITE | 170035001 | |
| WHITE | 17000008 | |
| WHITE | 891733 | |
| WHITE | 170010008 | |
| WHITE | 892868 | |
| WORTHINGTON | 154709 | |
| YALE | 2999005 |
