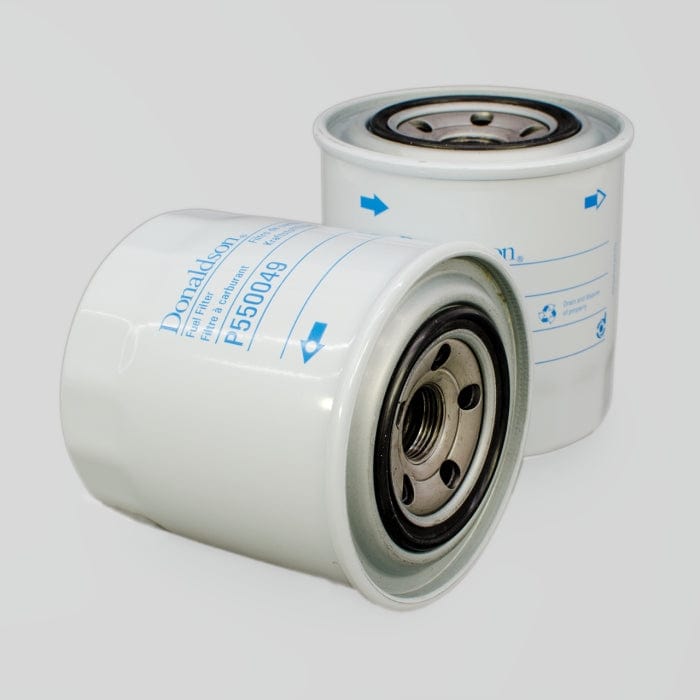

Fuel Filter, Spin-On Primary - Donaldson P550049
Fuel Filter, Spin-On Primary - Donaldson P550049
Regular price
£9.46
Regular price
Sale price
£9.46
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550049
Fuel Filter, Spin-On Primary| Outer Diameter | 3.68 inch (93.5 mm) |
| Thread Size | M20 x 1.5 |
| Length | 3.94 inch (100 mm) |
| Gasket OD | 2.52 inch (64 mm) |
| Gasket ID | 2.28 inch (58 mm) |
| Efficiency 99% | 30 micron |
| Efficiency Test Std | SAE J806 |
| Type | Primary |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | MITSUBISHI ME016823 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93.5 mm (3.68 inch)
- Thread Size: M20 x 1.5
- Length: 100 mm (3.94 inch)
- Gasket OD: 64 mm (2.52 inch)
- Gasket ID: 58 mm (2.28 inch)
- Efficiency 99%: 30 micron
- Efficiency Test Std: SAE J806
- Type: Primary
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: MITSUBISHI ME016823
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.103 m (4.10 inch)
- Packaged Height: 0.118 m (4.70 inch)
- Packaged Weight: 0.531 kg (1.17 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 121510
- HTS Code: 8421230090
- UPC Code: 742330040430
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP1267 | |
| AIRMAN-HOKUETSU | 055923570 | |
| ALCO | SP899 | |
| AMERICAN MOTORS CORPORATION | MF556 | |
| AMERICAN MOTORS CORPORATION | KS566C | |
| AMERICAN MOTORS CORPORATION | SFF6823 | |
| AMERICAN MOTORS CORPORATION | FC15060 | |
| AMERICAN MOTORS CORPORATION | FC14050 | |
| AMERICAN MOTORS CORPORATION | FC14020 | |
| AMERICAN PARTS | 95396 | |
| ASAHI | MF556 | |
| ATLAS | FD8130 | |
| BIG A | 95395 | |
| BIG A | 95396 | |
| BOBCAT | 6599194 | |
| CAM2 | FP570F | |
| CASE/CASE IH | FC405 | |
| CATERPILLAR | 1347572 | |
| CATERPILLAR | ME016823 | |
| CATERPILLAR | 1838187 | |
| CATERPILLAR | 3I1112 | |
| CHAMP | FC352 | |
| CITGO | FP570F | |
| COMPAIR | 1075A68250 | |
| COOPERS | FSM4098 | |
| CROSLAND | 5032 | |
| DAIHATSU | 2330387304000 | |
| DAIHATSU | 2330387304 | |
| EVERGARD | F50305 | |
| EXMAN | MF556 | |
| EXMAN | SFF6823 | |
| EXMAN | FC15060 | |
| EXMAN | KS566C | |
| EXMAN | FC14050 | |
| EXMAN | FC14020 | |
| FORD | E3TZ9155B | |
| FORD | E3TZ9365A | |
| FSA | FF2023 | |
| GEHL | 79757 | |
| GENERAC | 10257778 | |
| GRANT | FP570F | |
| GREYFRIARS | 829S | |
| GREYFRIARS | 881S | |
| GUD | Z137 | |
| HYUNDAI | 3194545001 | |
| HYUNDAI | 521323570 | |
| IAPCO | A0338003 | |
| JOHN DEERE | CH20196 | |
| KOBELCO | 2451R1242A | |
| KOBELCO | MEO16823 | |
| KOMATSU | 37Z02FF461 | |
| KOMATSU | ME016823 | |
| KOMATSU | TK055913850A | |
| KRALINATOR | F123 | |
| KUBOTA | RD15951022 | |
| KUBOTA | 7000034500 | |
| KUBOTA | 1J80043170 | |
| LAZORLITE | L115975 | |
| LAZORLITE | L116335 | |
| LUCAS | F49 | |
| LUCAS | F4983 | |
| MASSEY FERGUSON | 55923570 | |
| MAZDA | 55923570 | |
| MAZDA | FC1705 | |
| MAZDA | TF0113ZA5 | |
| MAZDA | SE0113850 | |
| MAZDA | SE0113850A | |
| MAZDA | SL0113850A | |
| MAZDA | RF0313850B | |
| MAZDA | S21313850 | |
| MAZDA | S21313850A | |
| MAZDA | S21313850B | |
| MAZDA | S21323570 | |
| MAZDA | S21323603 | |
| MAZDA | S21323850B | |
| MAZDA | 055923570 | |
| MAZDA | 055923570A | |
| MAZDA | S23423570 | |
| MERCEDES-BENZ | ME016872049 | |
| MERCEDES-BENZ | ME016872 | |
| MITSUBISHI | ME229272 | |
| MITSUBISHI | ME229355 | |
| MITSUBISHI | ME016872 | |
| MITSUBISHI | ME016823 | |
| PMC | 4219 | |
| RENAULT VI | 35120800 | |
| REPCO | 1131103 | |
| REPCO | 1131105 | |
| SANY | 60235186 | |
| SANY | B222100000589 | |
| TCM | 208010211 | |
| TCM | 2080102112 | |
| THOMAS | 021677 | |
| TOYOTA | 2330387304 | |
| UNION CITY BODY | FC405 | |
| UNOCAL | FC352 | |
| VIC | FC318 | |
| VMC | FF550049 | |
| WAKO | LF36K2 | |
| WARNER & SWASEY | FP570F | |
| WESTERBEKE | 24363 | |
| WORLDPARTS | W27201 | |
| YALE | 900550814 | |
| YANMAR | 12947055700 | |
| YANMAR | 12974055700 | |
| YUTANI | ME016823 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| BOBCAT 843 | - | SKID STEER LOADER | 800 SERIES | PERKINS 4.154 | - |
| CATERPILLAR 306 | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI 4M40 | - |
| CATERPILLAR 307B | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI 4M40 | - |
| CATERPILLAR 307C | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI 4M40 | - |
| CATERPILLAR 307D | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI 4M40 | - |
| CATERPILLAR 308C | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI 4M40 | - |
| CATERPILLAR 313BCR | - | EXCAVATOR TRACKED | 300 SERIES | MITSUBISHI 4D34-TE1 | - |
| FORD ECONOVAN | - | LIGHT TRUCK | - | FORD 2.2L L4 | - |
| GEHL SL5620 | - | SKID STEER LOADER | - | PERKINS 4.154 | - |
| GEHL SL5625DX | - | SKID STEER LOADER | - | PERKINS 204.25 | - |
| GEHL SL5625DX | - | SKID STEER LOADER | - | PERKINS 4.154 | - |
| GEHL SL5625SX | - | SKID STEER LOADER | - | PERKINS 204.25 | - |
| GEHL SL5625SX | - | SKID STEER LOADER | - | PERKINS 4.154 | - |
| GEHL SL6620 | - | SKID STEER LOADER | - | PERKINS 4.154 | - |
| GEHL SL6625 | - | SKID STEER LOADER | - | PERKINS 4.154 | - |
| GEHL SL6625DX | - | SKID STEER LOADER | - | PERKINS 204.30 | - |
| GEHL SL6625SX2 | - | SKID STEER LOADER | - | PERKINS 204.30 | - |
| HITACHI CG45D | - | CARRIER TRACKED | - | - CG45D | - |
| HYUNDAI HDF45 III | - | FORKLIFT | HDF SERIES | HYUNDAI EM 1C | - |
| JOHN DEERE 1250 | - | TRACTOR | 1000 SERIES | - 1250 | - |
| JOHN DEERE 1450 | - | TRACTOR | 1000 SERIES | - 1450 | - |
| JOHN DEERE 1650 | - | TRACTOR | 1000 SERIES | - 1650 | - |
| KATO HD300GS1 | - | CRANE | - | MITSUBISHI 4D31CT | - |
| KATO HD400GS2 | - | CRANE | - | MITSUBISHI 6DS70C | - |
| KATO HD400SEV | - | CRANE | - | MITSUBISHI 4D31T | - |
| KATO HD400V2 | - | CRANE | - | MITSUBISHI 4D31T | - |
| KATO HD450SEV | - | CRANE | - | MITSUBISHI 4D31T | - |
| KOBELCO ED190 BLADERUNNER | - | EXCAVATOR TRACKED | - | - ED190 BLADERUNNER | - |
| KOBELCO LK300 | - | LOADER WHEELED | - | MITSUBISHI 6DR5C | - |
| KOBELCO LK300A | - | LOADER WHEELED | - | MITSUBISHI 6DR5C | - |
| KOBELCO MD120 | - | EXCAVATOR | - | - MD120 | - |
| KOBELCO MD120LC | - | EXCAVATOR | - | MITSUBISHI 4D31T | - |
| KOBELCO MD140BLC | - | EXCAVATOR | - | MITSUBISHI 4D31T | - |
| KOBELCO SK160LC | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D34 | - |
| KOMATSU FD20 | - | FORKLIFT | FG SERIES | ISUZU G207 | - |
| KOMATSU FD35 | - | FORKLIFT | FD SERIES | MITSUBISHI 6DR51 | - |
| KOMATSU FD40 | - | FORKLIFT | FD SERIES | ISUZU DA220 | - |
| KOMATSU FD40-3 | - | FORKLIFT | - | MITSUBISHI 6DR51 | - |
| KUBOTA KX040-4 | - | EXCAVATOR | - | KUBOTA D1803 | - |
| KUBOTA KX042-4 | - | EXCAVATOR | - | KUBOTA D1803 | - |
| MAZDA N-WGL4H | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA P-WGL4M | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA P-WGL4S | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA P-WGL4T | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA P-WGL7T | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA P-WGLAF | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA P-WGLAK | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA P-WGLAM | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA P-WGLAN | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA P-WGLAT | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA T4000 | - | TRUCK | - | ISUZU 4LC1 | - |
| MAZDA U-WGLAD | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA U-WGLAT | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA U-WGT4H | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA U-WGT4T | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA U-WGT7H | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA U-WGT7T | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA U-WGTAE | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA U-WGTAT | - | LIGHT TRUCK | - | MAZDA SL | - |
| MAZDA WGTAT | - | LIGHT TRUCK | - | MAZDA SL | - |
| MITSUBISHI 4D30C | - | ENGINE | - | - 4D30C | - |
| MITSUBISHI 4D30CT | - | ENGINE | - | - 4D30CT | - |
| MITSUBISHI 4D31C | - | ENGINE | - | - 4D31C | - |
| MITSUBISHI 4D31CT | - | ENGINE | - | - 4D31CT | - |
| MITSUBISHI 4D33 | - | ENGINE | - | - 4D33 | - |
| MITSUBISHI 4D34T | - | ENGINE | - | - 4D34T | - |
| MITSUBISHI 4D35 | - | ENGINE | - | - 4D35 | - |
| MITSUBISHI 6DS70C | - | ENGINE | - | - 6DS70C | - |
| MITSUBISHI FE | - | TRUCK | - | - FE | - |
| MITSUBISHI FE444 | - | TRUCK | - | - FE444 | - |
| MITSUBISHI FG | - | TRUCK | - | - FG | - |
| MITSUBISHI FG434 | - | TRUCK | - | - FG434 | - |
| MITSUBISHI FK102 | - | TRUCK | - | - FK102 | - |
| MITSUBISHI FUSO CANTER FE | - | TRUCK | - | MITSUBISHI 4D34T | - |
| MITSUBISHI FUSO CANTER KCFE639 | - | TRUCK | - | MITSUBISHI 4D34T | - |
| MITSUBISHI FUSO CANTER KCFE649 | - | TRUCK | - | MITSUBISHI 4D34T | - |
| MITSUBISHI FUSO Canter FE537 | 1996 - 2002 | TRUCK | - | MITSUBISHI FUSO 4D33-4A 4.2L | - |
| MITSUBISHI FUSO Canter FE539 | 1995 - 1998 | TRUCK | - | MITSUBISHI FUSO 4D34-2A 3.9L | - |
| MITSUBISHI FUSO Canter FE637 | 1996 - 2002 | TRUCK | - | MITSUBISHI FUSO 4D33-4A 4.2L | - |
| MITSUBISHI FUSO Canter FE639 | 1995 - 1998 | TRUCK | - | MITSUBISHI FUSO 4D34-2A 3.9L | - |
| MITSUBISHI FUSO Canter FE647 | 1996 - 2002 | TRUCK | - | MITSUBISHI FUSO 4D33-4A 4.2L | - |
| MITSUBISHI FUSO Canter FE657 | 1996 - 1999 | TRUCK | - | MITSUBISHI FUSO 4D33-4A 4.2L | - |
| MITSUBISHI FUSO Canter FE659 | 1995 - 2002 | TRUCK | - | MITSUBISHI FUSO 4D34-2A 3.9L | - |
| MITSUBISHI FUSO Canter FG637 | 1996 - 2002 | TRUCK | - | MITSUBISHI FUSO 4D33-4A 4.2L | - |
| MITSUBISHI FUSO Canter FG639 | 1995 - 1999 | TRUCK | - | MITSUBISHI FUSO 4D34-2A 3.9L | - |
| MITSUBISHI FUSO ROSA | 2001 - 2002 | BUS | - | MITSUBISHI FUSO BE649 | - |
| MITSUBISHI K-FK102 | - | TRUCK | - | MITSUBISHI 6DS7 | - |
| MITSUBISHI K-MK102 | - | TRUCK | - | - K-MK102 | - |
| MITSUBISHI MS070-8 | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D31C | - |
| MITSUBISHI MS070U-8 | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D31C | - |
| MITSUBISHI MS080W | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D30C | - |
| MITSUBISHI MS090 | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D31C | - |
| MITSUBISHI MS090-8 | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D31C | - |
| MITSUBISHI MS09W | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D31C | - |
| MITSUBISHI MS09WD | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D31C | - |
| MITSUBISHI MS110-3 | - | EXCAVATOR TRACKED | - | MITSUBISHI 6DS70C | - |
| MITSUBISHI MS110-5 | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D30CT | - |
| MITSUBISHI MS110-8 | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D31CT | - |
| MITSUBISHI MS110L-2 | - | EXCAVATOR TRACKED | - | MITSUBISHI 6DS70C | - |
| MITSUBISHI MS110L-3 | - | EXCAVATOR TRACKED | - | MITSUBISHI 6DS70C | - |
| MITSUBISHI MS110L-5 | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D30CT | - |
| MITSUBISHI MS110L-8 | - | EXCAVATOR TRACKED | - | MITSUBISHI 4D31CT | - |
| MITSUBISHI MS120 | - | EXCAVATOR TRACKED | - | MITSUBISHI 6DS70C | - |
| MITSUBISHI MS140 | - | EXCAVATOR TRACKED | - | MITSUBISHI 6DS70C | - |
| SANY SY135 | - | EXCAVATOR TRACKED | - | ISUZU BB4BG1TRP | - |
| THOMAS T173 | - | SKID STEER LOADER | - | KUBOTA V2203E | - |
| THOMAS T183HD | - | SKID STEER LOADER | - | KUBOTA V2203 | - |
| THOMAS T203HD | - | SKID STEER LOADER | - | KUBOTA V2203 | - |
| THOMAS T233HD | - | SKID STEER LOADER | - | KUBOTA S2800B | - |
