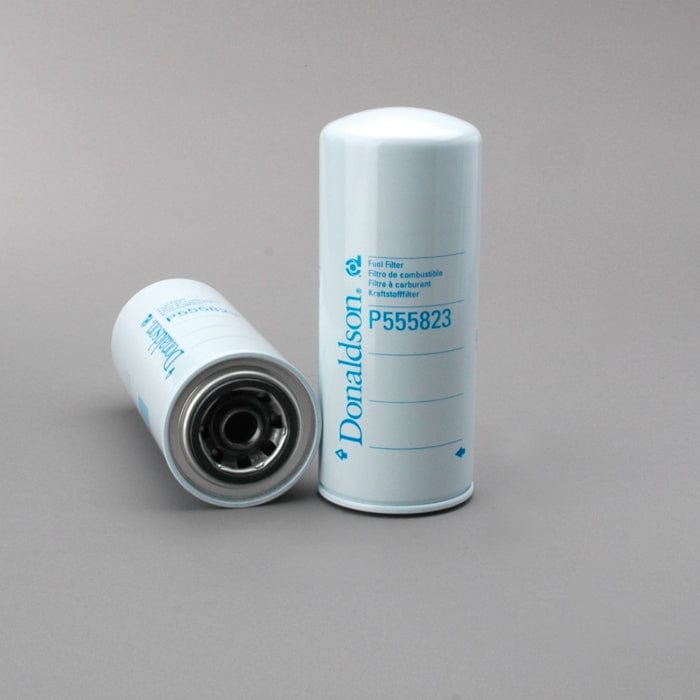

Fuel Filter, Spin-On - Donaldson P555823
Fuel Filter, Spin-On - Donaldson P555823
Regular price
Ā£18.80
Regular price
Sale price
Ā£18.80
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P555823
Fuel Filter, Spin-On| Outer Diameter | 4.23 inch (107.5 mm) |
| Thread Size | 1-14 UN |
| Length | 10.31 inch (262 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 9 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Secondary |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | CATERPILLAR 4N5823 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 107.5 mm (4.23 inch)
- Thread Size: 1-14 UN
- Length: 262 mm (10.31 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 9 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 6.9 bar (100 psi)
- Type: Secondary
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: CATERPILLAR 4N5823
Packaged Dimensions
- Packaged Length: 0.35 FT
- Packaged Width: 0.35 FT
- Packaged Height: 0.86 FT
- Packaged Weight: 1.149 kg (2.53 lb)
- Packaged Volume: 0.003 m3 (0.11 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330045084
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP920 | |
| AMERICAN PARTS | 555 | |
| AMERICAN PARTS | 95384 | |
| AMERICAN PARTS | 95384MP | |
| BERGERAT MONNOYEUR | E6767 | |
| BIG A | 555 | |
| BIG A | 95384 | |
| BIG A | 95384MP | |
| CARBOCOL | 756908 | |
| CARBOCOL | FF211 | |
| CATERPILLAR | 2W2134 | |
| CATERPILLAR | 4N5823 | |
| CATERPILLAR | 8T7453 | |
| CATERPILLAR | 81531453 | |
| CATERPILLAR | 81511007 | |
| CATERPILLAR | 494145823 | |
| CHAMP | LFF5823 | |
| CHAMP | FP5823 | |
| CMI | 494145823 | |
| COOPERS | FSM4000 | |
| CROSLAND | 9337 | |
| DELUXE | WD607 | |
| DELUXE | 607 | |
| DEMAG | DMAG | |
| DRILTECH | 1002064 | |
| EIMCO | 04530148 | |
| EIMCO | 4530148 | |
| EIMCO | 69008949 | |
| EIMCO | D2NP555823 | |
| FIAAM | FT4939 | |
| FIL | ZP591F | |
| FLO-LINE NO. | PF211 | |
| FODEN | Y05017203 | |
| FORD | 9576P555823 | |
| FREIGHTLINER | DNP555823 | |
| GIF | GF201 | |
| GROVE | 9414100364 | |
| GUARDIAN | G033384 | |
| GUD | Z245 | |
| HESCO | 4N5823 | |
| INGERSOLL RAND | 58148628 | |
| INGERSOLL RAND | 38480745 | |
| INGERSOLL RAND | 4N5823 | |
| JOY | 51942113 | |
| KENWORTH | KW211 | |
| KNECHT | KC29 | |
| KORODY COLYER | FBF584 | |
| KRALINATOR | F198U | |
| KRALINATOR | F198 | |
| KRALINATOR | 33384 | |
| LOESING | 025003 | |
| LOESING | 25003 | |
| MARINE PERFORMANCE | MPL403 | |
| MORBARK | 29245332 | |
| ORENSTEIN & KOPPEL | 102643 | |
| ORENSTEIN & KOPPEL | 1450340 | |
| ORENSTEIN & KOPPEL | 102634 | |
| P.B.R. | BG1525 | |
| P.B.R. | BG5823 | |
| PACCAR | Y05017203 | |
| SANDVIK | 69008949 | |
| STEIGER | 12334 | |
| STEIGER | 012334 | |
| STEWART & STEVENSON | 158822 | |
| TAMROCK | 69008949 | |
| TEHO | OK133 | |
| TEREX | 102634 | |
| TEREX | 102643 | |
| TEXACO | HDF12 | |
| TIM | 8T7453 | |
| TODD GT | 2241107 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688936 | |
| VERMEER | 121491001 | |
| VERMEER | 121494001 | |
| VMC | FF555823 | |
| VOLVO | 3130944 | |
| VOLVO | V1111843 | |
| WALGAHN-MOTORENTECHN | 811441 | |
| WALGAHN-MOTORENTECHN | 00811441 | |
| WIRTGEN | 1878 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AG CHEM EQUIPMENT 9103 | - | SPRAYER | TERRAGATOR | CATERPILLAR 3176C | - |
| AVELING-BARFORD 033 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| AVELING-BARFORD 035 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| AVELING-BARFORD 040 | - | TRACTOR | - | CATERPILLAR 3408 | - |
| AVELING-BARFORD 135 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| AVELING-BARFORD RD035 | - | DUMP TRUCK | - | CATERPILLAR 3406 | - |
| AVELING-BARFORD RD040 | - | DUMP TRUCK | - | CATERPILLAR 3408 DITA | - |
| AVELING-BARFORD RD135 | - | DUMP TRUCK | - | CATERPILLAR 3406 | - |
| AWD MTM55 | 1988 | TRUCK | - | CATERPILLAR 3406B | - |
| AWD MTM70 | 1988 | TRUCK | - | CATERPILLAR 3406B | - |
| AWD TM40 | 1988 | TRUCK | - | CATERPILLAR 3406B | - |
| CASE/CASE IH CS280 | - | TRACTOR | - | - CS280 | - |
| CASE/CASE IH CS325 | - | TRACTOR | - | - CS325 | - |
| CASE/CASE IH CS360 | - | TRACTOR | - | - CS360 | - |
| CASE/CASE IH PANTHER IV | - | TRACTOR | - | KOMATSU SA6D125-1 | - |
| CATERPILLAR 235 | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3306 | - |
| CATERPILLAR 245 | - | EXCAVATOR TRACKED | 200 SERIES | CATERPILLAR 3406 | - |
| CATERPILLAR 3406 | - | ENGINE | - | CATERPILLAR 3406 | - |
| CATERPILLAR 3406T | - | MARINE ENGINE | - | CATERPILLAR 3406T | - |
| CATERPILLAR 3406TA | - | GENERATOR SET | - | CATERPILLAR 3406TA | - |
| CATERPILLAR 3408 | - | ENGINE | - | CATERPILLAR 3408 | - |
| CATERPILLAR 3412C | - | ENGINE | - | - 3412C | - |
| CATERPILLAR 3412E | - | ENGINE | - | - 3412E | - |
| CATERPILLAR 3412T | - | MARINE ENGINE | - | CATERPILLAR 3412T | - |
| CATERPILLAR 3412TA | - | MARINE ENGINE | - | CATERPILLAR 3412TA | - |
| CATERPILLAR 3512 | - | ENGINE | - | - 3512 | - |
| CATERPILLAR 621 | - | TRACTOR | - | - 621 | - |
| CATERPILLAR 621R | - | SCRAPER | - | - 621R | - |
| CATERPILLAR 623 | - | TRACTOR | - | - 623 | - |
| CATERPILLAR 631 | - | TRACTOR | - | - 631 | - |
| CATERPILLAR 633 | - | TRACTOR | - | - 633 | - |
| CATERPILLAR 85D | - | TRACTOR | - | - 85D | - |
| DEMAG H 121 | - | EXCAVATOR TRACKED | - | CATERPILLAR 3412 DITA | - |
| DEMAG H 65 | - | EXCAVATOR TRACKED | - | CATERPILLAR 3406 DITA | - |
| DEMAG H 71 | - | EXCAVATOR TRACKED | - | CATERPILLAR 3406 | - |
| DEMAG H 85 | - | EXCAVATOR TRACKED | - | CATERPILLAR 3408 DITA | - |
| DRILTECH D25KII | - | DRILLING EQUIPMENT | - | CATERPILLAR 3406 | - |
| DRILTECH D40K | - | DRILLING EQUIPMENT | - | CATERPILLAR 3406 | - |
| DRILTECH D40KII | - | DRILLING EQUIPMENT | - | CATERPILLAR 3408 | - |
| DRILTECH D50KII | - | DRILLING EQUIPMENT | - | CATERPILLAR 3408 | - |
| DRILTECH D60KII | - | DRILLING EQUIPMENT | - | CATERPILLAR 3408 | - |
| DRILTECH D80K | - | DRILLING EQUIPMENT | - | CATERPILLAR 3408 | - |
| DRILTECH DHII | - | DRILLING EQUIPMENT | - | CATERPILLAR 3406 | - |
| FODEN S104 | 1988 | TRUCK | - | CATERPILLAR 3406B ATAAC | - |
| FODEN S106 | 1988 | TRUCK | - | CATERPILLAR 3406B ATAAC | - |
| FODEN S108 | 1988 | TRUCK | - | CATERPILLAR 3406B ATAAC | - |
| FREIGHTLINER 120 | - | TRUCK | - | CATERPILLAR 3406TA | - |
| GMC 9502 | - | TRUCK | - | CATERPILLAR 3406 | - |
| GMC D9K042 | - | TRUCK | - | CATERPILLAR 3406 | - |
| GMC D9K064 | - | TRUCK | - | CATERPILLAR 3406 | - |
| GMC D9L042 | - | TRUCK | - | CATERPILLAR 3406 | - |
| GMC D9L064 | - | TRUCK | - | CATERPILLAR 3406 | - |
| GMC J9C064 | - | TRUCK | - | CATERPILLAR 3406 | - |
| GMC N9F064 | - | TRUCK | - | CATERPILLAR 3406 | - |
| HOBART BSS375 | - | TRENCHER | - | CATERPILLAR 3406 | - |
| INGERSOLL RAND XHP900WCAT | - | COMPRESSOR | - | CATERPILLAR 3406B | - |
| INTERNATIONAL 9000 SERIES | - | TRUCK | - | CATERPILLAR 3406TA | - |
| KENWORTH 357 | - | TRUCK | - | CATERPILLAR 3406TA | - |
| KENWORTH 362 | - | TRUCK | - | CATERPILLAR 3406TA | - |
| KENWORTH C500 | - | TRUCK | - | CATERPILLAR 3406TA | - |
| KENWORTH C500 | - | TRUCK | - | CATERPILLAR 3406 | - |
| KENWORTH K100 | - | TRUCK | - | CATERPILLAR 3406 | - |
| KENWORTH K100 | - | TRUCK | - | CATERPILLAR 3408 | - |
| KENWORTH K100E | - | TRUCK | - | CATERPILLAR 3408 | - |
| KENWORTH K100E | - | TRUCK | - | CATERPILLAR 3406 | - |
| KENWORTH LW924 | - | TRUCK | - | CATERPILLAR 3406T | - |
| KENWORTH T450A | - | TRUCK | - | CATERPILLAR 3406TA | - |
| KENWORTH T600 | - | TRUCK | - | CATERPILLAR 3406TA | - |
| KENWORTH T600A | - | TRUCK | - | CATERPILLAR 3406E | - |
| KENWORTH T800 | - | TRUCK | - | CATERPILLAR 3406TA | - |
| KENWORTH T800 | - | TRUCK | - | CATERPILLAR 3406B | - |
| KENWORTH W900 | - | TRUCK | - | CATERPILLAR 3406TA | - |
| KENWORTH W900 | - | TRUCK | - | CATERPILLAR 3406 | - |
| KENWORTH W900 | - | TRUCK | - | CATERPILLAR 3408 | - |
| KENWORTH W900B | - | TRUCK | - | CATERPILLAR 3408 | - |
| KENWORTH W900B | - | TRUCK | - | CATERPILLAR 3406 | - |
| MANITOWOC 3900 | - | DRAGLINE | - | CATERPILLAR 3406 | - |
| MANITOWOC 3900W SERIES 2 | - | DRAGLINE | - | CATERPILLAR 3406 | - |
| MANITOWOC 4000W | - | DRAGLINE | - | CATERPILLAR 3406 | - |
| MANITOWOC 4599 SERIES 4 | - | DRAGLINE | - | CATERPILLAR 3412 | - |
| PETERBILT 357 | - | TRUCK | - | CATERPILLAR 3406TA | - |
| PETERBILT 362 | - | TRUCK | - | CATERPILLAR 3406TA | - |
| PETERBILT 377A | - | TRUCK | - | CATERPILLAR 3406TA | - |
| PETERBILT 377E | - | TRUCK | - | CATERPILLAR 3406TA | - |
| PETERBILT 379 | - | TRUCK | - | CATERPILLAR 3406TA | - |
| PUTZMEISTER BSA2100D | - | CONCRETE PUMP | - | CATERPILLAR 3406 DITA | - |
| RAYGO SK40 | - | DRILLING EQUIPMENT | - | CATERPILLAR 3406 | - |
| STEIGER CM360 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER COUGAR | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER COUGAR IV CM280 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER COUGAR ST280 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER CP1325 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER CP1360 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER CP1400 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER CS280 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER PANTHER 1000 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER PANTHER 1000 | - | TRACTOR | - | - PANTHER 1000 | - |
| STEIGER PANTHER III ST325 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER PANTHER IV CM325 | - | TRACTOR | - | CATERPILLAR 3406 | - |
| STEIGER ST449 | - | TRACTOR | - | CATERPILLAR 3408 | - |
| STEIGER TIGER ST450 | - | TRACTOR | - | CATERPILLAR 3408 | - |
| VERMEER T955 | - | TRENCHER | - | - T955 | - |
| WIRTGEN 2600SM | - | FINISHER ROAD | - | CATERPILLAR 3412 DITA | - |
| WIRTGEN SF1900VC | - | FINISHER ROAD | - | CATERPILLAR 3406 DITA | - |
| WIRTGEN SF200VC | - | FINISHER ROAD | - | CATERPILLAR 3406 DITA | - |
| WIRTGEN SF2200VC | - | FINISHER ROAD | - | CATERPILLAR 3412 DITA | - |
