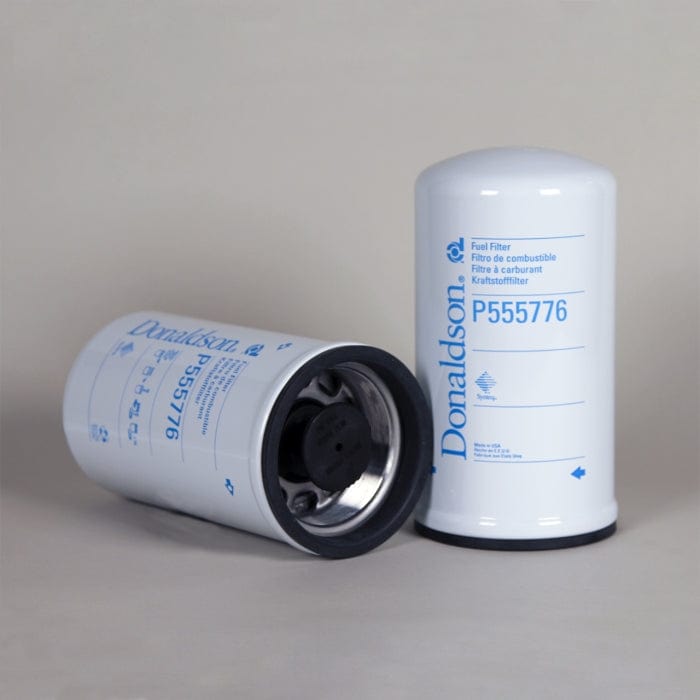

Fuel Filter, Spin-On - Donaldson P555776
Fuel Filter, Spin-On - Donaldson P555776
Regular price
Ā£51.02
Regular price
Sale price
Ā£51.02
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P555776
Fuel Filter, Spin-On| Outer Diameter | 4.65 inch (118 mm) |
| Thread Size | M90 x 2 |
| Length | 8.82 inch (224 mm) |
| Gasket OD | 4.69 inch (119 mm) |
| Gasket ID | 4.02 inch (102 mm) |
| Efficiency 99% | 5 micron |
| Type | Secondary |
| Style | Spin-On |
| Media Type | Synteq |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 118 mm (4.65 inch)
- Thread Size: M90 x 2
- Length: 224 mm (8.82 inch)
- Gasket OD: 119 mm (4.69 inch)
- Gasket ID: 102 mm (4.02 inch)
- Efficiency 99%: 5 micron
- Type: Secondary
- Style: Spin-On
- Media Type: Synteq
Packaged Dimensions
- Packaged Length: 0.38 FT
- Packaged Width: 0.39 FT
- Packaged Height: 0.80 FT
- Packaged Weight: 1.771 kg (3.90 lb)
- Packaged Volume: 0.003 m3 (0.12 ft3)
Other Information
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330969946
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CUMMINS | 4331007 | |
| CUMMINS | 2864993 | |
| CUMMINS | 2893612 | |
| CUMMINS | 3685306 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CUMMINS ISX11.9 | - | ENGINE | - | - ISX11.9 | - |
| CUMMINS ISX15 | - | ENGINE | TIER 4 | - ISX15 | - |
| FREIGHTLINER ARGOSY | - | TRUCK | - | CUMMINS ISX15 | - |
| FREIGHTLINER ARGOSY | - | TRUCK | - | CUMMINS ISXE5 | - |
| FREIGHTLINER CASCADIA | - | TRUCK | - | CUMMINS ISX15 | - |
| FREIGHTLINER CORONADO | - | TRUCK | - | CUMMINS ISXE5 | - |
| FREIGHTLINER CORONADO | - | TRUCK | - | CUMMINS ISX15 | - |
| INTERNATIONAL 9800 | - | TRUCK | - | CUMMINS ISX500 | - |
| INTERNATIONAL LT | - | TRUCK | LT SERIES | CUMMINS X15 | EURO V |
| INTERNATIONAL PROSTAR | - | TRUCK | - | CUMMINS ISX15-450 | - |
| INTERNATIONAL PROSTAR | - | TRUCK | - | CUMMINS ISX15-500 | - |
| KENWORTH C509 | - | TRUCK | - | CUMMINS ISXE5 | - |
| KENWORTH K200 | - | TRUCK | - | CUMMINS ISXE5 | - |
| KENWORTH T409 | - | TRUCK | - | CUMMINS ISXE5 | - |
| KENWORTH T409SAR | - | TRUCK | - | CUMMINS ISXE5 | - |
| KENWORTH T609 | - | TRUCK | - | CUMMINS ISXE5 | - |
| KENWORTH T659 | - | TRUCK | - | CUMMINS ISXE5 | - |
| KENWORTH T6600 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T700 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T800B | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T800W | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T880 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH T909 | - | TRUCK | - | CUMMINS ISXE5 | - |
| KENWORTH W900 | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH W900B | - | TRUCK | - | CUMMINS ISX | - |
| KENWORTH W900L | - | TRUCK | - | CUMMINS ISX | - |
| PETERBILT 357 | - | TRUCK | - | CUMMINS ISX | - |
| VOLVO VN | - | TRUCK | VN SERIES | CUMMINS ISX | - |
| WESTERN STAR TRUCK 4964FXT | - | TRUCK | - | CUMMINS X15 | - |
