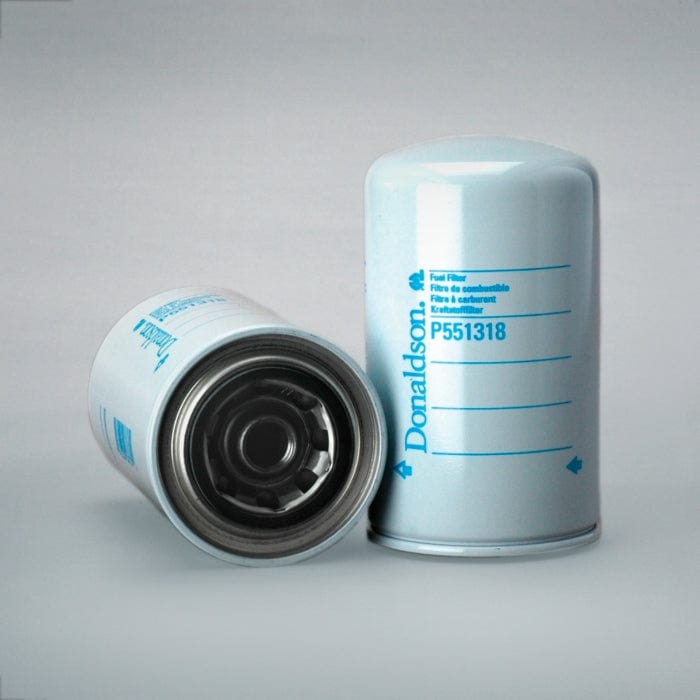

Fuel Filter, Spin-On - Donaldson P551318
Fuel Filter, Spin-On - Donaldson P551318
Regular price
Ā£19.62
Regular price
Sale price
Ā£19.62
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551318
Fuel Filter, Spin-On| Outer Diameter | 4.23 inch (107.5 mm) |
| Thread Size | 7/8-14 UN |
| Length | 7.28 inch (185 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 9 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | NAVISTAR 1822588C1 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 107.5 mm (4.23 inch)
- Thread Size: 7/8-14 UN
- Length: 185 mm (7.28 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 9 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 6.9 bar (100 psi)
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: NAVISTAR 1822588C1
Packaged Dimensions
- Packaged Length: 0.35 FT
- Packaged Width: 0.35 FT
- Packaged Height: 0.62 FT
- Packaged Weight: 0.931 kg (2.05 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 121510
- HTS Code: 8421230090
- UPC Code: 742330087374
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 95403 | |
| BLOUNT | F041795 | |
| CATERPILLAR | 100051229 | |
| DETROIT DIESEL | 23523907 | |
| DETROIT DIESEL | 23531904 | |
| FG WILSON | 10000051229 | |
| FG WILSON | 901243 | |
| GRADALL | 80994021 | |
| INTERNATIONAL | 1822588C1 | |
| JOHN DEERE | F041795 | |
| KOMATSU | 1822588C1 | |
| LOESING | 025159 | |
| LOESING | 25159 | |
| PACCAR | Y05996105 | |
| PERKINS | 26562003 | |
| PERKINS | 26560137 | |
| PREVOST CAR | 19500491 | |
| TAMROCK | 4521277 | |
| TAYLOR | 5597002 | |
| TIMBERJACK | F041795 | |
| UNIVERSAL COACH PARTS | T121083 | |
| VMC | FF551318 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO 9455 | - | TRACTOR | 9000 SERIES | - 9455 | - |
| INTERNATIONAL 2000 SERIES | - | TRUCK | - | - 2000 SERIES | - |
| INTERNATIONAL 4700SCD | - | TRUCK | - | INTERNATIONAL DT466 | - |
| INTERNATIONAL 8000 SERIES | - | TRUCK | - | INTERNATIONAL DT530 | - |
| INTERNATIONAL CXT | - | TRUCK | - | INTERNATIONAL DT466 | - |
| INTERNATIONAL DT466E | - | ENGINE | - | - DT466E | - |
| INTERNATIONAL DURASTAR 4300 | - | TRUCK | - | INTERNATIONAL DT466E | - |
| INTERNATIONAL DURASTAR 4300LP | - | TRUCK | - | INTERNATIONAL DT466E | - |
| INTERNATIONAL DURASTAR 4400 | - | TRUCK | - | INTERNATIONAL DT530 | - |
| INTERNATIONAL DURASTAR 4400 | - | TRUCK | - | INTERNATIONAL DT466HT | - |
| INTERNATIONAL DURASTAR 4400LP | - | TRUCK | - | INTERNATIONAL DT466HT | - |
| INTERNATIONAL PAYSTAR 5000 | - | TRUCK | - | INTERNATIONAL DT530 | - |
| INTERNATIONAL WORKSTAR 7400 | - | TRUCK | - | INTERNATIONAL DT466 | - |
| INTERNATIONAL WORKSTAR 7400 | - | TRUCK | - | INTERNATIONAL DT530 | - |
| TEREX S17E | - | SCRAPER | - | - S17E | - |
| TEREX TS14G | - | SCRAPER | - | CUMMINS QSB | - |
