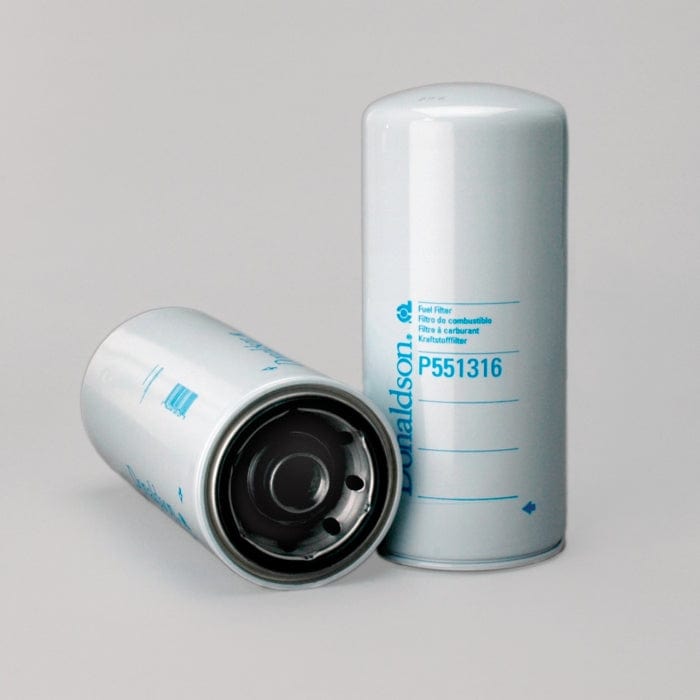

Fuel Filter, Spin-On - Donaldson P551316
Fuel Filter, Spin-On - Donaldson P551316
Regular price
Ā£33.26
Regular price
Sale price
Ā£33.26
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551316
Fuel Filter, Spin-On| Outer Diameter | 5.32 inch (135.2 mm) |
| Thread Size | 1 3/8-16 UN |
| Length | 12.13 inch (308 mm) |
| Gasket OD | 4.35 inch (110.5 mm) |
| Gasket ID | 3.95 inch (100.3 mm) |
| Efficiency 99% | 4 micron |
| Efficiency 99.9% | 5 micron |
| Efficiency Test Std | SAE J1858 |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | CATERPILLAR 1R0755 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 135.2 mm (5.32 inch)
- Thread Size: 1 3/8-16 UN
- Length: 308 mm (12.13 inch)
- Gasket OD: 110.5 mm (4.35 inch)
- Gasket ID: 100.3 mm (3.95 inch)
- Efficiency 99%: 4 micron
- Efficiency 99.9%: 5 micron
- Efficiency Test Std: SAE J1858
- Collapse Burst: 10.3 bar (149 psi)
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: CATERPILLAR 1R0755
Packaged Dimensions
- Packaged Length: 0.132 m (5.28 inch)
- Packaged Width: 0.132 m (5.28 inch)
- Packaged Height: 0.306 m (12.24 inch)
- Packaged Weight: 1.830 kg (4.04 lb)
- Packaged Volume: 0.006 m3 (0.20 ft3)
Other Information
- Country of Origin: Poland
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330087299
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 95685 | |
| BUCYRUS | V013569 | |
| CATERPILLAR | 1R0755 | |
| CATERPILLAR | 3890433 | |
| CHINA LOCAL | STCX020 | |
| EPIROC | 2657899379E9 | |
| KRALINATOR | F498 | |
| SANDVIK | 016641061 | |
| SANDVIK | 61141061 | |
| SANDVIK | 061141061 | |
| TIM | 1R0755 | |
| VMC | FF551316 | |
| WEICHAI | 1001421244 | |
| WEICHAI | 1003297630 | |
| WEICHAI | 1000104483 | |
| WEICHAI | 1004300450 | |
| WEICHAI | 1003877744 | |
| WIRTGEN | 2110145 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| BUCYRUS SKF 11 | - | DRILLING EQUIPMENT | - | - SKF 11 | - |
| CATERPILLAR 16M | - | GRADER | 16 SERIES | CATERPILLAR C13TA ACERT | - |
| CATERPILLAR 345C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 345CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 345D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 345DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 349D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 349D2L | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13TA ACERT | - |
| CATERPILLAR 349DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 3508B | - | ENGINE | - | - 3508B | - |
| CATERPILLAR 3512B | - | ENGINE | - | - 3512B | - |
| CATERPILLAR 3516B | - | ENGINE | - | CATERPILLAR 3516B | - |
| CATERPILLAR 3524B | - | ENGINE | - | - 3524B | - |
| CATERPILLAR 365C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 365CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 374D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 385C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 385CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 385CMHPU | - | POWER UNIT | 300 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 390DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 5130 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR 5130B | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR 5230 | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 5230B | - | EXCAVATOR TRACKED | 5000 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 772 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 773F | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C27TA ACERT | - |
| CATERPILLAR 773G | - | HAUL TRUCK | - | CATERPILLAR C27TAACERT | - |
| CATERPILLAR 775F | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C27TA ACERT | - |
| CATERPILLAR 775G | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C27TA ACERT | - |
| CATERPILLAR 776C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR 776D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508TAE | - |
| CATERPILLAR 777 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR D348 | - |
| CATERPILLAR 777B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR 777C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR 777D | - | HAUL TRUCK | - | CATERPILLAR 3508BEUI | - |
| CATERPILLAR 777D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3508TAE | - |
| CATERPILLAR 777DHAA | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512B | - |
| CATERPILLAR 777F | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C32TA ACERT | - |
| CATERPILLAR 777G | - | HAUL TRUCK | - | CATERPILLAR C32 | - |
| CATERPILLAR 784B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512 | - |
| CATERPILLAR 784C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512TAE | - |
| CATERPILLAR 785 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512TA | - |
| CATERPILLAR 785B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512 | - |
| CATERPILLAR 785C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512BTA | - |
| CATERPILLAR 785D | - | HAUL TRUCK | - | CATERPILLAR 3512C | - |
| CATERPILLAR 785D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3512CTA | - |
| CATERPILLAR 787B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 789 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TA | - |
| CATERPILLAR 789B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 789C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 789D | - | DUMP TRUCK | - | CATERPILLAR 3516 | - |
| CATERPILLAR 793B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516B | - |
| CATERPILLAR 793C | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 793D | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 793F | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C175-16 | - |
| CATERPILLAR 797 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3516TAE | - |
| CATERPILLAR 797B | - | DUMP TRUCK | 700 SERIES | CATERPILLAR 3524B | - |
| CATERPILLAR 797F | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C175-20 | - |
| CATERPILLAR 834H | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 836H | - | COMPACTOR | 800 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 844H | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C27TA ACERT | - |
| CATERPILLAR 844H | - | DOZER WHEELED | - | - 844H | - |
| CATERPILLAR 854G | - | DOZER WHEELED | 800 SERIES | CATERPILLAR 3508TA | - |
| CATERPILLAR 854K | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C32TA ACERT | - |
| CATERPILLAR 972H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C13TA ACERT | - |
| CATERPILLAR 988H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 990H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C27TA ACERT | - |
| CATERPILLAR 992G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3508TA | - |
| CATERPILLAR 992K | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C32 ACERT | - |
| CATERPILLAR 993K | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C32TA ACERT | - |
| CATERPILLAR 994 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3516TA | - |
| CATERPILLAR 994D | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3516TAE | - |
| CATERPILLAR 994F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR 994G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3516BTA | - |
| CATERPILLAR C27 | - | ENGINE | - | - C27 | - |
| CATERPILLAR C32 | - | MARINE ENGINE | - | CATERPILLAR C32 | - |
| CATERPILLAR D10N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3412 | - |
| CATERPILLAR D10R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3412E | - |
| CATERPILLAR D10T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C27 ACERT | - |
| CATERPILLAR D11N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3508 | - |
| CATERPILLAR D11R | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3508B | - |
| CATERPILLAR D11T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C32 ACERT | - |
| CATERPILLAR D9T | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR SPF343 | - | GENERATOR SET | - | - SPF343 | - |
| CATERPILLAR W345C | - | EXCAVATOR WHEELED | W SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR W345CMH | - | MISC EQUIPMENT | - | - W345CMH | - |
| WIRTGEN W 2200 | 2010 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C27 ATAAC | - |
