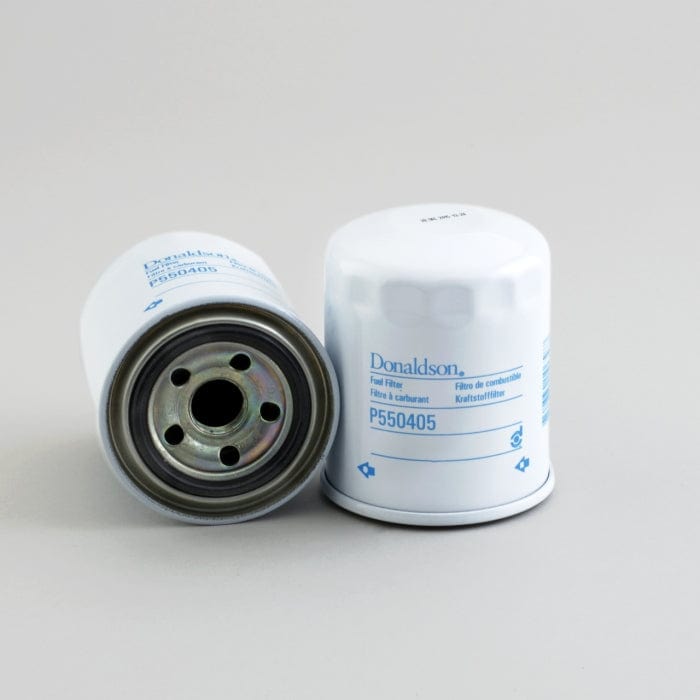

Fuel Filter, Spin-On - Donaldson P550405
Fuel Filter, Spin-On - Donaldson P550405
Regular price
Ā£10.72
Regular price
Sale price
Ā£10.72
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550405
Fuel Filter, Spin-On| Outer Diameter | 3.15 inch (80 mm) |
| Thread Size | M20 x 1.5 |
| Length | 3.98 inch (101.1 mm) |
| Gasket OD | 2.48 inch (62.99 mm) |
| Gasket ID | 1.81 inch (45.97 mm) |
| Efficiency 99% | 40 micron |
| Efficiency Test Std | SAE J1858 |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | HINO 2330478020 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 80 mm (3.15 inch)
- Thread Size: M20 x 1.5
- Length: 101.1 mm (3.98 inch)
- Gasket OD: 62.99 mm (2.48 inch)
- Gasket ID: 45.97 mm (1.81 inch)
- Efficiency 99%: 40 micron
- Efficiency Test Std: SAE J1858
- Collapse Burst: 6.9 bar (100 psi)
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: HINO 2330478020
Packaged Dimensions
- Packaged Length: 0.089 m (3.54 inch)
- Packaged Width: 0.089 m (3.54 inch)
- Packaged Height: 0.108 m (4.33 inch)
- Packaged Weight: 0.390 kg (0.86 lb)
- Packaged Volume: 0.001 m3 (0.03 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-11
- HTS Code: 8421230090
- UPC Code: 742330106587
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN MOTORS CORPORATION | FT8813 | |
| AMERICAN MOTORS CORPORATION | TF1561 | |
| AMERICAN MOTORS CORPORATION | FC18060 | |
| AMERICAN MOTORS CORPORATION | FT1908 | |
| EXMAN | FC18060 | |
| EXMAN | FT8813 | |
| EXMAN | FT1908 | |
| EXMAN | TF1561 | |
| EXXEL PTY LTD | 14240029 | |
| EXXEL PTY LTD | FUL029 | |
| EXXEL PTY LTD | 1424029 | |
| FSA | FF2031 | |
| GUD | Z183 | |
| HINO | 2330478020 | |
| TOYOTA | 2339078020 | |
| TOYOTA | TF1561 | |
| TOYOTA | FF19 | |
| TOYOTA | 2330078020 | |
| TOYOTA | 2330378020 | |
| TOYOTA | 2330478020 | |
| VIC | FC174 | |
| VMC | FF550405 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| HINO 300 SERIES DUTRO XZU410 | 2001 - 2003 | TRUCK | - | HINO J05C 4.62L | - |
| HINO 300 SERIES DUTRO XZU420 | 2001 - 2003 | TRUCK | - | HINO J05C 4.62L | - |
| HINO 300 SERIES DUTRO XZU430M | 2001 - 2003 | TRUCK | - | HINO J05C 4.62L | - |
